Southbend (Middleby) 4602CC-3TR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range – 4 Burners & 36" Thermostatic Griddle
172,000 BTU | Cabinet Base | Stainless Steel ConstructionBuilt for high-volume kitchens that refuse to compromise on versatility or durability, the Southbend Ultimate Restaurant Range combines powerful open-top cooking with a spacious, precision-controlled griddle – all in a rugged, stainless-steel package that holds up to the daily grind of commercial service.
Performance & Convenience
- 4 patented non-clog cast-iron burners, 27,000 BTU each (standing pilot)
- Exclusive wavy cast-iron grates create a continuous cooking surface and let you slide cookware with ease – even 14" stock pots

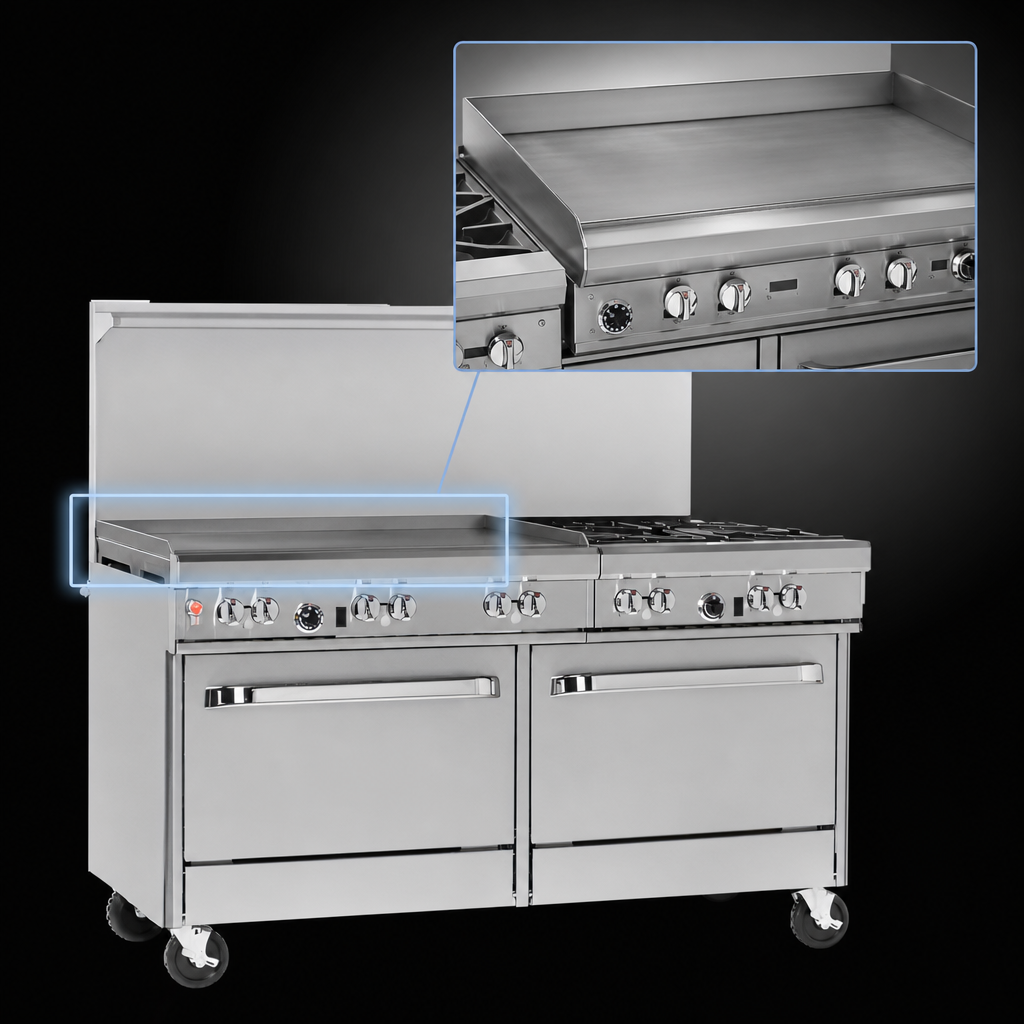

- Right-side 36" griddle with ½" polished steel plate and thermostatic controls for ± precise temperature from 175 °F–550 °F (64,000 BTU)
- Total input: 172,000 BTU (Natural or LP – factory regulator included)
- Front-mounted manual gas shut-off for the entire range
- (2) full stainless cabinet bases for convenient dry storage – doors included at no extra charge
- 22 ½" stainless flue riser with integrated shelf keeps essentials within arm’s reach
- 4" deep stainless front rail doubles as a plating shelf
- 6" stainless, adjustable legs for easy leveling on uneven floors
- cCSAus, CSA Flame, CSA Star & NSF listed for worry-free code compliance
- Backed by a 1-year parts & labor warranty from Southbend
At-a-Glance Specifications
| Overall width | 60 ¾" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cook-top height | 37" (940 mm) |
| Overall height w/ riser | 59 ½" (1511 mm) |
| Open burners | 4 × 27 k BTU non-clog cast iron with standing pilots |
| Griddle section | 36"-wide, ½" polished steel plate, thermostatic, 64 k BTU |
| Total input | 172 k BTU/hr |
| Base configuration | (2) stainless cabinet compartments |
| Gas connection | ¾" NPT (rear); 7" W.C. Natural / 11" W.C. LP minimum supply pressure |
| Construction | Stainless steel front, sides, shelf, rail, cabinets & legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular Factory Options (additional cost)
- 5" or 10" flue riser (low-profile installations)
- All-swivel locking casters with restraining device
- 3 ft–5 ft ¾" quick-disconnect gas hose kit (ANSI Z 21.69 compliant)
- Shelves or mounts for salamanders & cheesemelters
Intended for commercial use only. For best performance, limit oversized (12"+) cookware to the rear burners and install under a properly sized vent hood.
