Southbend (Middleby) 4602CC-3GR Ultimate Gas Ranges
Description
Southbend Ultimate 60″ Restaurant Range – 4 Burners / 36″ Right-Side Griddle
172,000 BTU • Natural Gas • Cabinet BaseBuilt for chefs who refuse to compromise, the Southbend Ultimate 60″ range delivers relentless power, rock-solid durability and the versatility to handle every rush. Four lifetime non-clog burners team up with a full-size 36″ polished steel griddle and two spacious cabinet bases, all wrapped in stainless steel and crowned by a 22-½″ flue riser with handy plate shelf.
Performance & Convenience
- Four 27,000 BTU non-clog cast-iron burners with standing pilots
- Wavy cast-iron grates create a continuous cook surface—slide heavy stockpots with ease
- 36″ wide, ½″ thick polished steel griddle (right side) rated at 64,000 BTU
- Front-mounted master gas shut-off for fast, total-range control
- 22-½″ flue riser with heavy-duty shelf for warming plates & pans
- Dual stainless storage cabinets keep cookware and sheet pans within arm’s reach
- All-stainless front, sides, rail & shelf with 6″ adjustable stainless legs
- Factory-installed ¾″ pressure regulator; 7″ W.C. minimum inlet (Natural Gas)
- Certified cCSAus, CSA Flame, CSA Star & NSF for peace-of-mind compliance
Technical Specifications
| Cooktop configuration | 4 × open burners + 36″ right-side griddle |
|---|---|
| Total input (Natural Gas) | 172,000 BTU/hr |
| Burner output | 27,000 BTU each (standing pilot) |
| Griddle output | 64,000 BTU |
| Cooking surface | 60-¾″ W × 27″ D, 37″ working height |
| Overall dimensions | 60-¾″ W × 34″ D × 59-½″ H (to flue top) |
| Base | Two stainless cabinets (optional doors, no up-charge) |
| Gas connection | ¾″ NPT (rear), factory regulator included |
| Construction | Stainless front, sides, shelf & legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Limited warranty | 1-year parts & labor (see policy for details) |
Why Operators Love the Ultimate Series
- Lifetime non-clog burners slash downtime and service calls
- Wavy grates maximize usable surface and fuel efficiency
- Front gas shut-off simplifies daily start-up and safety checks
- Backed by Middleby—fast parts availability and nationwide service network
Need easy payments? Apply for Middleby Equipment Financing in minutes and keep cash flow strong.

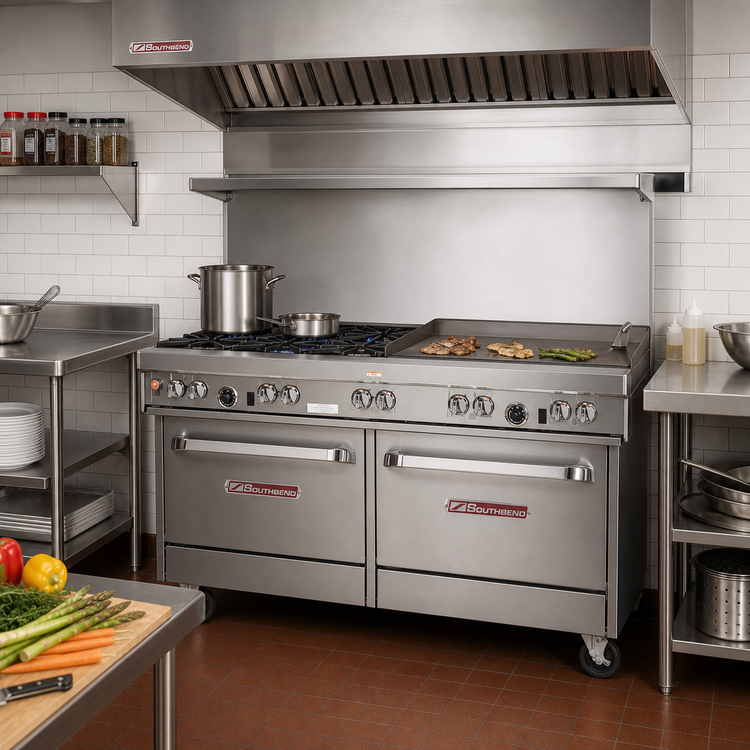

• Unit is intended for commercial kitchens and must be installed under a vented hood.
• Maintain 7″ W.C. (Natural Gas) / 11″ W.C. (LP) inlet pressure.
• For best results, keep cookware larger than 12″ in diameter on the rear burners to prevent overheating the front rail.
• If installing on flooring other than quarry tile, concrete or natural stone, consult factory for approved mounting options.
