Southbend (Middleby) 4602CC-3CR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
4-Burner / 36" Right-Side Charbroiler | Cabinet Base | 204,000 BTUBuilt for high-volume kitchens that refuse to compromise on versatility, the Southbend Ultimate Series 60" range pairs four lifetime-clog-free open burners with a powerful 36" charbroiler – all wrapped in an all-stainless chassis that’s ready for the rush.
Why It Belongs on Your Line
- Flexible cooktop – Simultaneously sauté, sear, boil and char-grill without adding extra equipment.
- Non-clog burner design – Four 27 kBTU cast-iron burners with standing pilots stay lit and stay clean.
- Wavy cast grates – Bowl-shaped surface improves heat transfer and lets you slide cookware anywhere on the top.

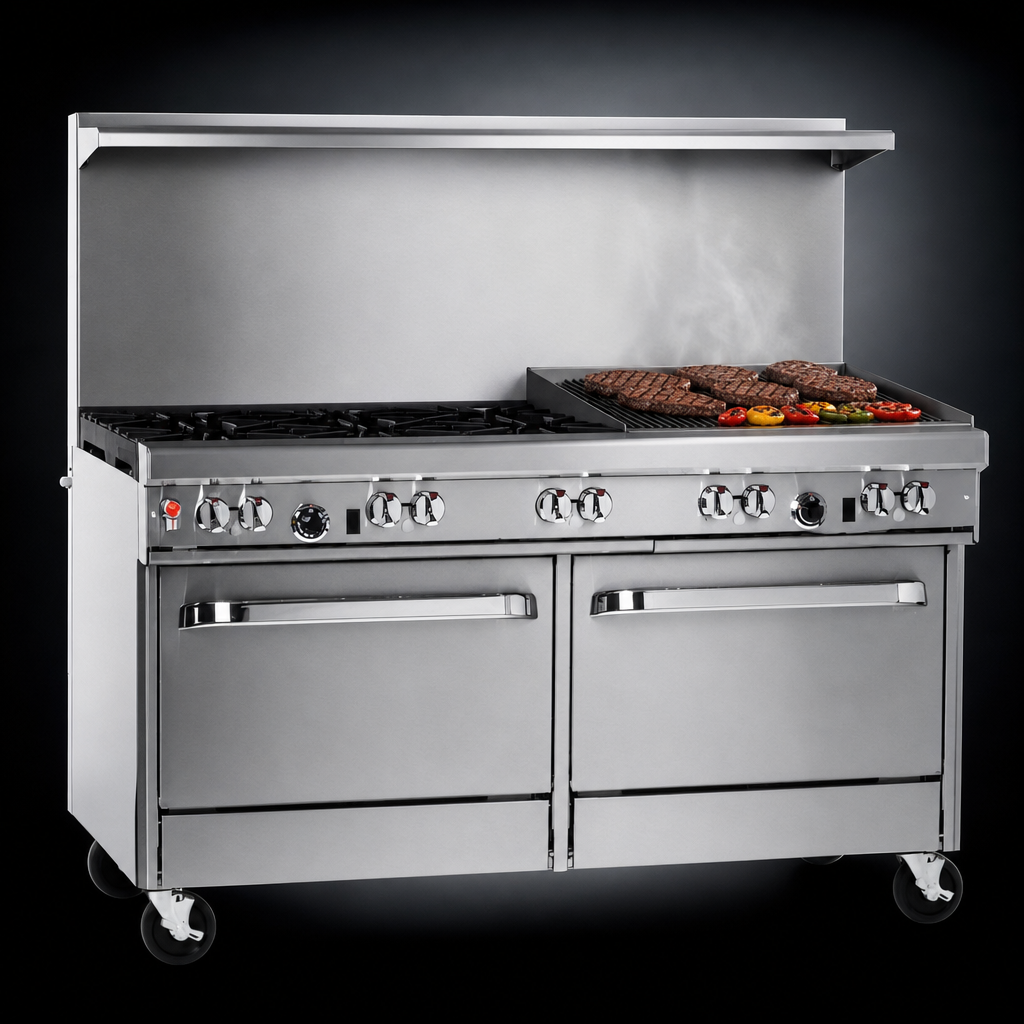

- 36" charbroiler – 96 kBTU of flame-kissed flavor, mounted on the right side for a single-chef workflow.
- Durable inside & out – Stainless steel front, sides, shelf and 6" adjustable legs withstand daily abuse and simplify wipe-downs.
- Front gas shut-off & factory regulator – Quick, safe service access with stable pressure every shift.
- Plenty of storage – Twin stainless cabinets keep sheet pans, utensils or mise en place within arm’s reach.
- Certified & warrantied – CSA & NSF listed and backed by Southbend’s 1-year parts & labor warranty.
Specifications
| Model | Ultimate Series 60" (460 CC configuration) |
|---|---|
| Total BTU | 204,000 BTU/hr (Natural) |
| Open Burners | 4 × 27 kBTU non-clog with wavy grates |
| Charbroiler | 36" right-mount, 96 kBTU cast-iron radiants |
| Cooking Surface | 60-3/4" W × 27" D | 37" working height |
| Exterior Dimensions | 60-3/4" W × 34" D × 59-1/2" H (with 22-1/2" flue riser & shelf) |
| Base | 2 stainless cabinet compartments |
| Gas Connection | 3/4" NPT (left side when charbroiler is right) – 7" W.C. min. NG |
| Ignition | Standing pilot (cooktop & broiler) |
| Construction | Stainless front, sides, shelf & 6" adjustable legs; 4" D front rail |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
What’s Included
- Factory-installed pressure regulator
- (2) removable drip trays under burners
- 22-1/2" flue riser with heavy-duty shelf
- User manual & warranty registration
Popular Accessories (sold separately)
- 3'–5' quick-disconnect hose kits (ANSI Z21.69 compliant)
- 10" or 5" flue risers (without shelf)
- All-swivel casters with front locks
- Shelves for salamander or cheesemelter mounts
- Cabinet doors (no-charge factory option)
Oversized cookware (12" dia.+) should be kept to the rear burners to prevent overheating the front rail. Install under a properly vented hood and maintain 10" clearance on sides & rear for the charbroiler section.
