Southbend (Middleby) 4602CC-2RR Ultimate Gas Ranges
Description

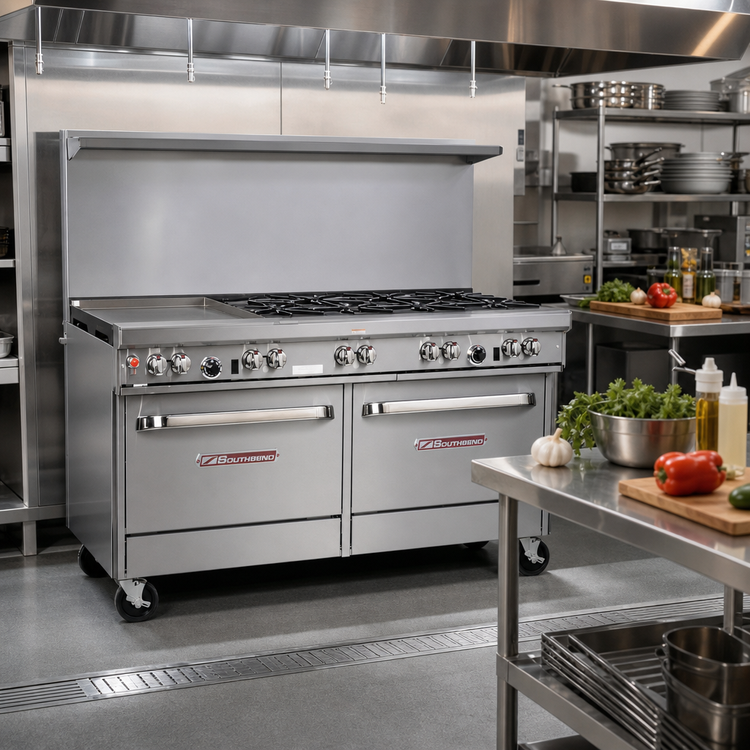

Southbend “Ultimate” 60" Gas Restaurant Range
Model 460 – 6 Open Burners • 24" Raised Griddle/Broiler • Dual Cabinet BaseBuilt to dominate the rush, the Southbend Ultimate 60" range combines heavy-duty construction with the flexibility chefs demand: six lifetime-clog-free burners for high-heat sautéing, a space-saving raised griddle/broiler for all-day versatility, and two spacious stainless cabinet bases for dry storage. One rugged platform—endless cooking possibilities.
Why You’ll Love It

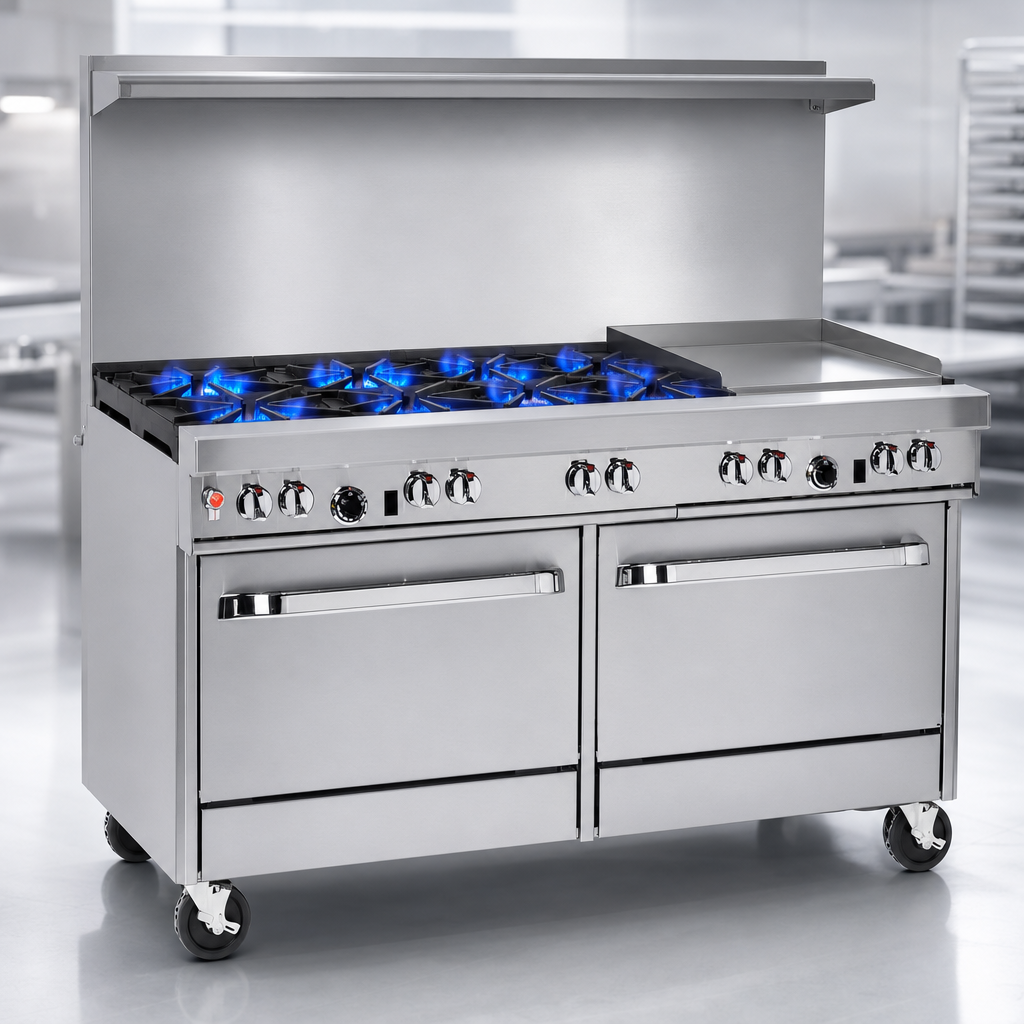

- Lifetime non-clog burners (27 k BTU each) – patented one-piece cast-iron design resists grease buildup and delivers an even flame every time.

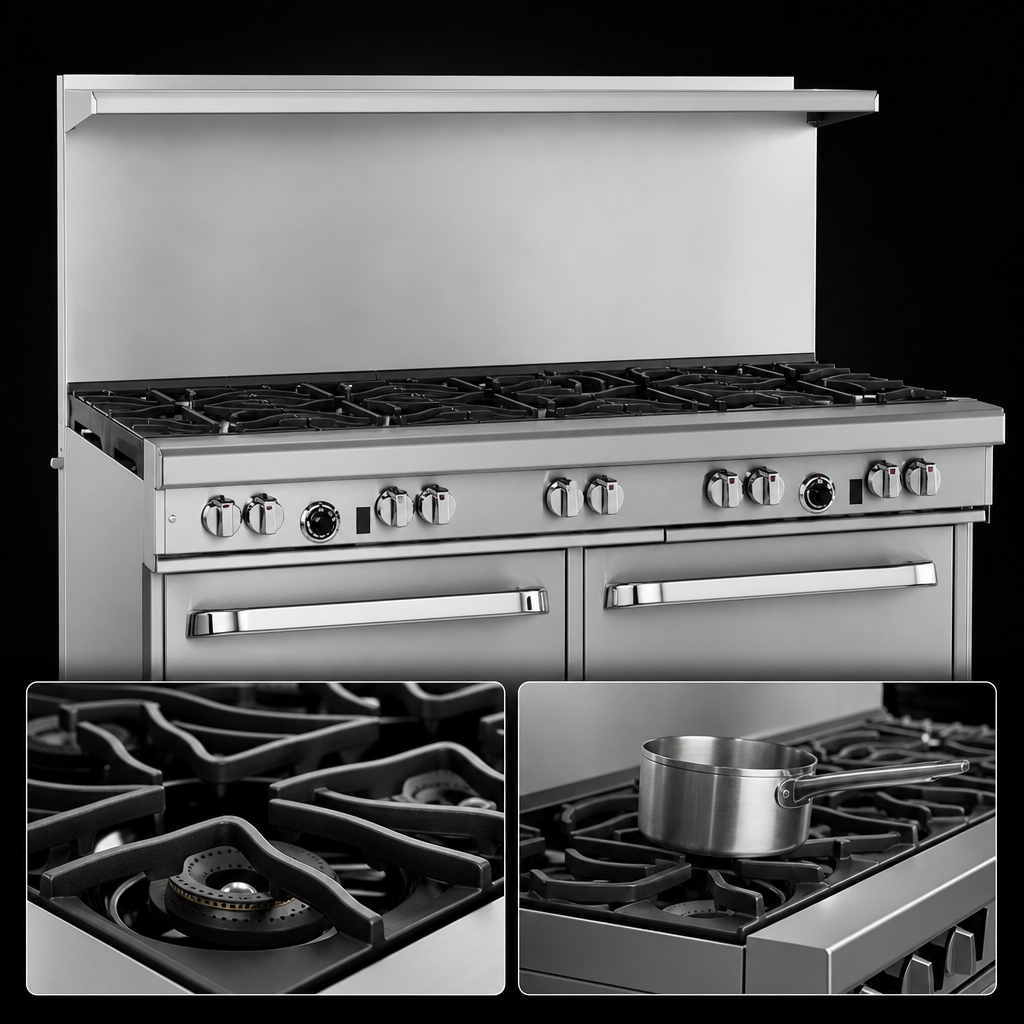

- Wavy, full-surface grates – cast-iron “wave” profile lets you slide pots anywhere on the top without lifting.
- 24" raised griddle/broiler (manual) – ½" polished steel plate for breakfast items by day, roll-out broiler below for steaks and melts by night (combined 64 k BTU output).
- All-stainless exterior – front, sides, high-shelf and 6" adjustable legs stand up to daily commercial abuse and wipe clean fast.
- Front-mounted gas shut-off & factory regulator – makes daily line checks and service a breeze.
- Two storage cabinets – keep sheet pans, hotel pans and smallwares right where you cook; doors included at no extra charge.
- Compact 37" cook-surface height – comfortable ergonomics reduce fatigue on busy shifts.
Power & Productivity
- Total input: 195,500 BTU/hr (Natural Gas)
- Standing pilots on all open burners for instant lighting
- 3⁄4" rear gas connection; factory-installed pressure regulator included
- Recommended minimum gas pressure: 7" W.C. Natural, 11" W.C. LP
- Built for use under a vented commercial hood
Built to Last
- 27"-deep cooking surface holds stockpots up to 14" on the rear grates
- Removable full-width drip trays under the burners speed nightly cleanup
- 22½" flue riser with heavy-duty utility shelf keeps plates and smallwares handy
- 6" stainless legs are adjustable for a perfectly leveled line
At-a-Glance Specifications
| Cooking Width | 60-3/4" (1543 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Cooking Height | 37" (940 mm) |
| Burners | 6 × 27 k BTU non-clog cast-iron, wavy grates |
| Griddle/Broiler | 24" raised, 64 k BTU, ½" polished steel plate |
| Base | 2 × stainless cabinets (doors included) |
| Total BTU Input | 195,500 BTU/hr (Natural Gas) |
| Gas Connection | 3⁄4" rear female NPT |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see warranty statement) |
Intended for commercial use only. If installing on flooring other than quarry tile, cement or natural stone, consult Southbend for approved alternatives.
