Southbend (Middleby) 4602CC-2GR Ultimate Gas Ranges
Description

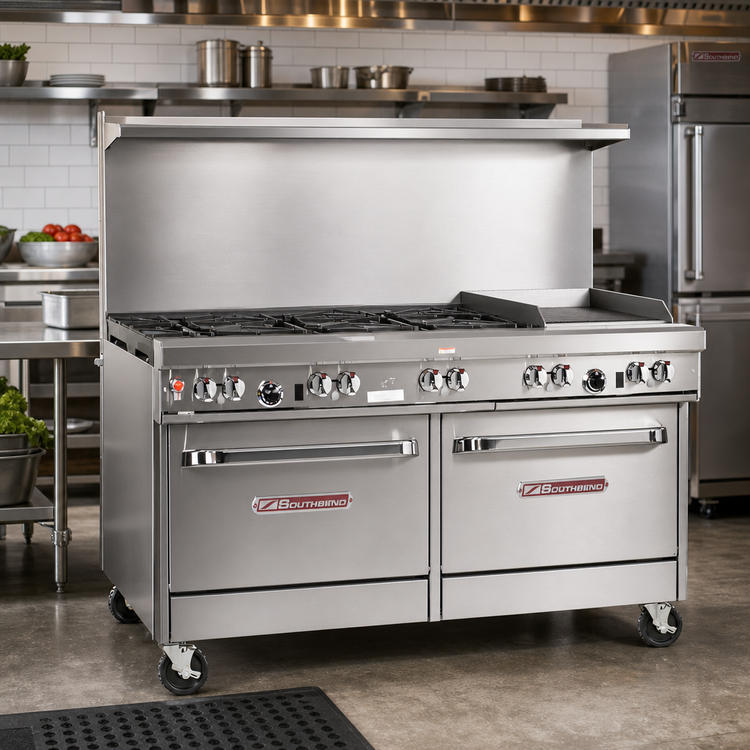

Southbend “Ultimate” 60" Gas Restaurant Range
6 Non-Clog Burners • 24" Right-Side Griddle • Dual Cabinet BaseBuilt for kitchens that run hard from breakfast rush through last call, the Southbend Ultimate Series 60" range combines heavy-duty performance, rock-solid construction and unmatched cooking versatility in one chef-friendly lineup.
Key performance advantages

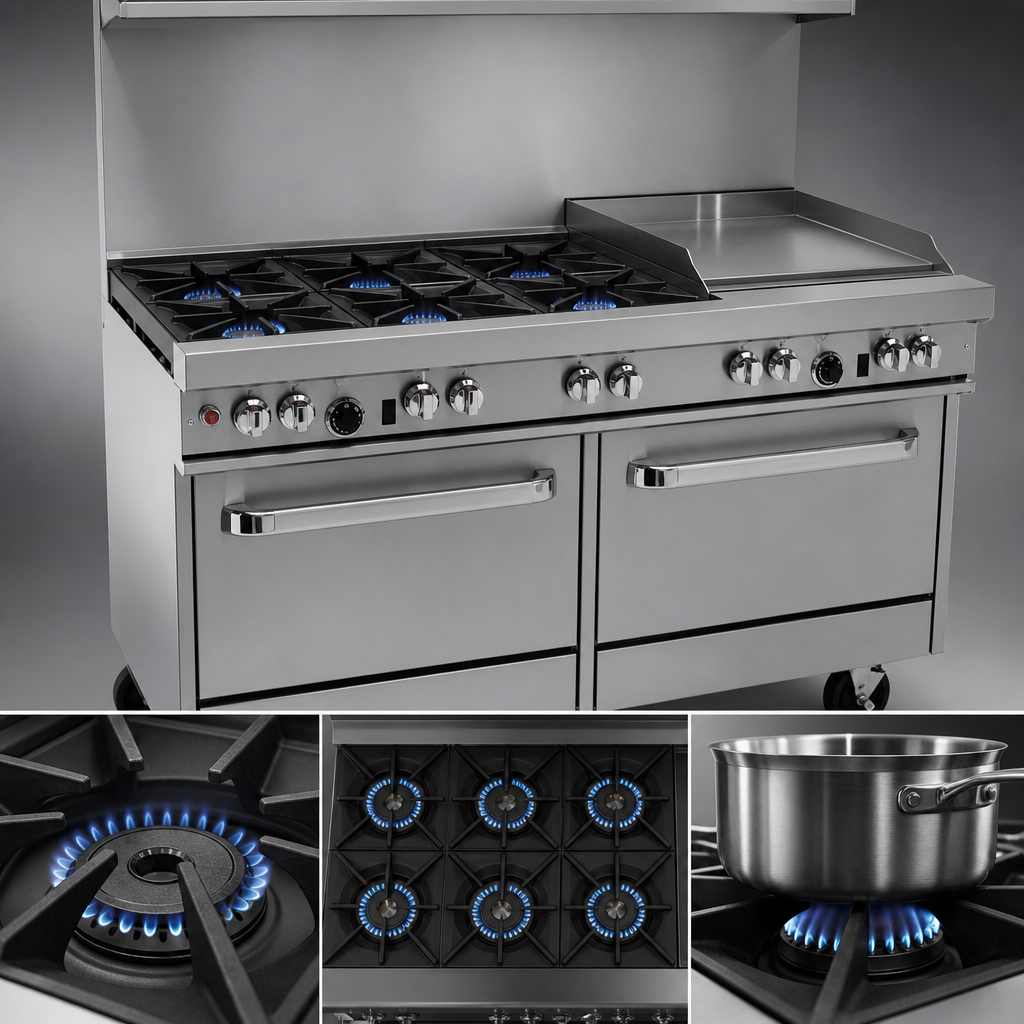

- Six 27,000 BTU patented non-clog cast-iron burners with wavy grates – ideal for everything from 1-qt saucepans to 14" stockpots.

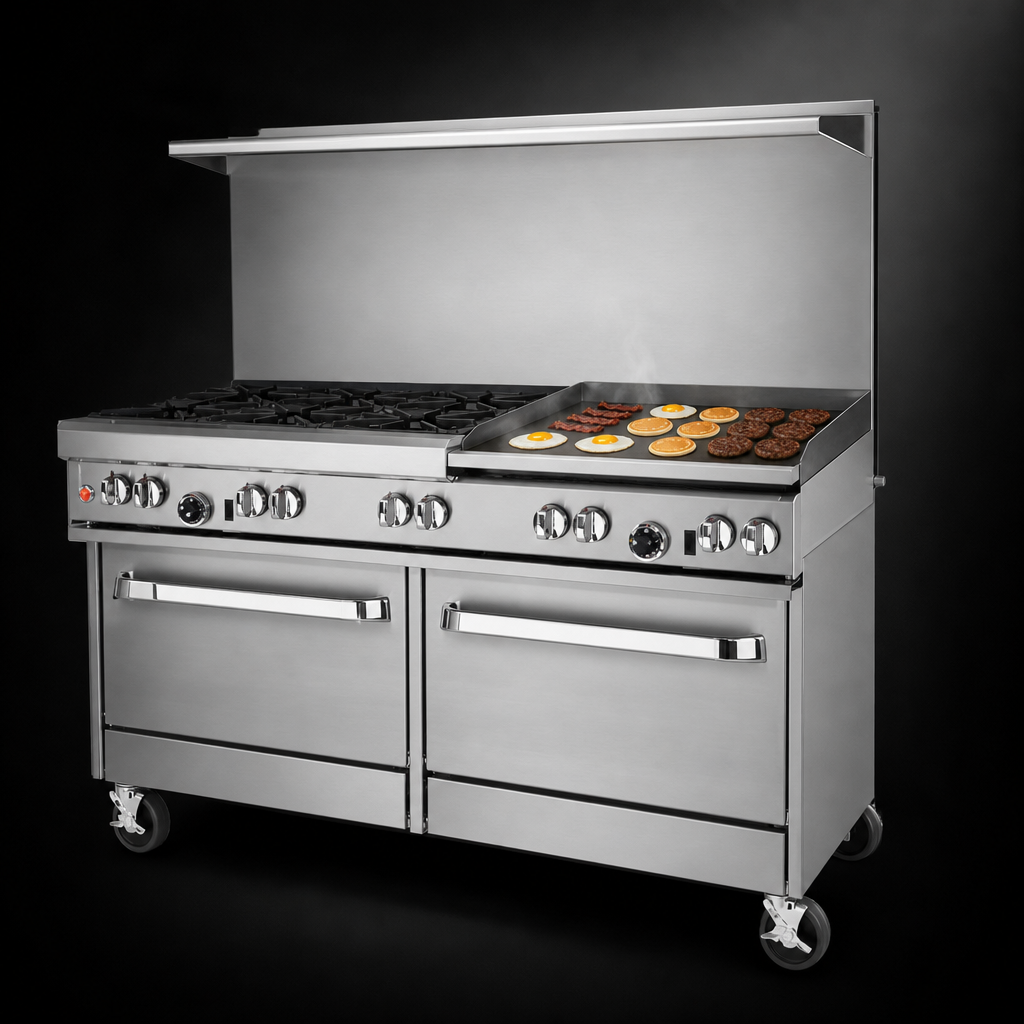

- 1/2" polished steel 24" griddle (right) delivers 48,000 BTU of even, edge-to-edge heat for burgers, pancakes and searing proteins.
- Total input: 210,000 BTU/hr powered by a single ¾" gas connection (factory regulator included).
- Full-width 4" stainless front rail keeps plates and utensils safely away from the flame zone.
- 22-1/2" flue riser with integrated heavy-duty shelf for keeping pans warm and maximising workspace.
- Two stainless cabinet bases (doors available at no charge) give you dry, ventilated storage right where you cook.
- Front-mounted manual gas shut-off for one-motion safety.
- 6" adjustable stainless legs; optional casters ship ready-to-install.
Built to thrive on the line
- All-stainless front, sides, shelf and flue for easy wipe-down and corrosion resistance.
- Removable, one-piece cast-iron wavy grates simplify cleaning and let you slide cookware across the entire top.
- Two removable extra-wide drip trays catch grease before it catches you.
- Standing pilots for open burners mean instant ignition without electronics.
Technical specifications
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 1⁄2" (572 mm) |
| Total BTU input | 210,000 BTU/hr (natural gas) |
| Open burners | 6 × 27,000 BTU non-clog cast-iron |
| Griddle | 24" right-side, 48,000 BTU, 1/2" smooth steel plate |
| Gas connection | ¾" NPT female, min. supply pressure 7" W.C. (natural) |
| Base configuration | Dual stainless cabinet (CC) |
| Standard legs | 6" stainless, height-adjustable |
| Shipping weight | Approx. 1,075 lb (488 kg) |
| Warranty | 1-year limited parts & labour |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Who is it for?
- High-volume restaurants seeking a single platform for sauté, saucepan work, searing and flat-top production.
- Chef-driven kitchens that need rugged reliability without compromising finesse or temperature control.
- Operators looking for industry-leading build quality backed by Middleby’s nationwide service network.
Intended for commercial use under a properly sized ventilation hood. For installations on floors other than quarry tile, or when using oversized cookware, please refer to Southbend’s installation guidelines.
