Southbend (Middleby) 4602CC-2CR Ultimate Gas Ranges
Description

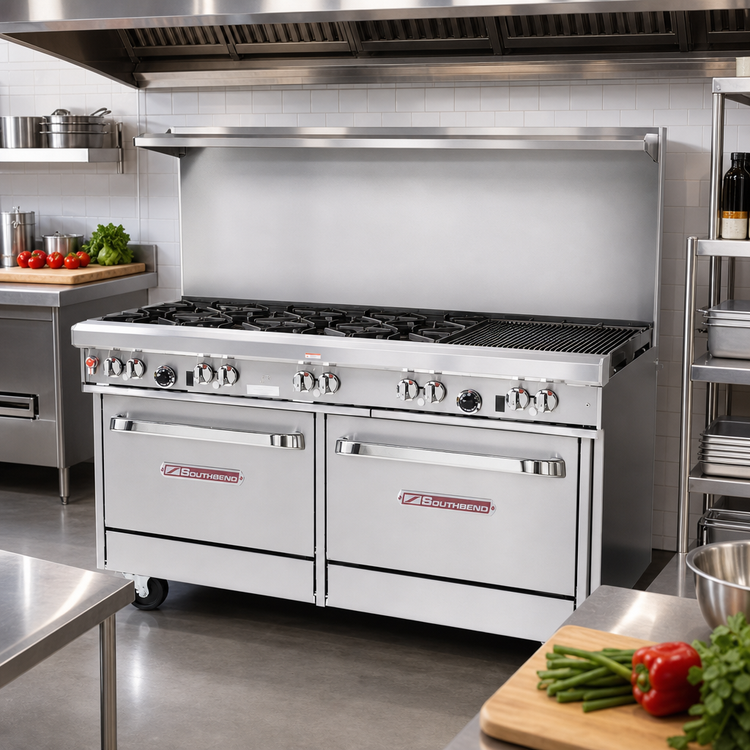

Southbend “Ultimate” 60" Restaurant Range
6 Non-Clog Burners • 24" Charbroiler (Right) • Cabinet BaseBuilt for kitchens that demand extreme versatility and rugged dependability, the Southbend Ultimate Range packs a powerful 226,000 BTU punch into a space-saving 60 inch footprint. Sear, sauté, charbroil and simmer – all on one stainless-steel workhorse that carries the trusted CSA & NSF marks.
Why You’ll Love It

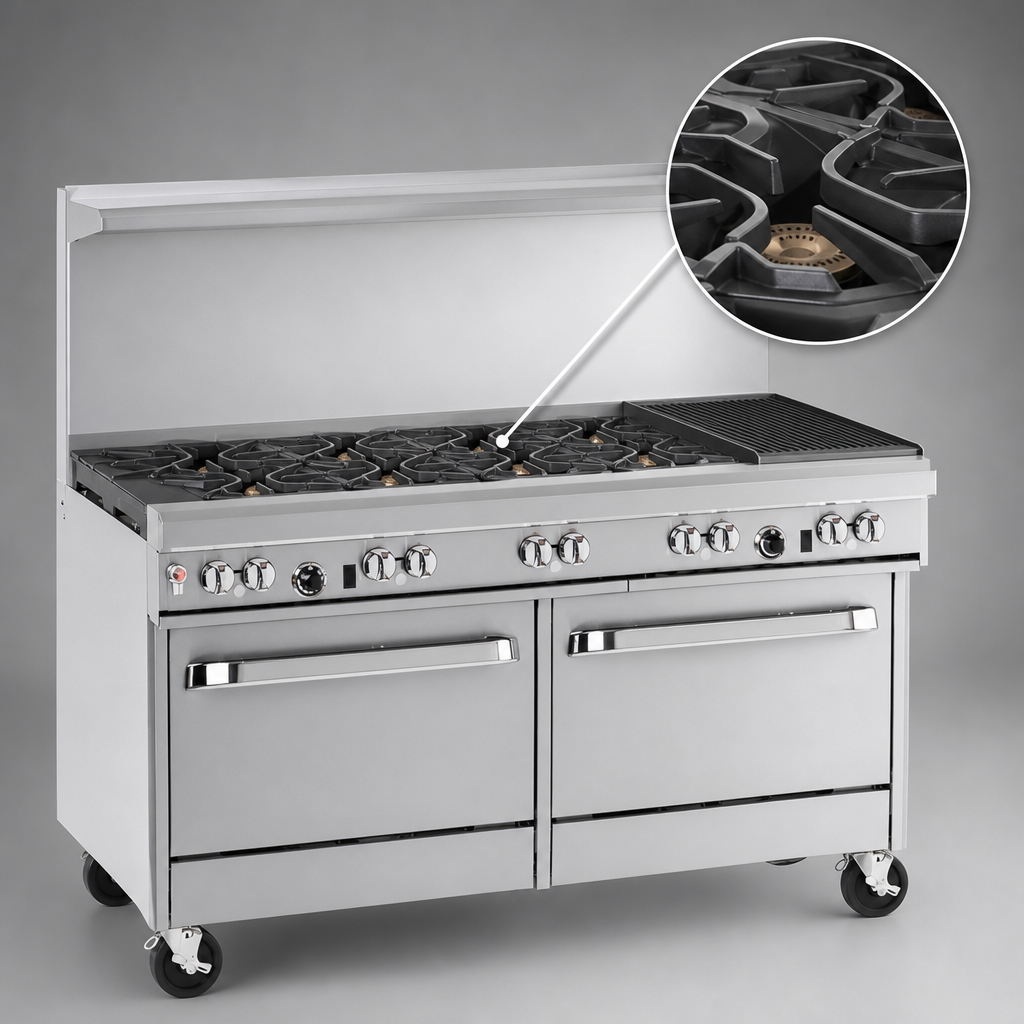

- Six 27,000 BTU lifetime non-clog cast-iron burners with wavy grates for superior pan stability and even heat.
- Right-side 24" charbroiler (64,000 BTU) with rugged cast-iron radiants for steak-house quality marks.
- Heavy-duty 22½" flue riser & integrated shelf keeps cookware and spices close at hand.
- Two full-width stainless cabinet bases provide dry storage while keeping the footprint compact.
- Front-mounted manual gas shut-off for quick, one-touch control of the entire range.
- All-stainless front, sides and 4" rail stand up to the daily grind and wipe clean fast.
- 6" adjustable stainless legs for easy leveling on uneven floors.
- Standing pilots for open burners & charbroiler – always ready when the rush hits.
- Factory-installed pressure regulator & ¾" rear gas connection streamline installation.
- Backed by Southbend’s 1-year parts & labor warranty and 125+ years of innovation.
At-a-Glance Specs
| Overall Width | 60.75" (1543 mm) |
|---|---|
| Overall Depth | 34.00" (864 mm) |
| Cooking Surface Height | 37.00" (940 mm) |
| Burners | 6 × 27,000 BTU non-clog (wavy grates) |
| Charbroiler | 24" right-side, 64,000 BTU |
| Total Input | 226,000 BTU/hr (Natural or LP) |
| Base Configuration | (2) Stainless cabinets, open storage (doors available at no charge) |
| Flue Riser | 22.5" with heavy-duty utensil shelf |
| Gas Connection | ¾" NPT female (rear) |
| Construction | Stainless steel front, sides & shelf; cast-iron grates & burners |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Warranty tab for details) |
Installation Notes
- Minimum gas supply pressure: 7" W.C. (Natural) or 11" W.C. (LP).
- Install under a properly sized, code-compliant vent hood.
- 10" rear & side clearance required from combustible construction when using the charbroiler.
- If casters are used, a restraining device must be installed to prevent undue strain on the gas hose.
Oversized cookware (12"+ diameter) should be used on the rear burners only to prevent excess heat on the front rail.
