Southbend (Middleby)  |  Ultimate  |  SKU: 4602AD-7R

Southbend (Middleby) 4602AD-7R Ultimate Gas Ranges

$15,283.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

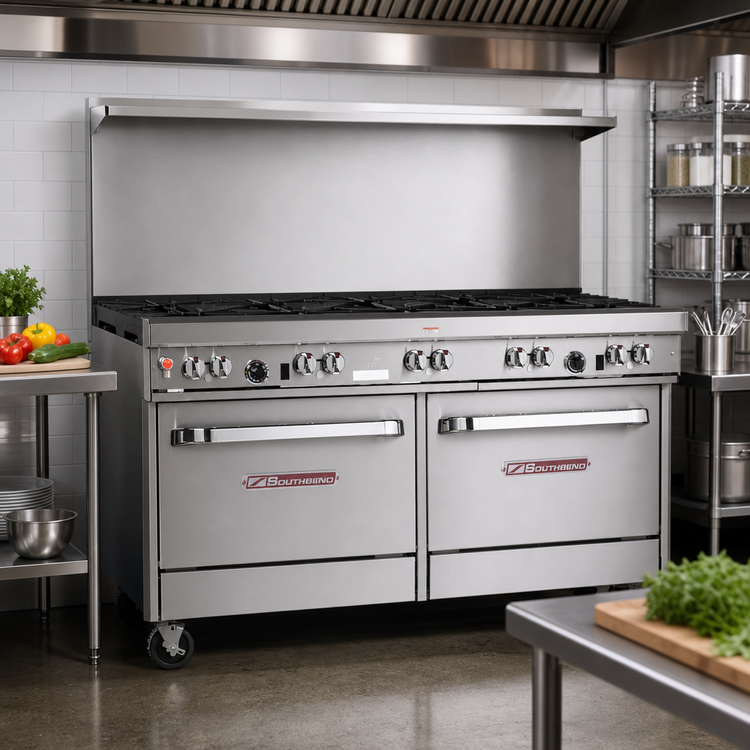

Southbend Ultimate 60" Gas Restaurant Range

4 Non-Clog Burners with Wavy Grates  •  4 Pyromax Burners  •  Standard + Convection Ovens

Built for culinary teams that refuse to compromise, the Southbend Ultimate 60" Range marries precise simmer control with blistering hot output in a single, stainless-steel workhorse. Eight open burners, dual baking cavities, and a heavy-duty 22-½" flue riser shelf give chefs the power and prep space they need to keep tickets moving in high-volume kitchens.

Why You’ll Love It

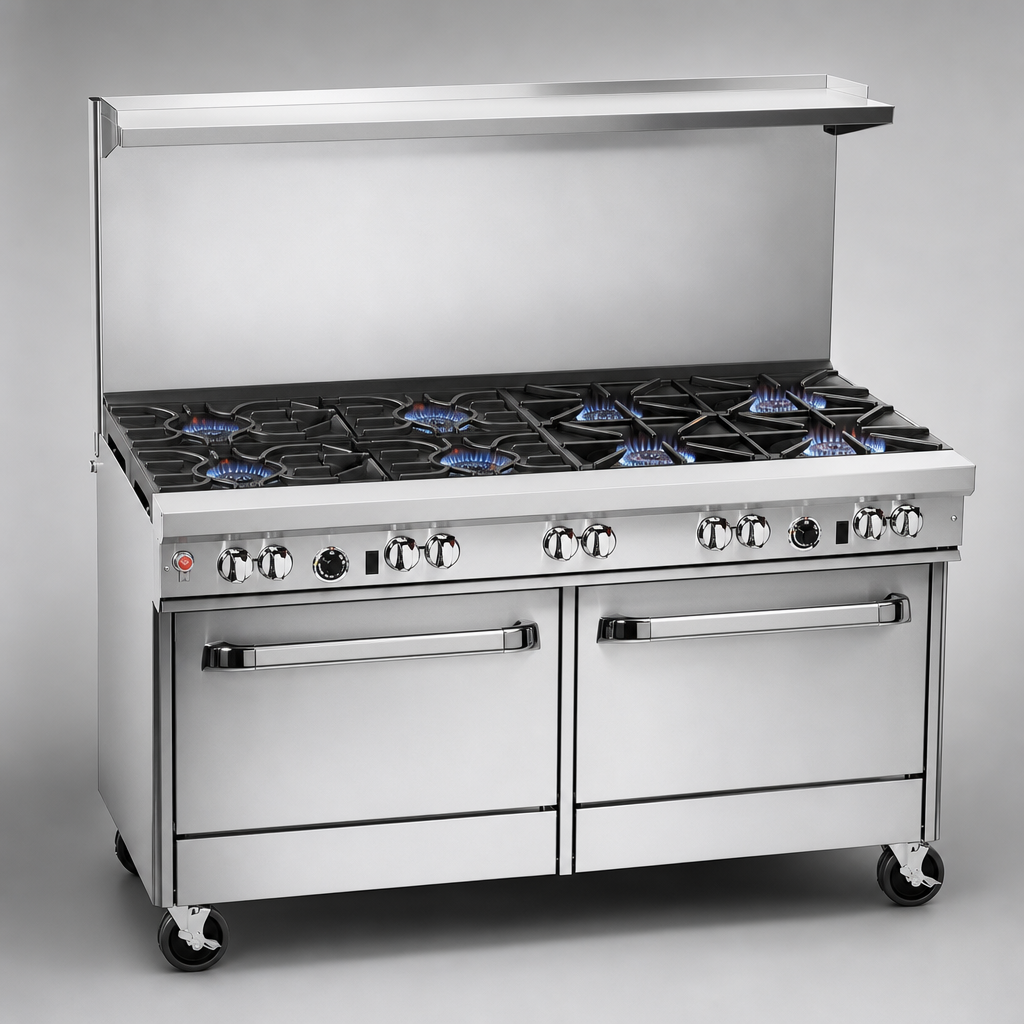

  • 8-burner power top: four 27,000 BTU non-clog burners (with efficiency-boosting wavy grates) plus four 40,000 BTU Pyromax burners for rapid boil & sear.
  • Total input: 345,000 BTU (Natural Gas) with factory-installed regulator and front-mounted master gas shut-off.
  • Battery-spark ignition on both ovens—no dedicated electrical outlet needed for lighting.

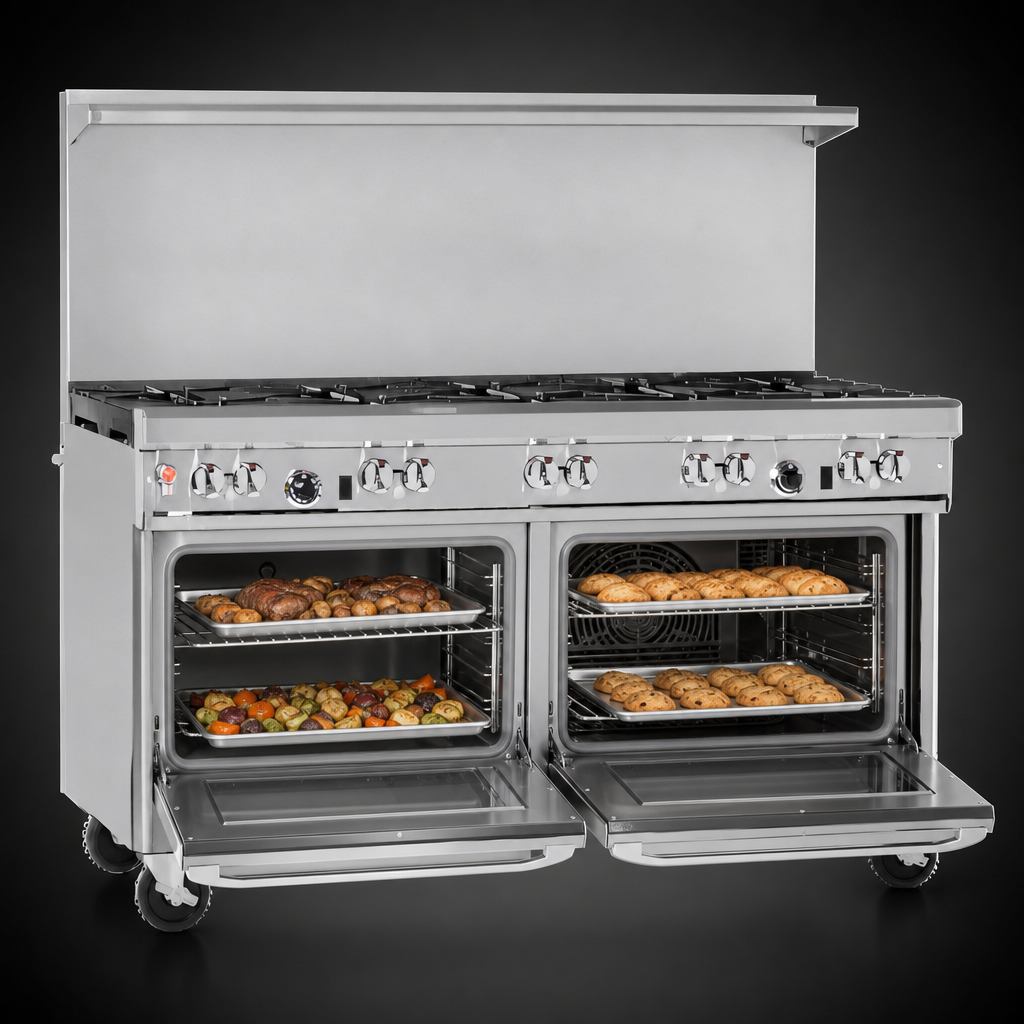

  • Left standard oven (45,000 BTU) + right convection oven (32,000 BTU, ½ HP fan) handle everything from sheet-pan roasts to delicate pastries.
  • Four chrome racks included (1 standard / 3 convection) with multi-position slide rails.
  • 22-½" stainless flue riser with landing shelf adds convenient plating or pan-storage space.
  • All-stainless front, sides, riser shelf and 6" adjustable legs for long-lasting, easy-clean durability.
  • CSA & NSF listed; covered by a 1-year parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specs
Overall width 60 ¾ in  (1543 mm)
Overall depth 34 in  (864 mm)
Cooking surface height 37 in  (940 mm)
Height with flue riser 59 ½ in  (1511 mm)
Open-top burners 4 × 27 k BTU non-clog (wavy grate) + 4 × 40 k BTU Pyromax
Oven outputs Standard 45 k BTU • Convection 32 k BTU
Total input 345,000 BTU/hr (Natural Gas)
Gas connection ¾" NPT, min. 7" W.C. (NG) / 11" W.C. (LP)
Electrical (convection fan) 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & plug
Oven cavities (H × W × D) Standard: 14" × 26" × 26.5" • Convection: 14" × 26" × 24"
Rack capacity 4 chrome racks included
Shipping weight ≈ 1075 lb (488 kg)
Certifications CSA, NSF
Commercial use only: Install under a vented hood and follow local codes. Avoid letting cookware overhang the front rail to prevent heat damage to controls. Oversized vessels (12" +) should be kept to the rear burners.

One-year limited parts & labor warranty. Full terms available on the Southbend service portal.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

43.6in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Top

(8) open burners

Base

(1) standard oven, (1) convection oven

Specifications

Ultimate Restaurant Range, gas, 60", (4) non-clog burners, wavy grates, (4) pyromax burners right, standing pilot, (1) standard oven with battery spark ignition, (1) convection oven with battery spark ignition, includes (4) racks total, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 345,000 BTU, CSA, NSF
