Southbend (Middleby) 4602AD-5R Ultimate Gas Ranges
Description

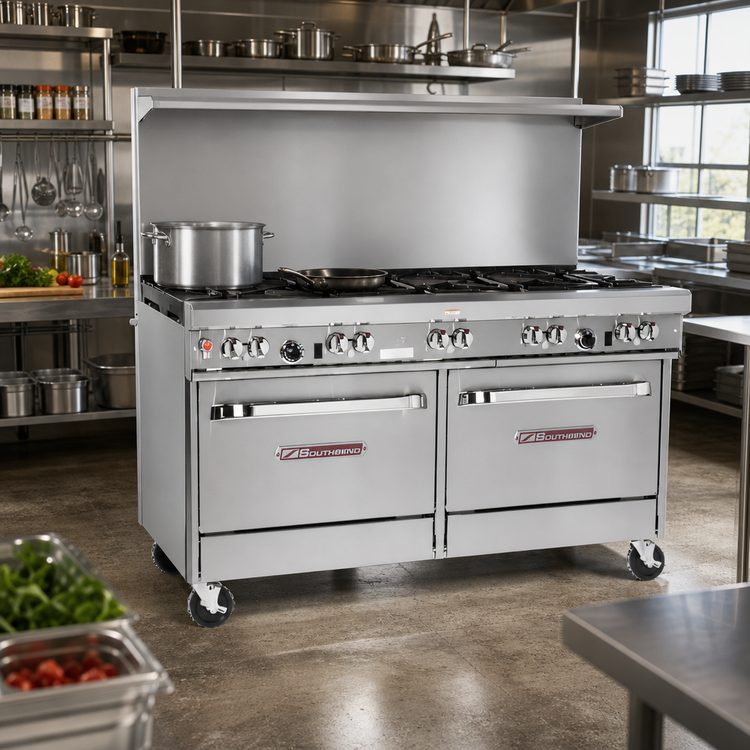

Southbend “Ultimate” 60" Gas Restaurant Range

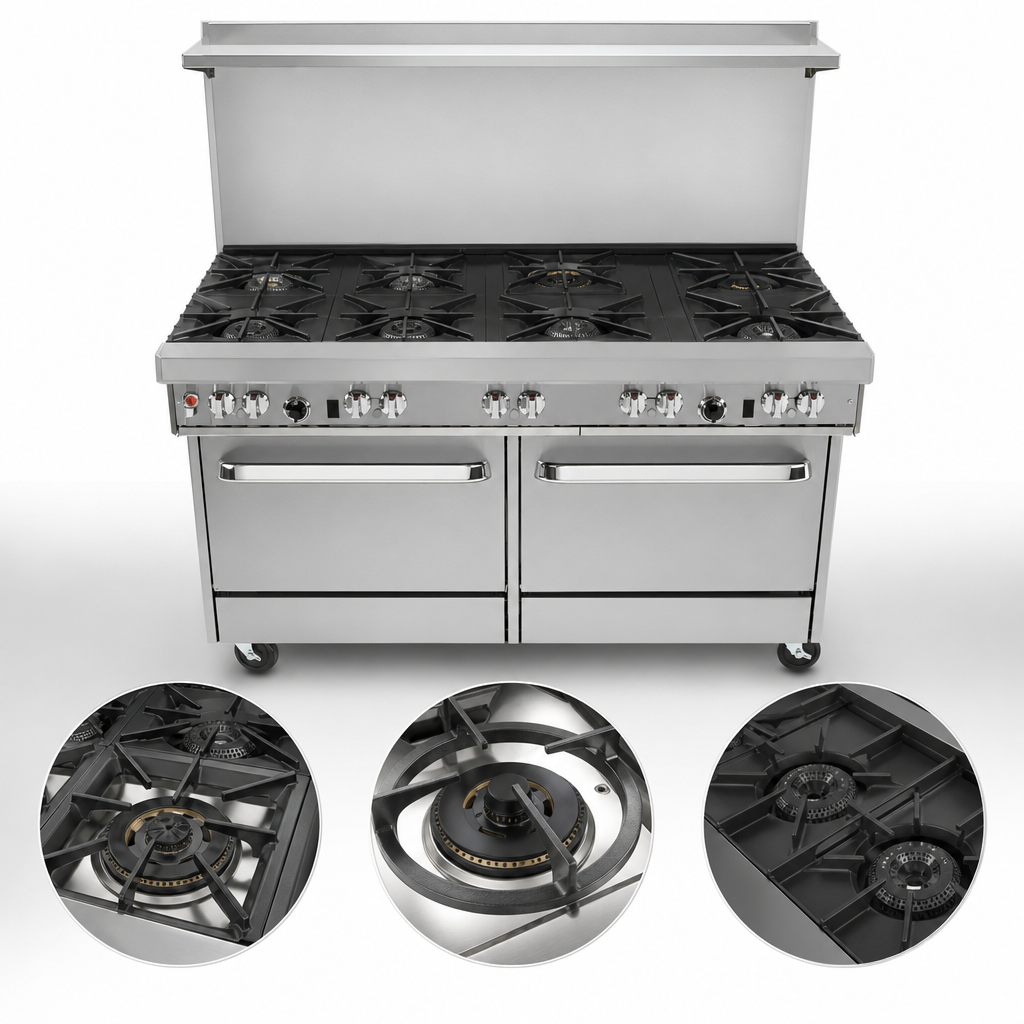

3/2/4 Burner Top • Standard + Convection Ovens • 364,000 BTUOne footprint, endless possibilities. Southbend’s Ultimate Series combines nine high-performance open burners, two full-size ovens, and rugged stainless-steel construction to give busy kitchens the versatility they need and the durability they demand.
Key Features
- 60-3/4" wide commercial gas range with 4" deep front rail
- (3) non-clog burners – front right
- (2) 40 k BTU Pyromax™ burners – rear right (high-output wok/boil)
- (4) non-clog burners – entire left section

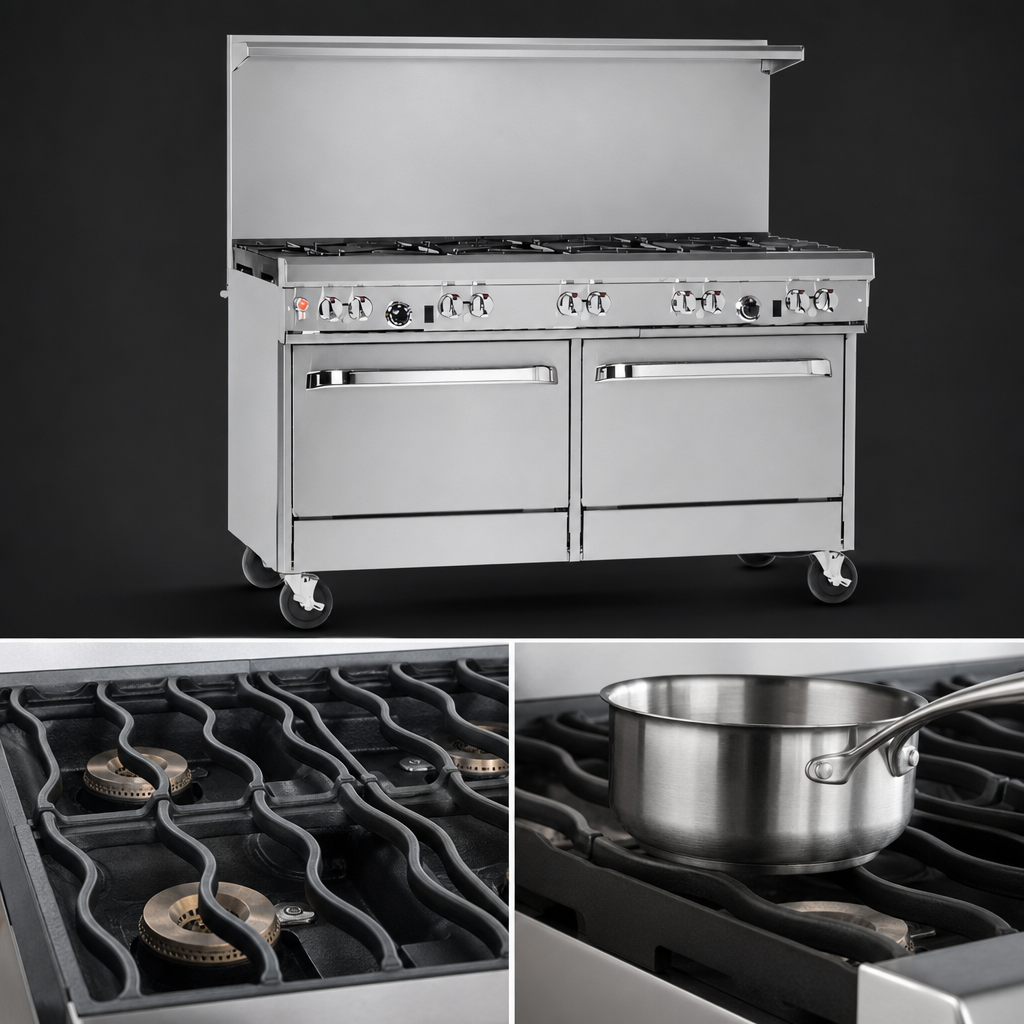

- Wavy cast-iron grates let stockpots & pans slide effortlessly across the top
- Front-mounted manual shut-off valve & standing pilots on all open burners
- 22-1/2" flue riser with heavy-duty utensil shelf
- 45 k BTU standard oven + 32 k BTU convection oven, both with battery spark ignition
- Porcelain-enamel, coved-corner oven cavities for fast, easy clean-ups
- Stainless-steel front, sides, shelf & 6" adjustable stainless legs
- Total input: 364,000 BTU/hr • CSA & NSF certified
- One-year parts & labor warranty (factory-installed regulator included)
Dual-Oven Flexibility
- Standard Oven (45 k BTU) – ideal for roasting & holding; accepts full-size sheet pans in either direction.
- Convection Oven (32 k BTU) – 1/2 hp fan delivers even baking & faster cook times; blower switch lets you run it as a static oven when required.
- 175 °F – 550 °F thermostat range on both ovens.
- Spring-assisted doors stay cool and close smoothly.
- Includes four heavy-duty racks (adjustable).
Specification Snapshot
| Overall width | 60-3/4" (1543 mm) |
|---|---|
| Overall depth (to rail) | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) on 6" legs |
| Burner configuration | 7 × non-clog | 2 × Pyromax (9 total) |
| Total BTU input | 364,000 BTU/hr (natural gas) |
| Gas connection | 3/4" NPT, rear; 7" WC NG / 11" WC LP minimum |
| Electrical (convection blower) | 115 V, 1 ph, 5.9 A, 6 ft cord & 3-prong plug |
| Oven interior (standard) | 14"H × 26"W × 26-1/2"D |
| Oven interior (convection) | 14"H × 26"W × 24"D |
| Certifications | CSA | NSF |
What’s in the Box
- (4) heavy-duty oven racks
- 22-1/2" stainless flue riser & storage shelf (factory-installed)
- Pressure regulator & installation kit
- Owner’s manual & warranty documentation
