Southbend (Middleby)  |  Ultimate  |  SKU: 4602AD-3GR

Southbend (Middleby) 4602AD-3GR Ultimate Gas Ranges

$17,239.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

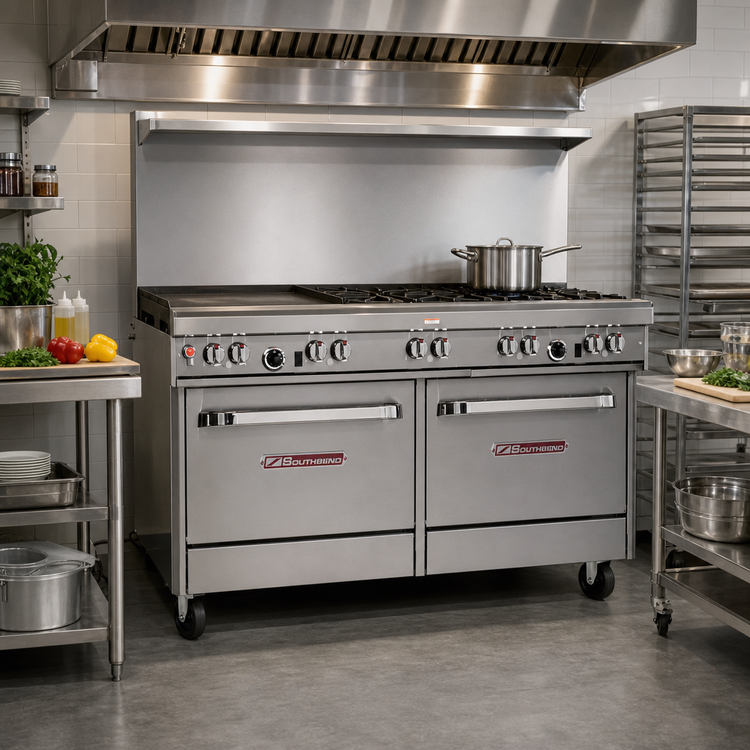

Southbend Ultimate 60" Gas Restaurant Range – 4 Burners, 36" Griddle & Dual Ovens

Model 460AC | 249,000 BTU | cCSAus • CSA Flame • CSA Star • NSF

Power, capacity and rugged construction come together in Southbend’s Ultimate Series. With open-top speed, griddle versatility and both standard and convection baking, this all-in-one range conquers every menu item from seared steaks to delicate pastries.

Key Performance Features

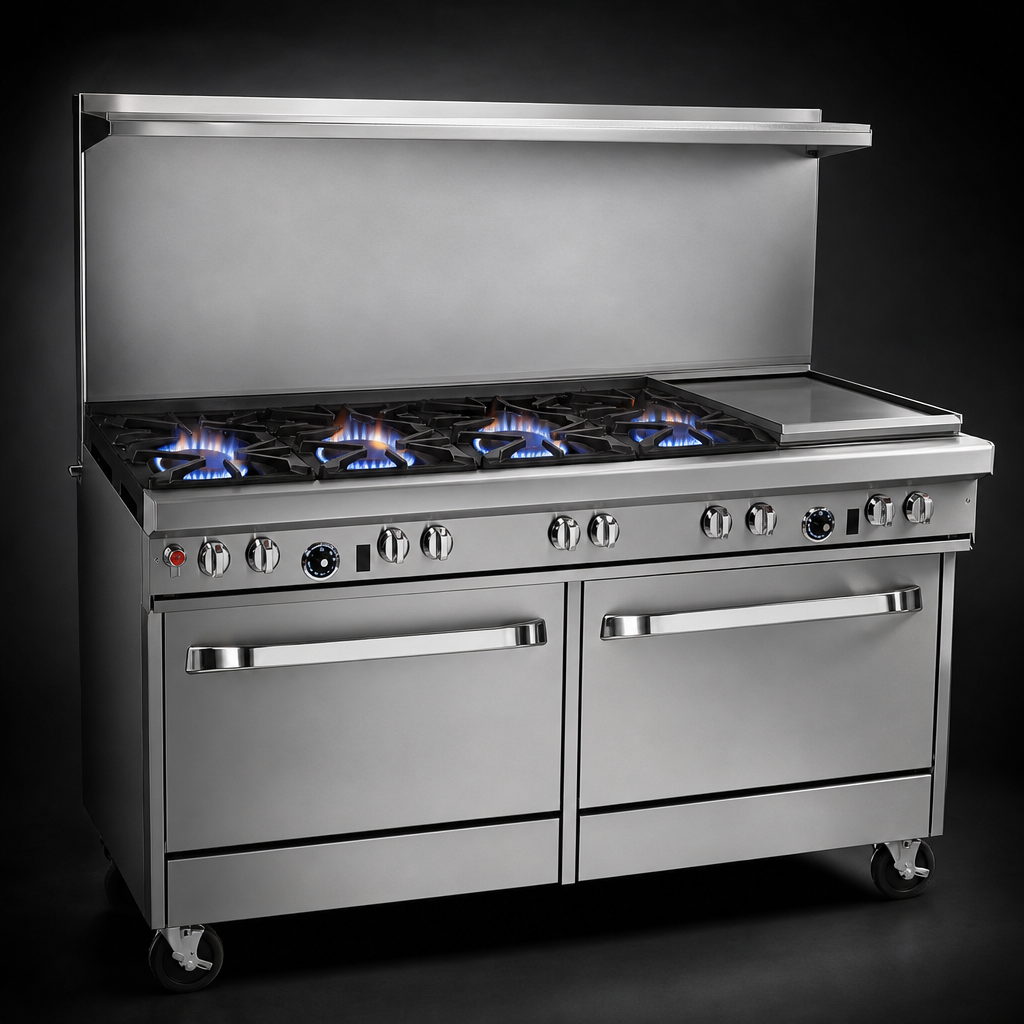

  • Four (4) 27,000 BTU non-clog open burners with lifetime cast-iron heads & wavy grates for maximum pan stability.
  • Right-side 36" griddle with ½" polished steel plate and raised splash sides—ideal for pancakes, burgers and more.
  • Left standard oven: 45,000 BTU, porcelain-enameled 14" H × 26" W × 26.5" D cavity, one rack (2 positions).
  • Right convection oven: 32,000 BTU, forced-air circulation, 14" H × 26" W × 24" D cavity, three racks (5 positions).
  • Battery-spark ignition on both ovens; standing pilots on the open burners for quick, reliable starts.
  • Front-mounted manual gas shut-off for immediate, range-wide control.
Built to Endure Daily Demands
  • Stainless steel front, sides, 4" landing rail and 22 ½" flue riser shelf resist dents, corrosion and heat.
  • 27"-deep cooking surface with heavy-duty, slide-friendly cast-iron grates—no lifting required.
  • Spring-assisted oven doors stay cool and close softly to protect gaskets and hinges.
  • Factory-installed regulator and 6" adjustable stainless legs for a level, code-compliant install.
  • One-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Specifications
Cooking width 60 ¾" (1543 mm)
Overall depth 42 ⅛" (1070 mm) with oven doors
Cooking surface height 37"
Total height (to shelf) 59 ½" with 22 ½" flue riser & shelf
Total input 249,000 BTU/hr (Natural or LP – specify)
Open burners 4 × 27,000 BTU non-clog, wavy grates
Griddle 36" W × 27" D, ½" plate, manual controls, 96,000 BTU
Standard oven 45,000 BTU, 1 rack / 2 positions
Convection oven 32,000 BTU, 115 V, 5.9 A, 3 racks / 5 positions
Gas connection ¾" NPT (opposite griddle side)
Shipping weight ≈ 1,100 lb (499 kg)
Certifications
  • cCSAus – Gas safety (U.S. & Canada)
  • CSA Flame & CSA Star – Commercial food-service gas appliance
  • NSF – Sanitation compliance
Installation Notice: For non-quarry tile floors or oversized cookware (12"+), follow Southbend guidelines to maintain warranty coverage. Always install under a properly sized vent hood and connect to the specified ¾" gas line with suitable restraints.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

43.6in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Top

(4) open burners, (1) 36" griddle

Plate Thickness

.500" = 1/2"

Base

(1) standard oven, (1) convection oven

Exterior Finish

stainless steel front & sides

Specifications

Ultimate Restaurant Range, gas, 60", (4) non-clog burners, wavy grates, (1) 36" griddle right, standing pilot, (1) standard oven with battery spark ignition, (1) convection oven with battery spark ignition, includes (4) racks total, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 249,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
