Southbend (Middleby)  |  Ultimate  |  SKU: 4602AD-2RR

Southbend (Middleby) 4602AD-2RR Ultimate Gas Ranges

$16,515.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

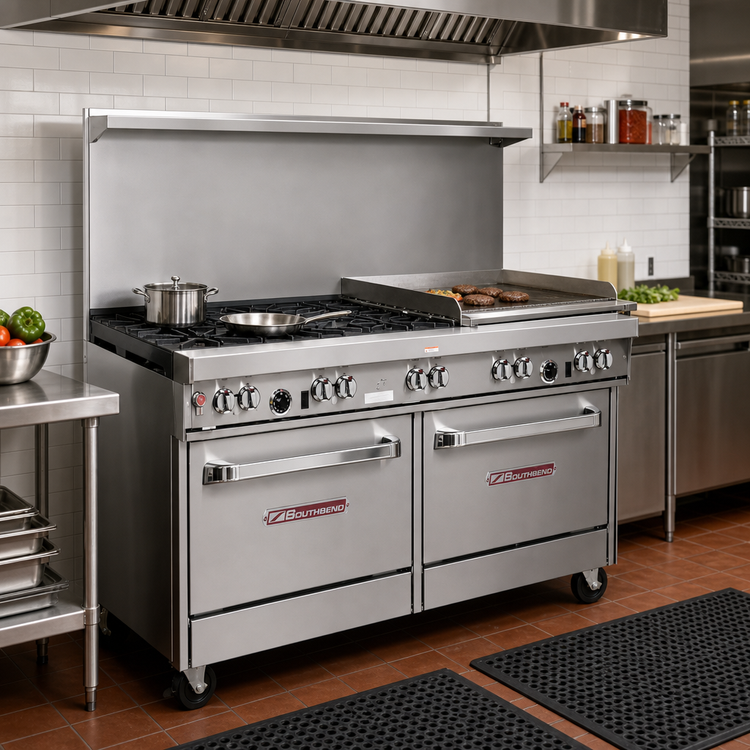

Southbend “Ultimate” 60" Gas Restaurant Range — 6 Burners, 24" Raised Griddle/Broiler & Dual Ovens

272,500 BTU | Natural or LP Gas | Model 460 Series Custom Configuration

Pack powerhouse performance into a single 60" footprint. The Southbend Ultimate Series combines six non-clog open burners, a space-saving raised griddle/broiler and both a standard and convection oven—giving chefs the flexibility to boil, sauté, sear, bake and roast all at once.

Key Performance Features

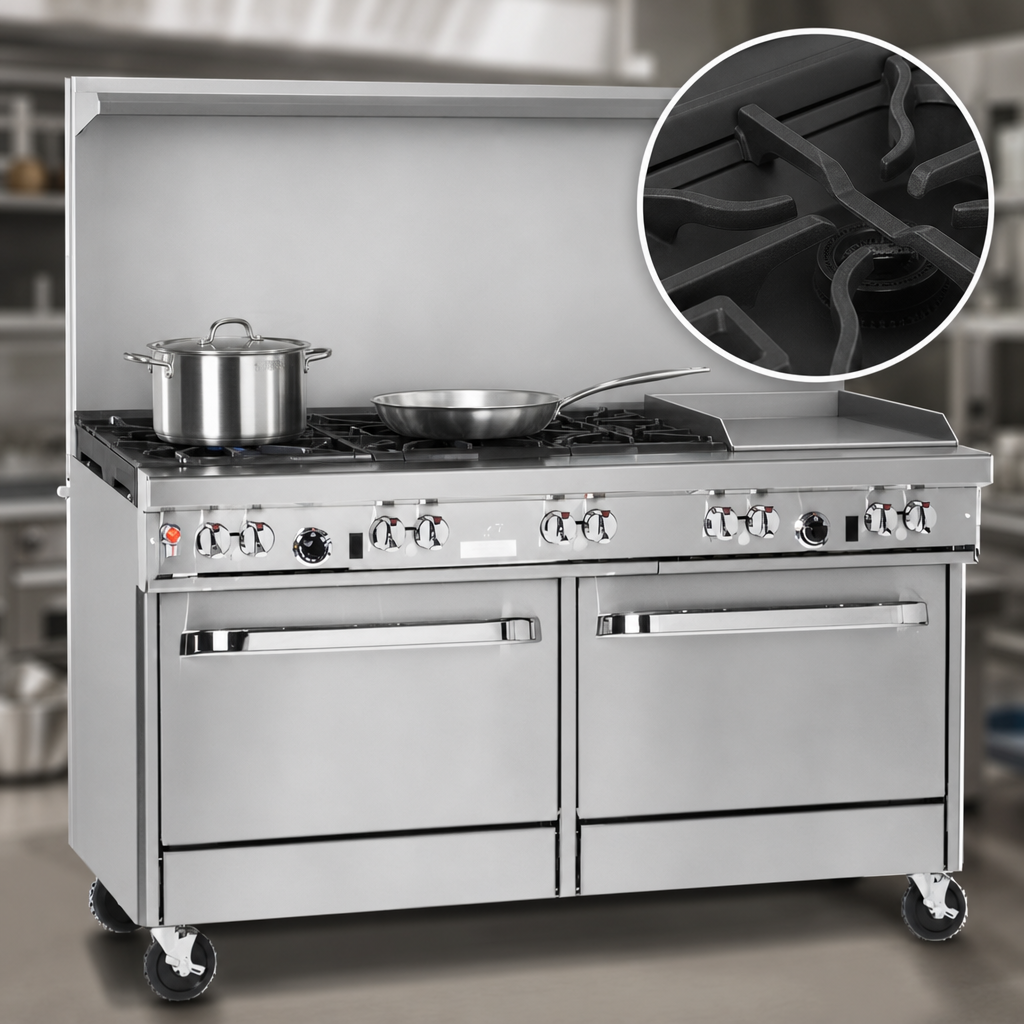

  • Six 27,000 BTU lifetime non-clog cast-iron burners with energy-efficient wavy grates for superior pan stability.
  • 24" raised griddle/broiler (64,000 BTU) with ½" polished steel plate—grill burgers or finish steaks without sacrificing burner space.
  • Two ovens:
    • 45,000 BTU standard bake oven
    • 32,000 BTU convection oven with ½ hp blower for even, rapid baking
  • Battery-spark ignition on both ovens; standing pilots on the cook-top—keeps you cooking even during brief power outages.
  • Front-mounted manual gas shut-off and factory-installed regulator for fast, code-compliant hook-up.
  • 22.5" flue riser with heavy-duty shelf—perfect for holding pans, spices or smallwares right where you need them.
  • All-stainless exterior, 4" front rail & 6" adjustable legs built to take daily commercial abuse.
  • Certified cCSAus, CSA Flame, CSA Star & NSF for safety and sanitation.
  • Backed by Southbend’s 1-year parts & labor warranty.

At-a-Glance Specifications

Overall width 60-3/4" (1543 mm)
Depth / Cooking height 34" D × 37" H
Open burners 6 × 27,000 BTU cast-iron, non-clog (standing pilot)
Griddle / Broiler 24" raised, ½" polished plate, 64,000 BTU
Ovens Standard oven – 45,000 BTU
Convection oven – 32,000 BTU (½ hp motor)
Rack capacity 4 chrome racks (2 per oven)
Total input 272,500 BTU/hr
Gas connection ¾" NPT (min. 7" W.C. NAT / 11" W.C. LP)
Electrical (convection) 115 V, 1 Ø, 5.9 A, 6' cord & plug
Construction Stainless steel front, sides, shelf & legs; porcelain-enameled ovens
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year limited parts & labor

Perfect For

  • High-volume restaurants & diners
  • Hotel & resort kitchens
  • Catering commissaries
  • Institutional & campus foodservice
Commercial Use Only: Install under a vented hood and observe local gas & fire codes. Keep oversized cookware on rear burners to prevent heat damage to front components.

Need a different top configuration? The Ultimate Series is available with hot-tops, charbroilers, Pyromax burners and more—ask our team for details.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

43.6in

Shipping Weight

1075.0lbs

Top

(6) open burners, (1) 24" griddle/broiler

Base

(1) standard oven, (1) convection oven

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Plate Thickness

.500" = 1/2"

Specifications

Ultimate Restaurant Range, gas, 60", (6) non-clog burners, wavy grates, raised griddle/broiler, standing pilot, (1) standard oven with battery spark ignition, (1) convection oven with battery spark ignition, includes (4) racks total, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 272,500 BTU, cCSAus, CSA Flame, CSA Star, NSF
