Southbend (Middleby) 4602AD-2GR Ultimate Gas Ranges
Description

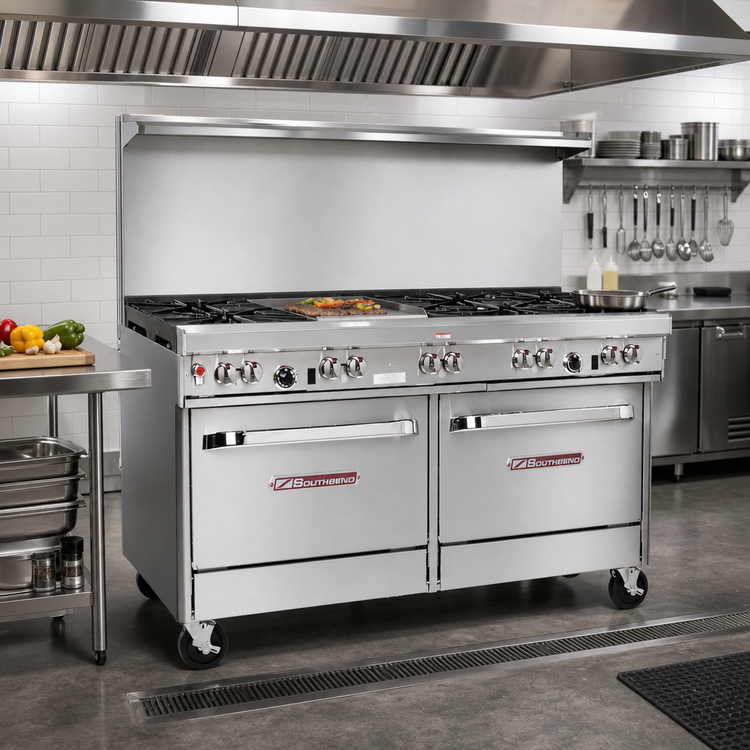

Southbend Ultimate 60" Restaurant Range – 6-Burner / 24" Right-Side Griddle with Standard & Convection Ovens
Model 460 Series | 287,000 BTU | Natural or LP GasBuilt for high-volume, multi-menu kitchens, the Ultimate Range combines Southbend’s heaviest-duty top with dual oven versatility. Sauté, simmer, griddle, roast and bake—all at the same time—on a single 60-inch footprint that never misses a beat.
Key Features

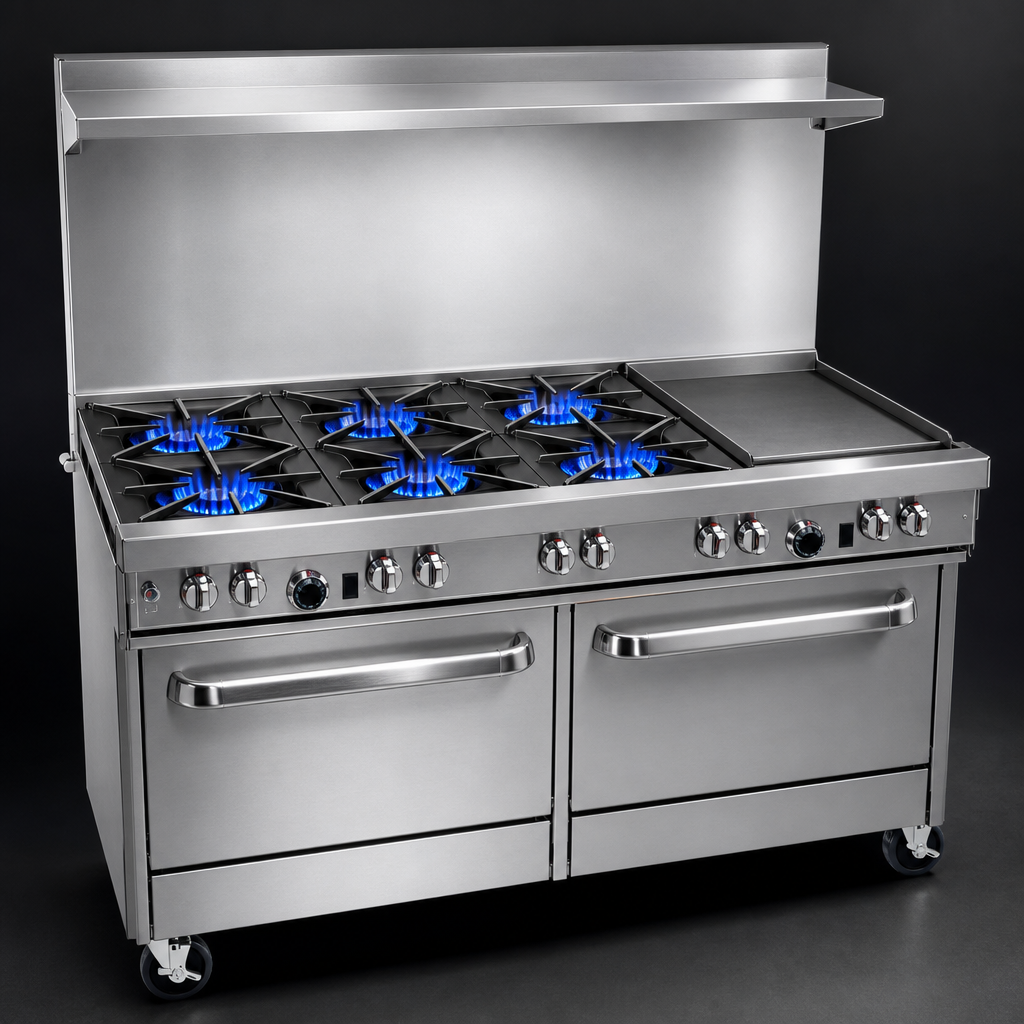

- Six (6) 27,000 BTU non-clog open burners with standing pilots for instant, reliable lighting.
- Continuous cast-iron wavy grates lift cookware closer to the flame and let heavy stock pots slide easily across the top.
- 24" polished steel griddle (½" thick) on the right—48,000 BTU for eggs, burgers, quesadillas and more.
- Left-side standard oven (45,000 BTU) with battery spark ignition and 175-550 °F thermostat; includes 1 rack with two positions.
- Right-side convection oven (32,000 BTU) with battery spark ignition, ½ hp fan motor and 5 rack positions; includes 3 racks.
- Total of four nickel-plated racks supplied.
- 22 ½" flue riser with integrated utensil shelf keeps pans warm and worktops clear.
- 4" stainless front rail with manual shut-off valve for the entire range; factory-installed gas pressure regulator.
- Durable stainless steel front, sides, shelf and 6" adjustable legs; two removable drip trays speed nightly cleanup.
- Third-party approvals: cCSAus, CSA Star, CSA Flame & NSF.
At-a-Glance Specifications
| Overall width | 60 3⁄4 in. (1543 mm) |
|---|---|
| Overall depth | 42 1⁄8 in. (1070 mm) |
| Cooking surface height | 37 in. (940 mm) |
| Open burners | 6 × 27,000 BTU (162,000 BTU total) |
| Griddle | 24 in. manual, 48,000 BTU |
| Standard oven | 45,000 BTU | 14"H × 26"W × 26 ½"D | 1 rack |
| Convection oven | 32,000 BTU | 14"H × 26"W × 24"D | 3 racks, ½ hp fan |
| Total input | 287,000 BTU/hr |
| Gas connection | ¾" NPT (rear, opposite griddle side) |
| Electrical (convection) | 115 V / 60 Hz / 1 ph, 6 A, 6 ft cord & 3-prong plug |
| Warranty | 1-year parts & labor |
Looking for step-up burners, charbroilers or raised griddles? Ultimate ranges are factory-configurable—talk to our team for custom builds.
Why Choose Southbend Ultimate?
- American-built quality backed by 125 years of commercial cooking innovation.
- Battery spark ignition eliminates the need for external power on the open top.
- Tool-free grate and drip-tray removal accelerate nightly cleaning.
- Compatible with salamander and cheesemelter mounts to maximize vertical space.
Power, versatility and legendary durability—upgrade your cookline with the Southbend Ultimate 60" Range and keep every service running at full speed.
