Southbend (Middleby) 4602AC Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range – 10-Burner / Convection Oven + Cabinet
Model 460-AC | 302,000 BTU | Natural GasBoost line-service throughput and menu versatility with the Ultimate Series—the heaviest-duty restaurant range Southbend has ever built. Ten lifetime clog-free burners, a high-efficiency convection oven and built-in storage are packed into a rugged, all-stainless 60" footprint that slides easily under a standard ventilation hood.
Performance at a Glance

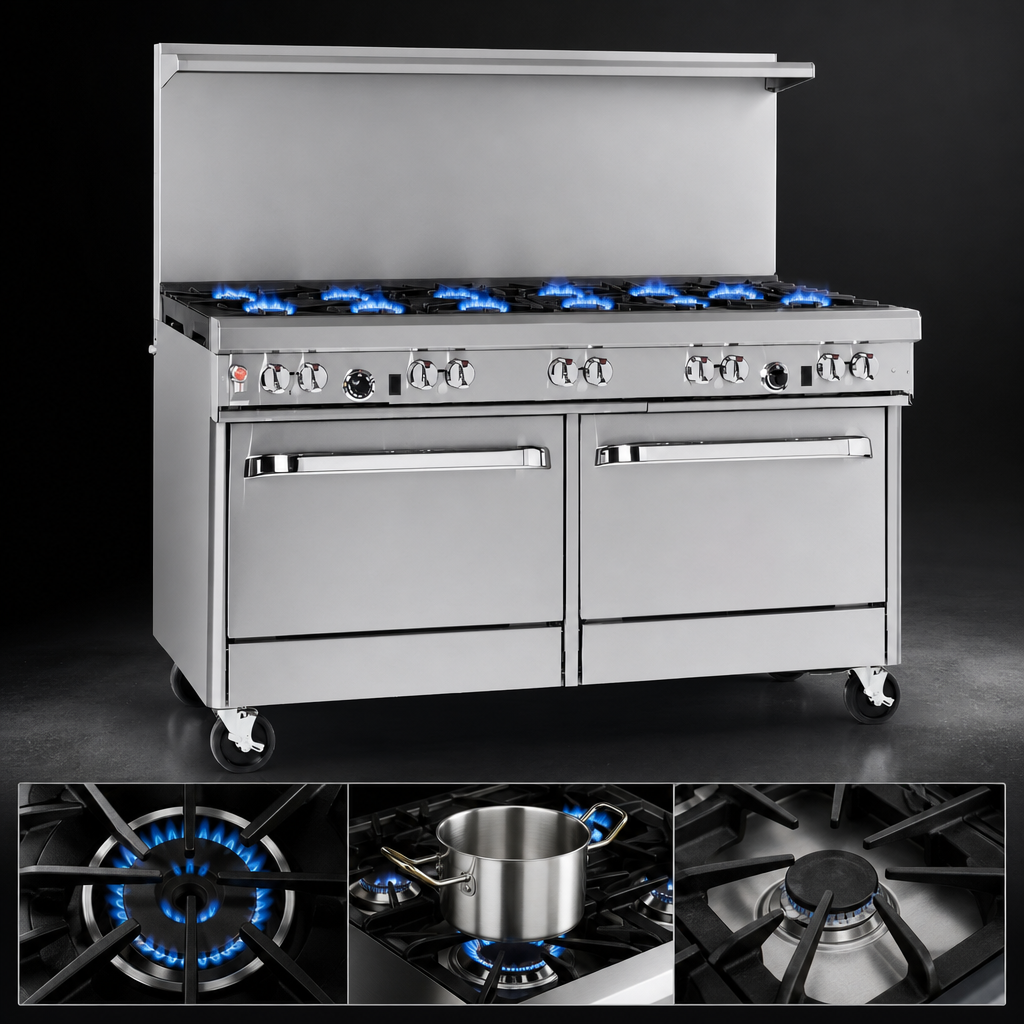

- (10) 27,000 BTU non-clog cast-iron burners – patented one-piece design prevents grease buildup and blockage.

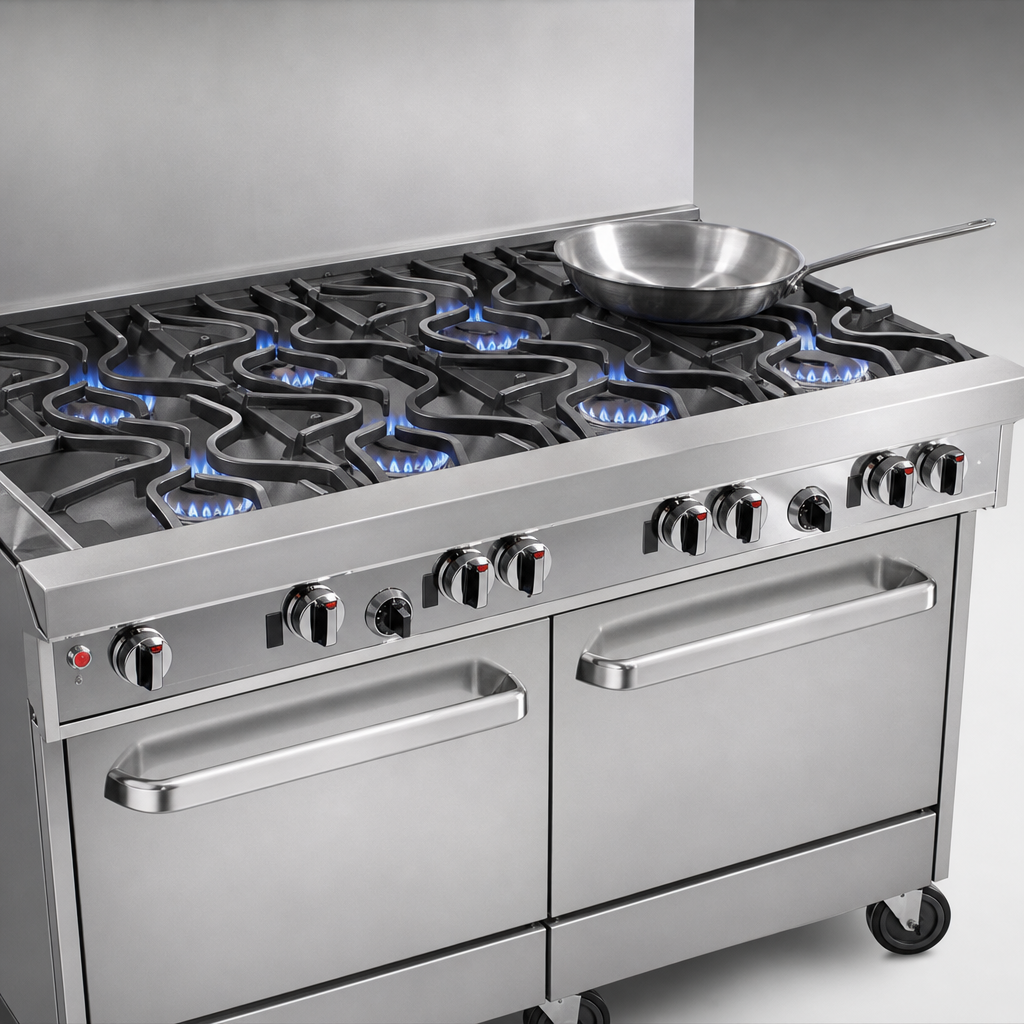

- Wavy cast-iron grates create a continuous, pan-friendly surface while maximizing heat transfer.
- 27"-deep cooking surface handles oversized stock pots (up to Ø 14" on the rear grates).
- 32,000 BTU convection oven with battery-spark ignition; 175 – 550 °F thermostat.
- Porcelain-enameled oven cavity (14" H × 26" W × 24" D) with 3 nickel-plated racks / 5 positions.
- Stainless cabinet base (right side) keeps sheet pans, hotel pans or smallwares within arm’s reach.
- Factory-installed 22½" flue riser with heavy-duty plated shelf—ideal for resting pans and warming plates.
- 4" deep welded front rail plus two full-width removable drip trays for easy cleanup.
- Front-mounted manual gas shut-off and factory regulator simplify installation & service.
- 6" adjustable stainless legs; optional casters available.
Technical Specifications
| Cooking top | (10) open burners, standing pilot |
|---|---|
| Burner rating | 27,000 BTU each | 270,000 BTU total |
| Convection oven | 32,000 BTU | battery-spark ignition, 175 – 550 °F |
| Total input | 302,000 BTU/h (natural gas) |
| Interior oven size | 14"H × 26"W × 24"D (3 racks, 5 positions) |
| Overall dimensions | 60 ¾"W × 42 ⅛"D × 59 ½"H (to shelf) |
| Working height | 37" to cook surface |
| Gas connection | ¾" NPT (min. 7" W.C. NG) – 34 ft³/h |
| Electrical (fan) | 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & NEMA 5-15P plug |
| Construction | Stainless front, sides, cabinet & shelf; porcelain oven cavity; cast-iron grates & burners |
| Certifications | CSA, NSF – commercial use |
| Crated weight | Approx. 1,075 lb (488 kg) |
What Ships in the Box
- Southbend Ultimate Model 460-AC range
- (10) wavy cast-iron top grates
- (3) nickel-plated oven racks
- 22½" flue riser shelf (factory installed)
- 6" adjustable stainless legs
- Factory pressure regulator & owner’s manual
Warranty
1-year limited parts & labor warranty. See Southbend’s published terms & conditions for full details.
