Southbend (Middleby) 4602AC-7R Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range – 8-Burner (4 Non-Clog + 4 Pyromax) w/ Convection Oven & Cabinet Base
300,000 BTU | CSA • NSF ListedBuilt for kitchens that never slow down, the Southbend Ultimate Series packs high-output burners, an even-baking convection oven, and durable stainless construction into a single 60" footprint— giving chefs the power and flexibility to handle any service rush.
Why you’ll love it
-

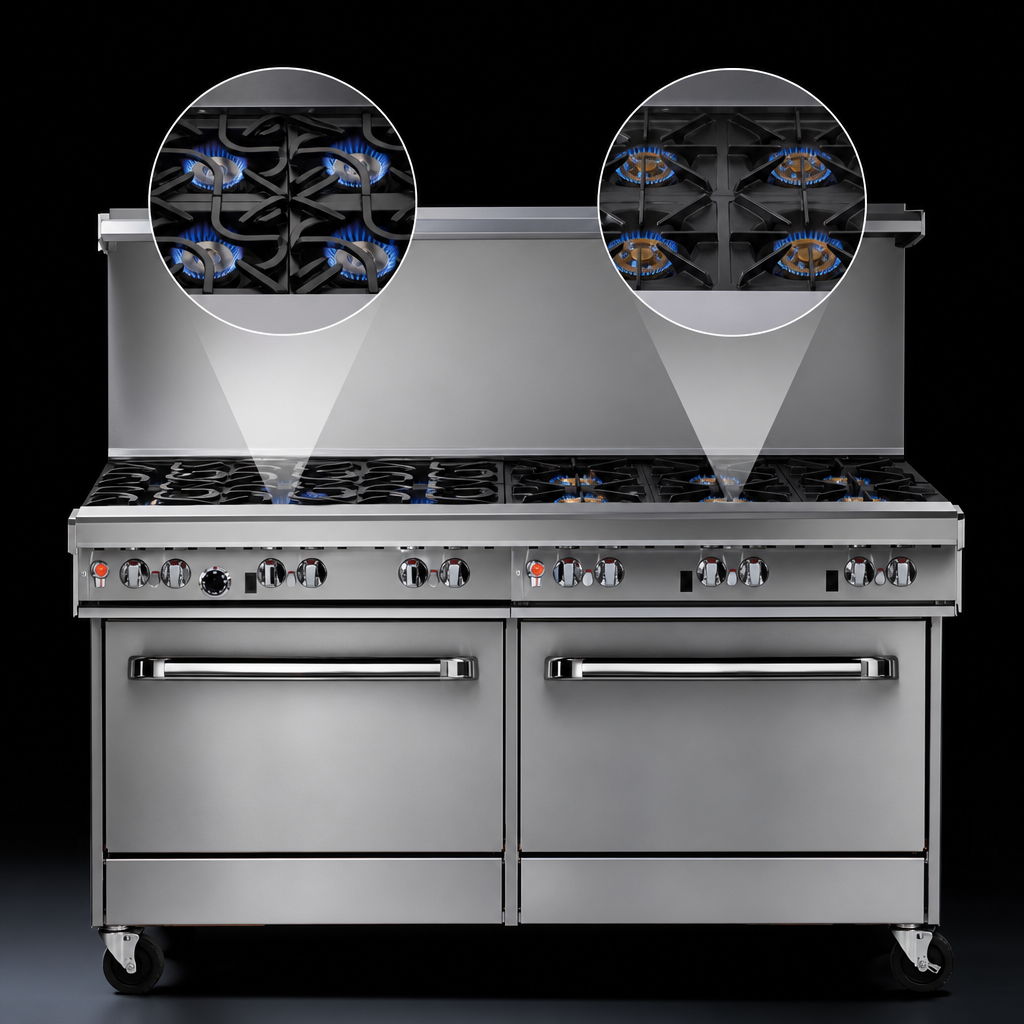

Eight open-top burners
– (4) 27,000 BTU non-clog burners with energy-saving wavy grates (left)
– (4) 40,000 BTU Pyromax high-output burners (right) - Standing pilots on all open tops for instant lighting; battery-spark ignition on the oven.
- 32,000 BTU convection oven (175 °F – 550 °F) with porcelain interior, three racks & five rack positions for full-size sheet pans front-to-back or side-to-side.
- Stainless steel cabinet base on the opposite side keeps stock pots, hotel pans, or sheet pans close at hand.
- 22 ½" flue riser with reinforced shelf—perfect for plating or warming.
- 4" deep stainless landing rail and front-mounted ¾" manual gas shut-off for safe, quick service.
- 6" adjustable stainless legs level the unit on uneven floors.
- Factory-installed pressure regulator and front-serviceable components streamline installation & maintenance.
- Backed by a 1-year parts & labor warranty and nationwide Southbend service network.
Specification snapshot
| Overall width | 60 3/4" (1543 mm) |
|---|---|
| Overall depth | 42 1/8" (1070 mm) |
| Cooking height | 37" (940 mm) |
| Height to top of flue | 59 1/2" (1511 mm) incl. 22 ½" riser |
| Open-top input | 268,000 BTU/hr |
| Convection oven input | 32,000 BTU/hr |
| Total input | 300,000 BTU/hr |
| Oven interior | 26" W × 24" D × 14" H (660 × 610 × 356 mm) |
| Electrical (fan) | 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & NEMA 5-15P |
| Gas connection | ¾" NPT, minimum inlet 7" W.C. (NAT) / 11" W.C. (LP) |
| Certifications | CSA, NSF |
| Warranty | 1-Year parts & labor |
Ideal applications
- High-volume restaurants & diners
- Hotel, resort & institutional kitchens
- Catering commissaries & ghost kitchens
Need a different burner, griddle, or charbroiler layout? The Ultimate Series is fully configurable—contact us for a custom quote.
