Southbend (Middleby) 4602AC-7L Ultimate Gas Ranges

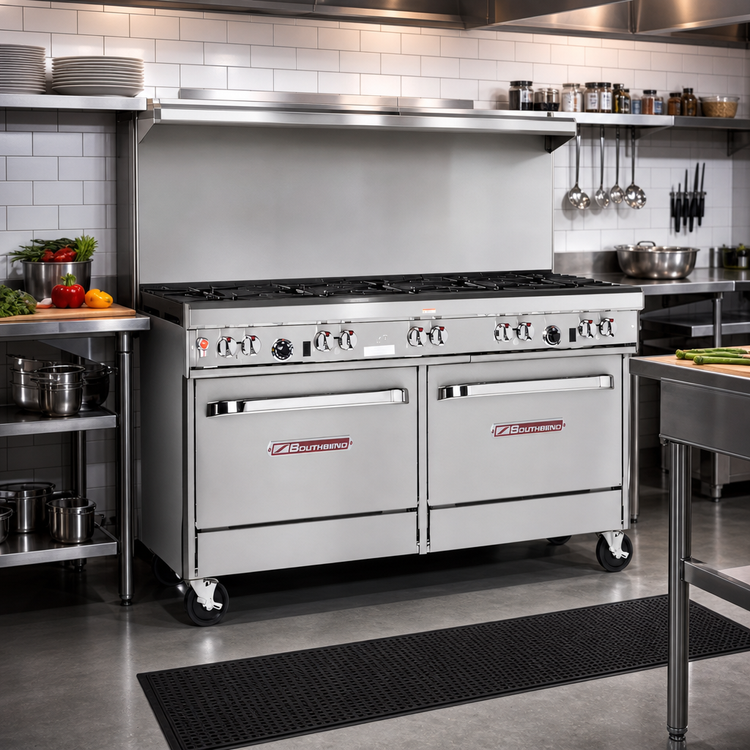

Southbend “Ultimate” 60" Gas Restaurant Range

Power, versatility and rock-solid construction come together in Southbend’s flagship Ultimate series. This 60-inch range delivers a commanding 300,000 BTU/h output across eight high-performance burners, a full-size convection oven and a convenient stainless storage cabinet—built to keep pace with the most demanding commercial kitchens.

Key Features

• 8 open burners
  – (4) 27,000 BTU non-clog burners on the right with patented wavy grates for superior pan stability
  – (4) 40,000 BTU Pyromax™ burners on the left for rapid boils & high-heat searing

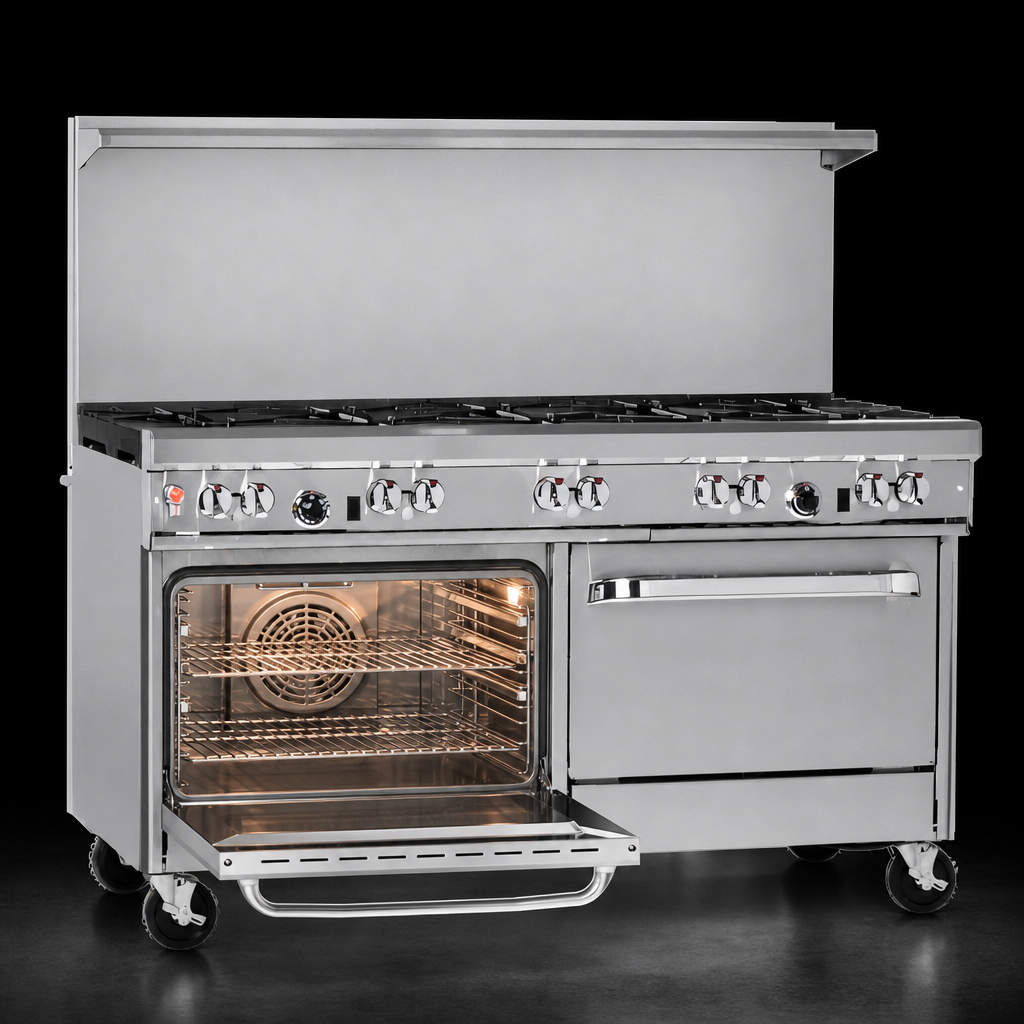

• 32,000 BTU convection oven with battery-spark ignition, 175–550 °F thermostat & 3 chrome racks (5 positions)
• Stainless steel cabinet base (left or right facing) provides quick-grab storage; factory-fit doors available at no charge
• 22.5" flue riser with heavy-duty shelf keeps plates & smallwares within reach
• 4" deep front rail with manual gas shut-off for the entire range
• Durable stainless front, sides & shelf plus 6" adjustable stainless legs
• Factory-installed regulator, standing pilots for top burners & removable drip trays for fast cleanup
• Certified to CSA & NSF standards; 1-year parts & labor warranty

Built for High-Volume Performance

From breakfast rush to late-night service, the Ultimate range keeps your line moving. Southbend’s clog-free burner design delivers consistent flames even with daily grease buildup, while the cast-iron wavy grates let you slide stock pots across the entire surface without lifting. Need serious heat? The left-side Pyromax burners unleash 160,000 BTU combined—perfect for woks, sauté pans and rapid stock reduction.

Specifications

Cabinet doors, casters, quick-disconnect hose sets and other accessories are available—ask your Southbend dealer for details.
