Southbend (Middleby) 4602AC-6R Ultimate Gas Ranges
Southbend (Middleby) 4602AC-6R Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4602AC-6R Ultimate Gas Ranges
Description

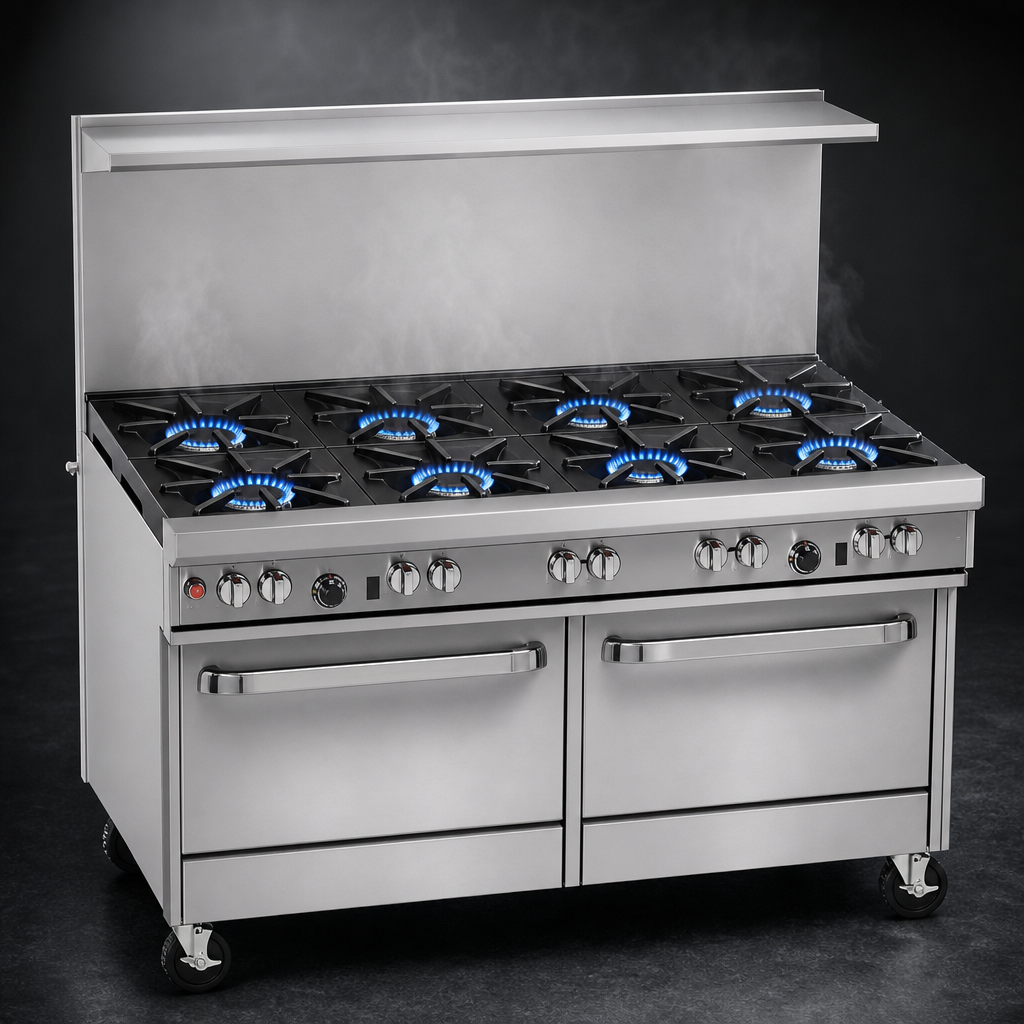

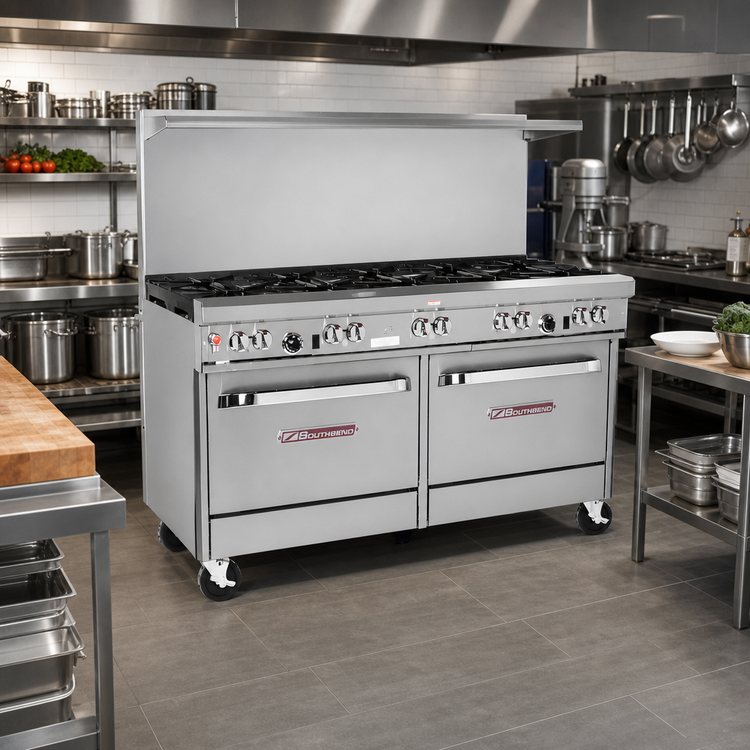

Southbend “Ultimate” 60" Restaurant Range – Split-Top w/ Convection Oven & Cabinet Base
Model 460-AC • 319,000 BTU • Natural / LP GasBuilt for the busiest professional kitchens, the Southbend Ultimate Series brings unmatched cooking power, flexibility, and durability to a single 60" footprint. A unique mix of star, Pyromax, and non-clog burners teams up with a full-size convection oven and a stainless cabinet base, letting you sauté, sear, simmer, roast, and stage – all at once.

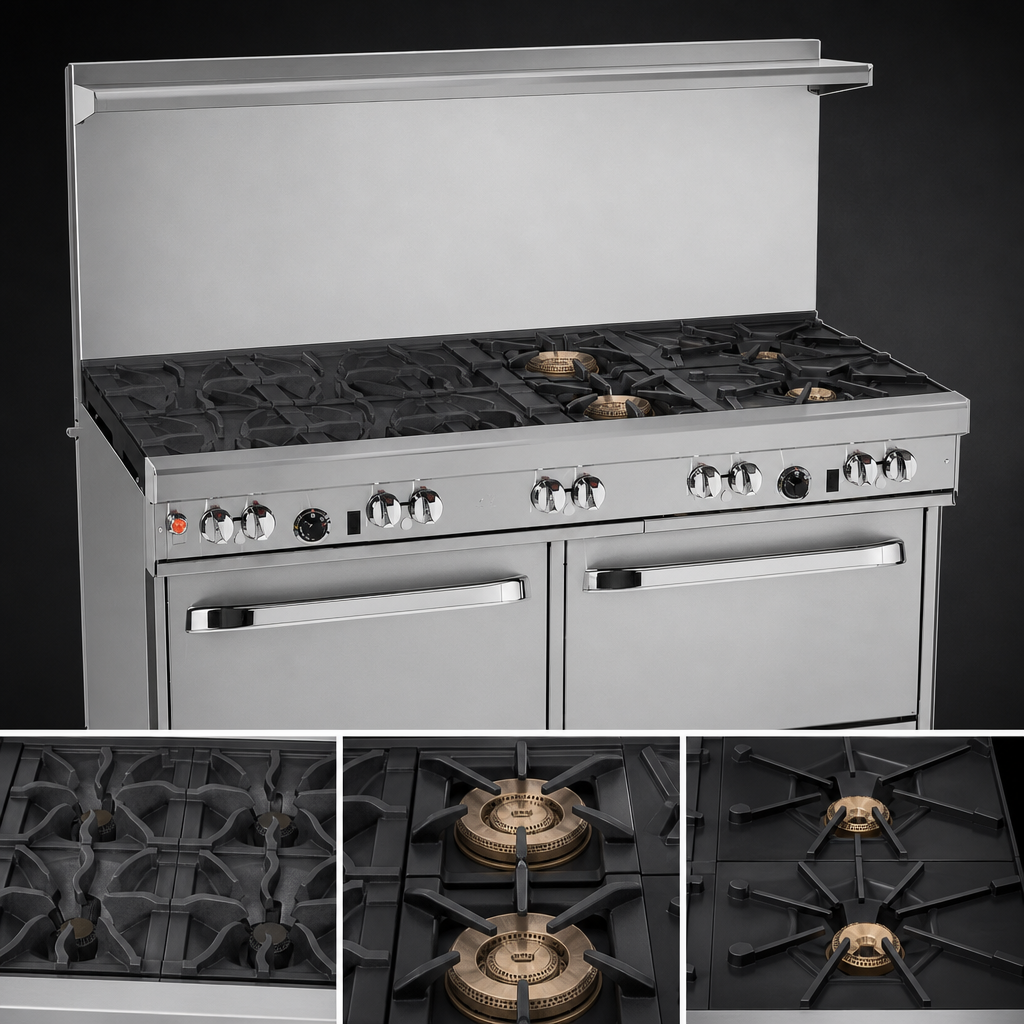

Performance Highlights- (3) 33,000 BTU star/saute burners (front right) for fast, even pan heat.
- (2) 40,000 BTU Pyromax burners (rear right) – our highest-output open burners for stock pots & woks.
- (4) 27,000 BTU non-clog burners (left) with wavy grates that accept oversized cookware without flame lift-off.
- Full-size convection oven (32,000 BTU) with battery-spark ignition and three heavy-duty racks.
- 22-1/2" flue riser with integrated shelf keeps plates and smallwares warm and ready.
- Front-mounted manual gas shut-off and factory-installed regulator speed up installation.
- All-stainless front, sides, 4" rail, shelf, and 6" adjustable legs stand up to daily commercial abuse.
- CSA & NSF certified for gas safety and sanitation.
| Overall width | 60 3/4" (1543 mm) |
|---|---|
| Overall depth | 42 1/8" (1070 mm) |
| Cooking surface height | 37" (940 mm) |
| Burners | (3) Star 33 k BTU | (2) Pyromax 40 k BTU | (4) Non-clog 27 k BTU |
| Total open-top BTU | 287,000 BTU/hr |
| Oven output / range | 32,000 BTU | 175 – 550 °F thermostat |
| Oven interior (WxDxH) | 26" × 24" × 14" porcelain enamel (fits full-size sheet pans) |
| Base – Left | Stainless steel cabinet, center-opening doors (no-charge option) |
| Gas connection | 3/4" NPT, 7" WC Nat. / 11" WC LP (regulator included) |
| Total gas input | 319,000 BTU/hr |
| Electrical (oven fan) | 115 V, 5.9 A, 6' cord & plug |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor |
- (3) Heavy-duty convection oven racks
- Cast-iron wavy grate set (left side)
- 6" stainless adjustable legs
- Battery pack & factory-installed pressure regulator
• For floors other than quarry tile, consult factory for approved mounting options.
• Place pots 12" or larger toward the rear to protect front-rail components.
• Intended for use under a commercial vent hood. Not for household installation.
Looking to conserve capital? Ask us about Middleby Equipment Financing for quick approval and predictable monthly payments.
