Southbend (Middleby) 4602AC-6L Ultimate Gas Ranges
$15,700.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) 4602AC-6L Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4602AC-6L Ultimate Gas Ranges
$15,700.00
Unit price
/
Unavailable
Description
Ultimate 60" Restaurant Range – 3 Star/Sauté + 2 Pyromax + 4 Wavy Non-Clog Burners
Gas | Convection Oven & Cabinet Base | 319,000 BTUBuilt for high-volume kitchens that refuse to compromise on versatility, the Southbend Ultimate Series 60" range combines three burner technologies, a powerful convection oven, and a full-width cabinet base in one rock-solid, stainless-steel platform.
Why You’ll Love It
-

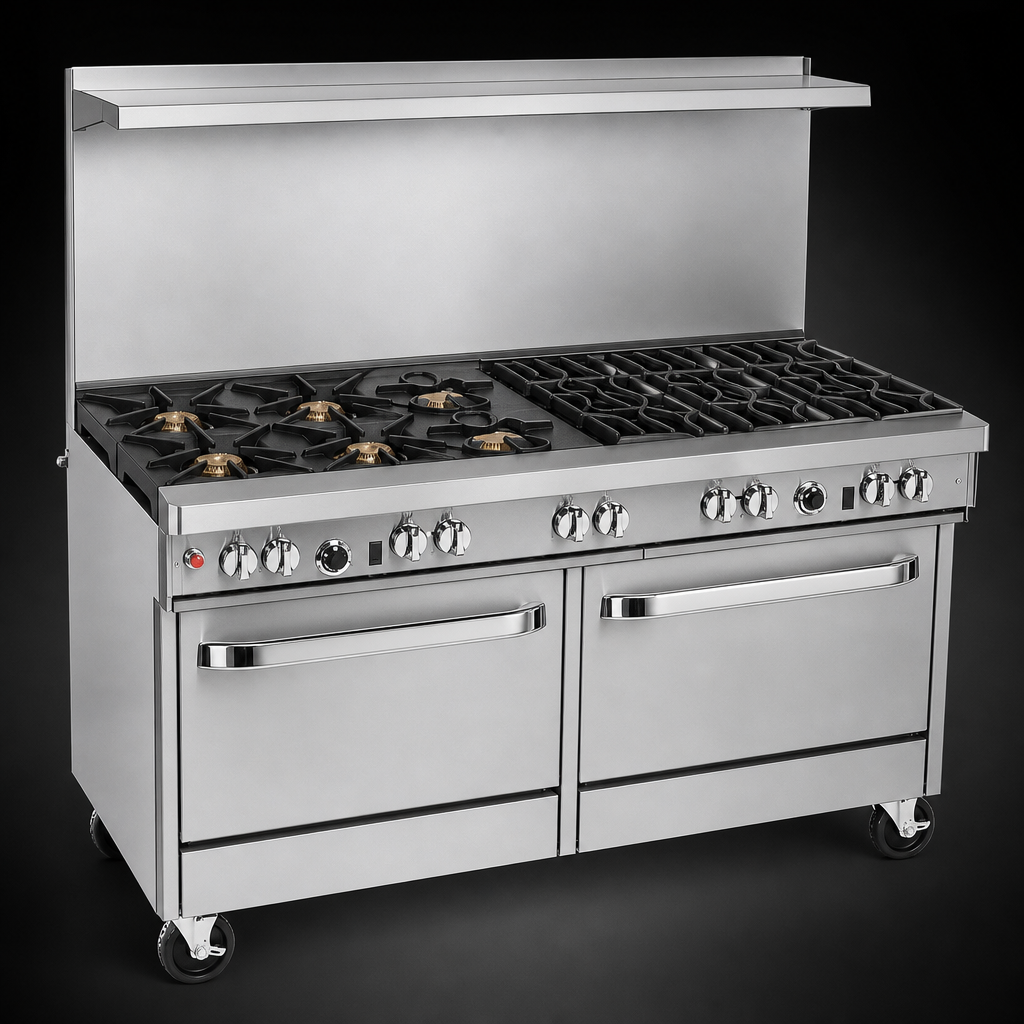

Tri-Zone Cooktop:
• (3) 33,000 BTU star/sauté burners (front left) deliver even flame distribution for rapid sautéing.
• (2) 40,000 BTU Pyromax™ burners (rear left) tackle high-capacity boiling or wok work.
• (4) 27,000 BTU non-clog burners with wavy grates (right) maximize pan stability and heat efficiency. - Standing pilots on the open top mean instant start-ups with no downtime.

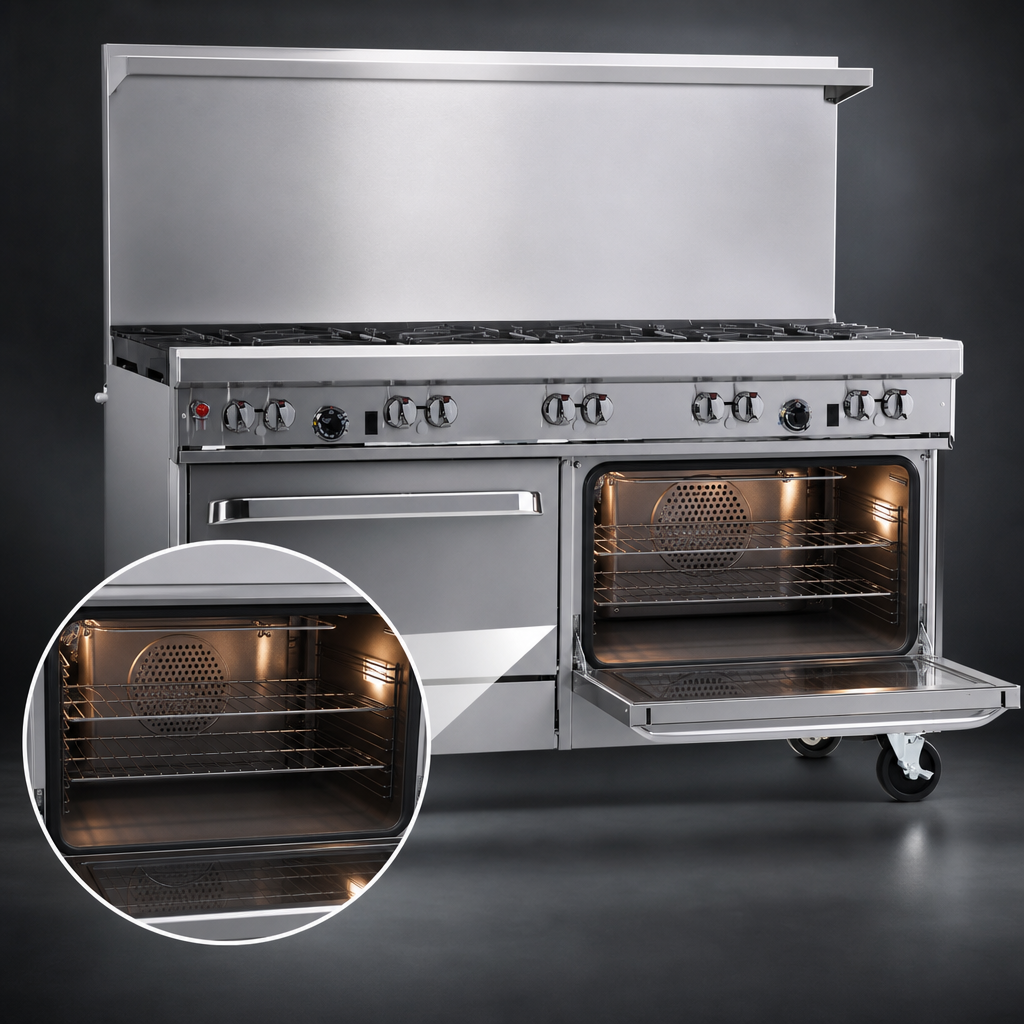

- Full-size 32,000 BTU convection oven with battery-spark ignition turns out consistent baked goods, roasts, and sheet-pan meals—three nickel-plated racks included.
- 22-1/2" flue riser with integrated storage shelf keeps utensils, spices, or smallware within reach.
- Stainless-steel armor on the front, sides, shelf, and 6" adjustable legs stands up to the toughest cleaning chemicals and everyday abuse.
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation and service.
- Certified safe & sanitary: CSA & NSF listed.
Technical Specifications
| Model family | Ultimate Series 460 (60" platform) |
|---|---|
| Overall width | 60 3/4" (1543 mm) |
| Cooktop height | 37" working surface |
| Total input | 319,000 BTU/hr (Natural Gas) |
| Open-top burners | 3 × 33k star/sauté • 2 × 40k Pyromax • 4 × 27k non-clog |
| Oven cavity | 14"H × 26"W × 24"D – porcelain enamel, 3 racks / 5 positions |
| Oven temperature range | 175 °F – 550 °F (79 °C – 288 °C) |
| Gas connection | 3/4" NPT (rear), min. 7" W.C. (Natural) |
| Electrical (convection fan) | 115 V / 60 Hz / 1 Ø, 5.9 A – factory 6' cord & 3-prong plug |
| Base configuration | Left: Convection oven • Right: Open stainless cabinet |
| Warranty | 1-year parts & labor, factory authorized service |
Included With Your Range
- (3) nickel-plated oven racks
- Removable drip trays under burners
- Factory pressure regulator
- 6" stainless adjustable legs
Popular Add-Ons (sold separately)
- Swivel casters with front locks
- Cabinet doors for the base (no-charge option at time of order)
- 5" or 10" flue risers, salamander & cheesemelter mounts
- Quick-disconnect gas hose (3'–5')
Important: For optimal lifespan, limit oversized cookware (12"+ diameter) to the rear burners and never allow pots to overhang the 4" front rail.
Always install under a properly vented hood and follow local codes.
Intended for commercial use only. Specifications subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
60.75in
Depth
43.6in
Shipping Weight
1075.0lbs
Exterior Finish
stainless steel front & sides
Top
(9) open burners
Vent
backriser with hi-shelf
Base
(1) convection oven, (1) cabinet
Specifications
Ultimate Restaurant Range, gas, 60", (3) star/sauté burners front left, (2) pyromax burners rear left, (4) non-clog burners with wavy grates right, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 319,000 BTU, CSA, NSF
