Southbend (Middleby) 4602AC-5R Ultimate Gas Ranges
Description

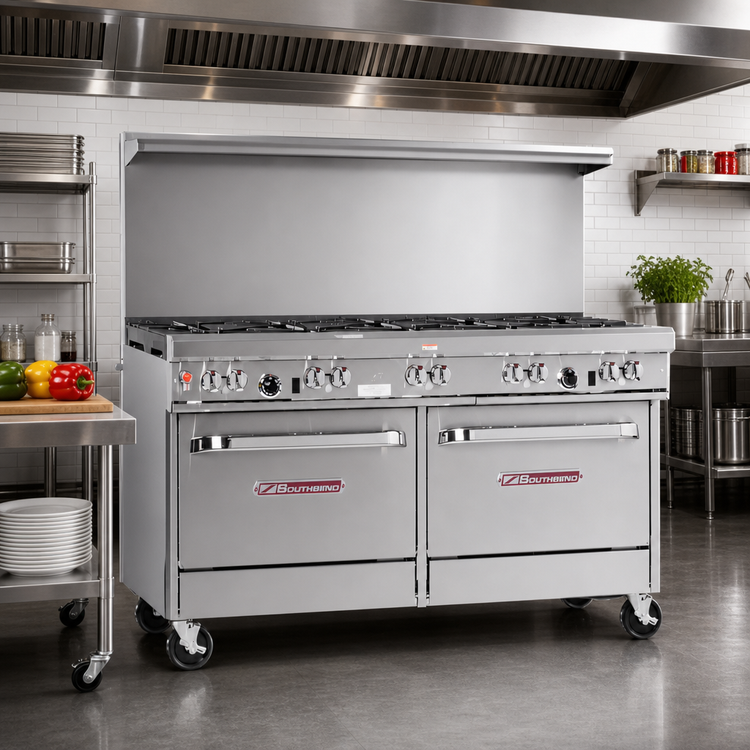

Southbend Ultimate 60" Gas Restaurant Range
9-Burner Top • Convection Oven • Cabinet Base • 319,000 BTUEngineered for high-volume kitchens that refuse to compromise, the Southbend Ultimate Series 60" range delivers the speed, consistency, and durability chefs expect from a true workhorse. A versatile open-top configuration, full-size convection oven, and convenient storage cabinet give you three critical cooking solutions in a single, space-saving footprint.
Why You’ll Love It

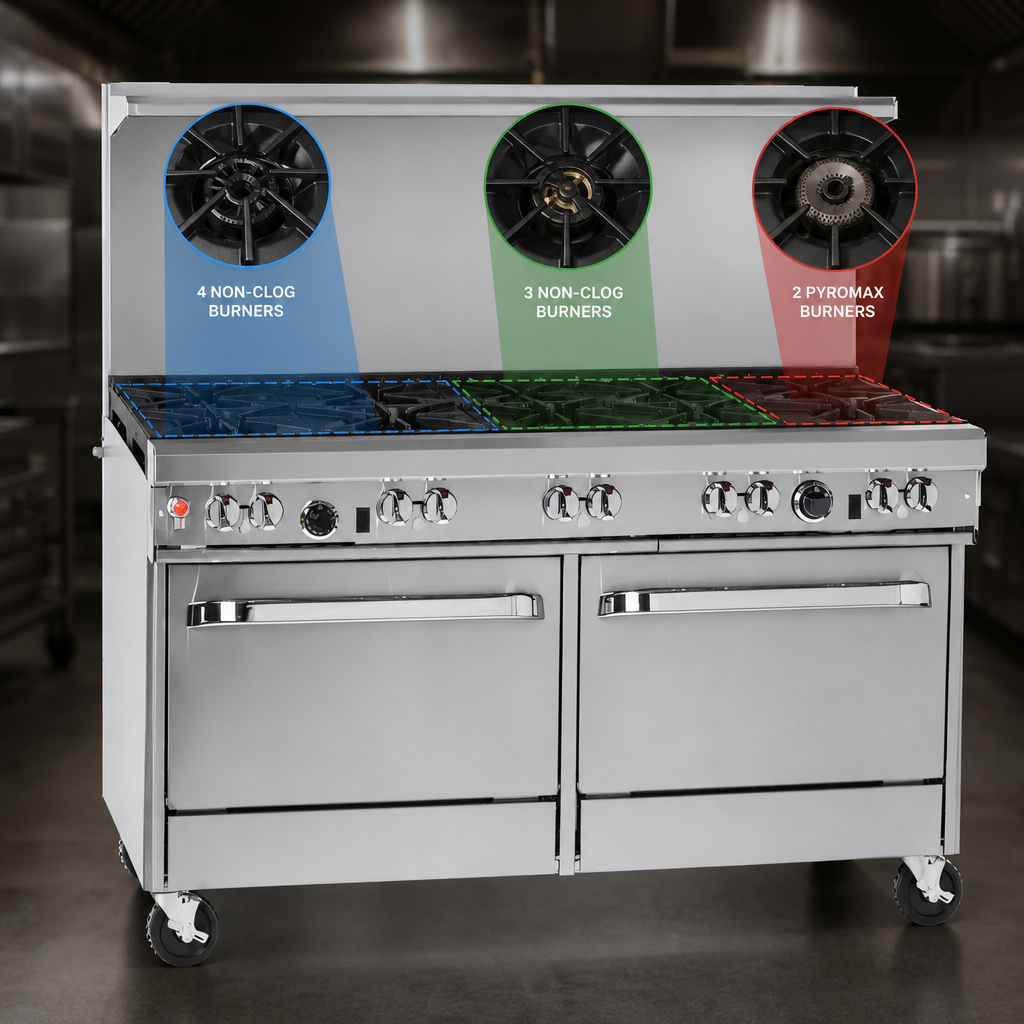

- High-output burner mix – 9 open burners (see chart below) produce up to 287,000 BTU on the cook-top alone.
- Premium Pyromax™ power – two rear 40 kBTU Pyromax burners tackle stockpots, woks, and rapid boils without slowing the line.
- Lifetime non-clog cast-iron burners with removable bowls resist grease build-up for better flame integrity and easy cleaning.
- Wavy grates on the left bank cradle small pans yet allow large pots to slide smoothly across the entire surface.

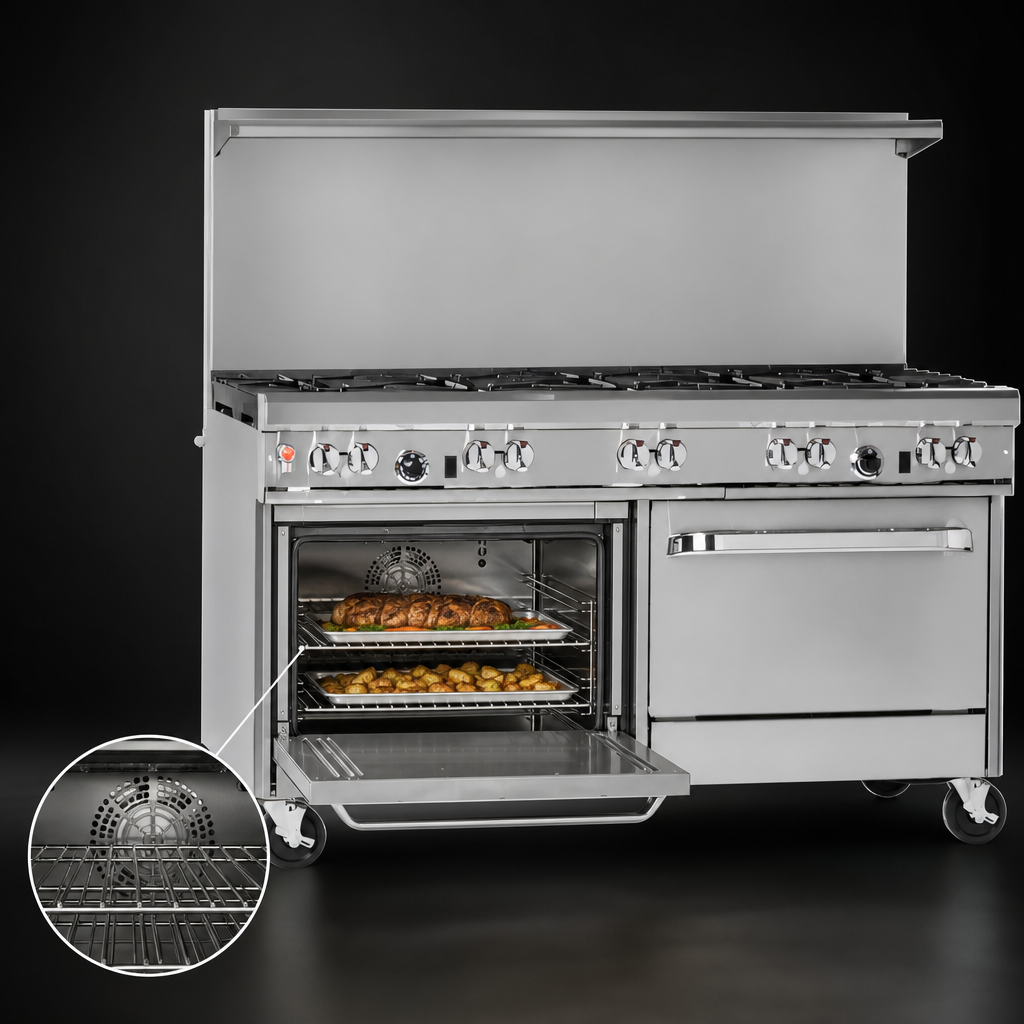

- Full-size convection oven – 32 kBTU burner, battery-spark ignition, and a 175-550 °F thermostat circulate heat evenly around full-size sheet pans (3 racks • 5 positions).
- Integrated cabinet base keeps sheet pans and small-wares within arm’s reach.
- 22.5" stainless flue riser with heavy-duty shelf provides extra plating or garnish space.
- Front-mounted manual gas shut-off and factory pressure regulator for fast, safe service.
- 6" adjustable stainless legs are standard; optional casters available.
- Certified commercial-ready – CSA & NSF listed. One-year parts & labor warranty.
Performance at a Glance
| Overall width | 60 3/4" (1543 mm) |
|---|---|
| Overall depth * | 42 1/8" (1070 mm) |
| Cook-top height | 37" (940 mm) |
| Cook-top configuration |
3 × 33 kBTU non-clog burners (front-right) 2 × 40 kBTU Pyromax burners (rear-right) 4 × 27 kBTU non-clog burners with wavy grates (left) |
| Total open-top BTU | 287,000 |
| Convection oven | 32 kBTU burner • 26" W × 24" D × 14" H cavity • 3 racks (5 positions) |
| Total range BTU | 319,000 |
| Gas connection | 3/4" NPT, rear (factory regulator included) Min. inlet pressure: 7" WC (Natural) |
| Electrical (oven fan) | 115 V / 60 Hz / 1-ph • 5.9 A • 6' cord & 3-prong plug |
| Certifications | CSA, NSF |
*Depth includes control panel and oven door; add 22.5" for flue riser height.
What’s in the Box
- (1) Southbend Ultimate 60" range, fully assembled
- (3) chrome-plated oven racks
- (2) one-piece stainless drip trays
- Factory installed pressure regulator & 22.5" flue shelf
- Owner’s manual & warranty registration
Peace-of-Mind Warranty
Southbend backs every Ultimate Range with a one-year, on-site parts & labor warranty when serviced by an authorized Southbend technician. Intended for commercial installations only.
