Southbend (Middleby) 4602AC-4TR Ultimate Gas Ranges
$19,077.00
Unit price
/
Unavailable
Description
Southbend “Ultimate” 60" Restaurant Range
48" Thermostatic Griddle • (2) 27 K BTU Non-Clog Burners w/ Wavy Grates • Convection Oven/Cabinet Base • 166,000 BTUBuilt for busy kitchens that refuse to compromise on versatility or durability, the Southbend Ultimate Series 460 delivers high-output griddle capacity, open-top cooking flexibility and true convection baking in one rock-solid, stainless-steel platform.
Why It Belongs on Your Line

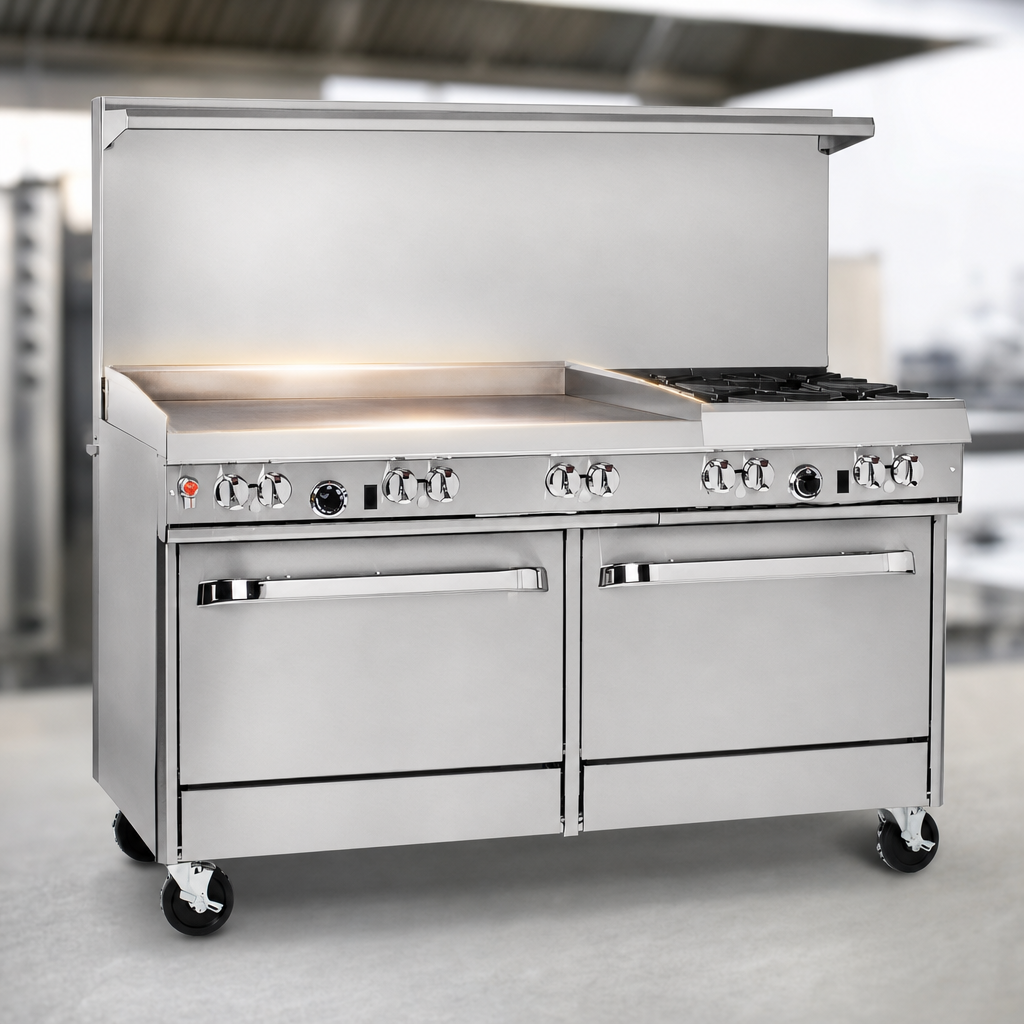

- Massive 48" griddle (1" plate) with thermostatic controls for accurate zone cooking – perfect for breakfast rushes, searing proteins or finishing menu favorites.
- (2) 27,000 BTU non-clog burners with exclusive wavy cast-iron grates handle stock-pots up to 14".
- 32,000 BTU convection oven (battery-spark ignition) circulates heat evenly around full-size sheet pans; includes 3 racks with 5 positions.
- Right-hand stainless cabinet base keeps sheet pans, smallwares or dry goods within arm’s reach (doors available at no charge).
- 22.5" flue riser & heavy-duty shelf add convenient plating space and venting height.
- Front-mounted manual gas shut-off plus factory regulator for fast, code-compliant installs.
- All-stainless front, sides, shelf & 6" adjustable legs stand up to daily cleaning and corrosive kitchen environments.
- Certified safe & sanitary: cCSAus, CSA Flame, CSA Star & NSF.
- Backed by Southbend’s 1-year parts & labor warranty and over a century of commercial range expertise.
Performance at a Glance
| Fuel / Connection | Natural Gas, 3/4" NPT (7" W.C. minimum inlet) |
|---|---|
| Total Input | 166,000 BTU/hr |
| Open Burners | (2) 27 K BTU non-clog burners with wavy grates |
| Griddle | 48" W x 27" D, 80 K BTU, 175 °F – 550 °F thermostatic range |
| Oven | 32 K BTU convection, 14" H x 26" W x 24" D cavity, 115 V/60/1 plug (5.9 A) |
| Dimensions (WxDxH) | 60 ¾" x 42 ⅛" x 59 ½" (to top of flue shelf) • 37" cooking height |
| Shipping Weight | Approx. 1,075 lb |
| Series / Model | Ultimate 460 Series – configuration AC (Burners-Griddle-Convection/Cabinet) |
What’s Included
- (3) chrome-plated oven racks
- 6" stainless adjustable legs
- Factory pressure regulator
- User & installation manual
Warranty
1-year limited parts & labor warranty. Full terms available at the Southbend Service & Parts portal.
Installation Reminder: This appliance is intended for commercial kitchens only.
For non-quarry tile floors, oversized cookware use and ventilation requirements, follow
the guidelines in the installation manual to maintain warranty coverage and operator safety.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, cCSAus, CSA Star, CSA Flame
Height
59.5in
Width
60.75in
Depth
43.6in
Shipping Weight
1075.0lbs
Exterior Finish
stainless steel front & sides
Top
(2) open burners, (1) 48" griddle with thermostats
Plate Thickness
.500" = 1/2"
Control Type
thermostatic controls
Base
(1) convection oven, (1) cabinet
Vent
backriser with hi-shelf
Specifications
Ultimate Restaurant Range, gas, 60", (2) non-clog burners, wavy grates, 48" griddle right, thermostatic controls, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 166,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
