Southbend (Middleby) 4602AC-3TR Ultimate Gas Ranges

Southbend “Ultimate” 60" Gas Restaurant Range

Engineered for high-volume kitchens that refuse to compromise, the Southbend Ultimate Series combines rugged construction with the cooking flexibility chefs demand. This 60" model blends blazing open-top performance, a precision thermostatic griddle, and a full-size convection oven—while still giving you a stainless storage cabinet for dry goods or sheet pans.

Key Highlights

• 4 patented 27,000 BTU non-clog burners with lifetime-clog-free design.
• Cast-iron wavy grates maximize pan stability and let cookware slide effortlessly across the entire top.

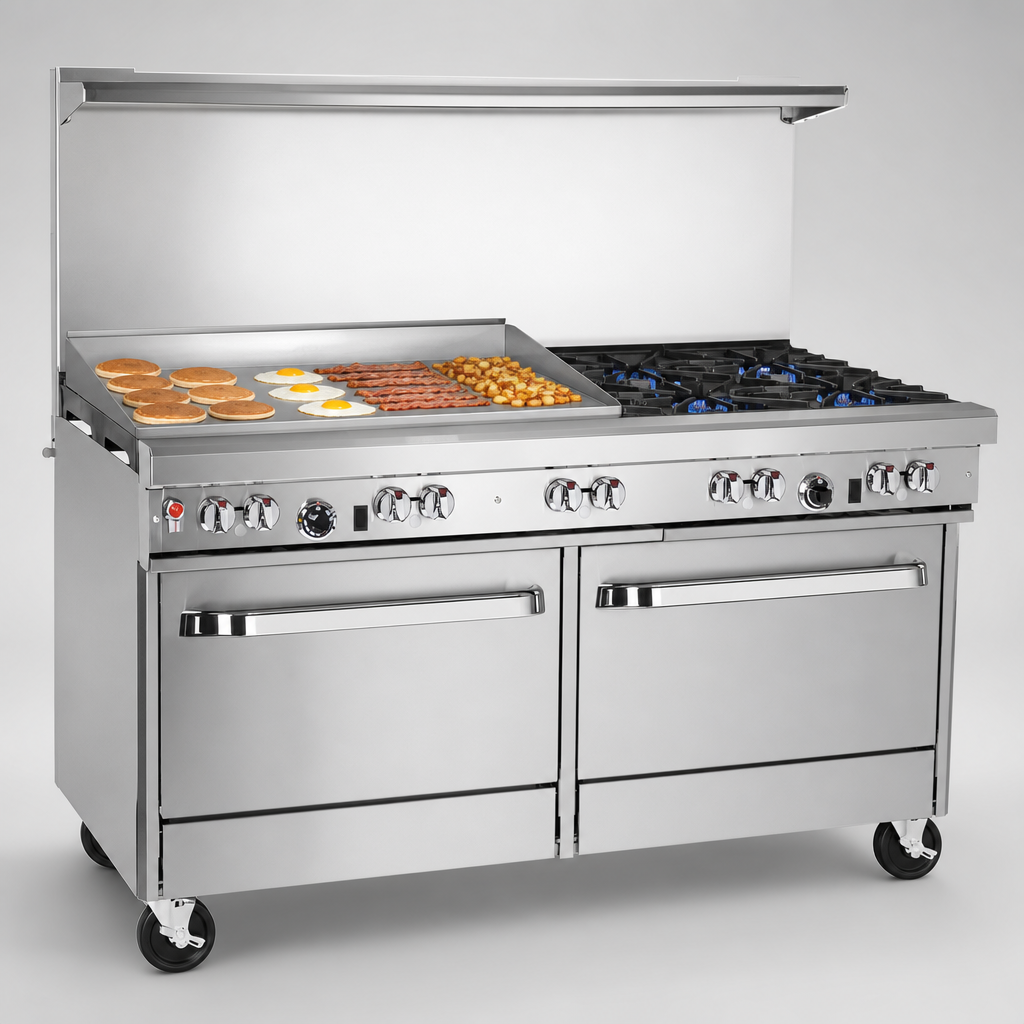

• 36" right-hand griddle (½" polished steel) with thermostatic control from 175–550 °F for all-day consistency.
• 32,000 BTU convection oven featuring battery spark ignition, porcelain-enameled cavity, and 3 adjustable racks.
• Left-side stainless cabinet base provides quick-grab storage; optional doors available at no charge.
• Front-mounted main gas shut-off and factory-installed regulator for fast, code-compliant hook-up.
• 22½" flue riser with integrated shelf – perfect for holding plates, spices, or smallwares.
• All-stainless front, sides, 4" front rail & shelf; mounted on 6" adjustable stainless legs.
• Total input: 204,000 BTU/hr; cCSAus, CSA Flame, CSA Star & NSF certified.

Why It Outperforms

• Even-Heat Wavy Grates cradle round-bottom cookware, eliminate cold spots, and let you slide stock pots without lifting.
• Precision Griddle Control holds set-point temperature within ±10 °F—ideal for smash burgers, tortillas, or breakfast rush.
• High-Velocity Convection fan shortens bake times up to 25 % while delivering perfectly even browning.
• Tool-Free Cleaning – two full-width drip trays and lift-off cast-iron tops come out in seconds.
• Battery spark ignition keeps you cooking even during a power outage; no standing pilot in the oven means lower energy cost.

Technical Specifications

Certifications & Warranty

The Ultimate Series is listed to the latest sanitation and safety standards and ships with a 1-year, on-site parts & labor warranty backed by Southbend’s nationwide network of authorized service agencies.

Need easy monthly payments? Ask us about Middleby Equipment Financing.
