Southbend (Middleby) 4602AC-2RR Ultimate Gas Ranges
Description

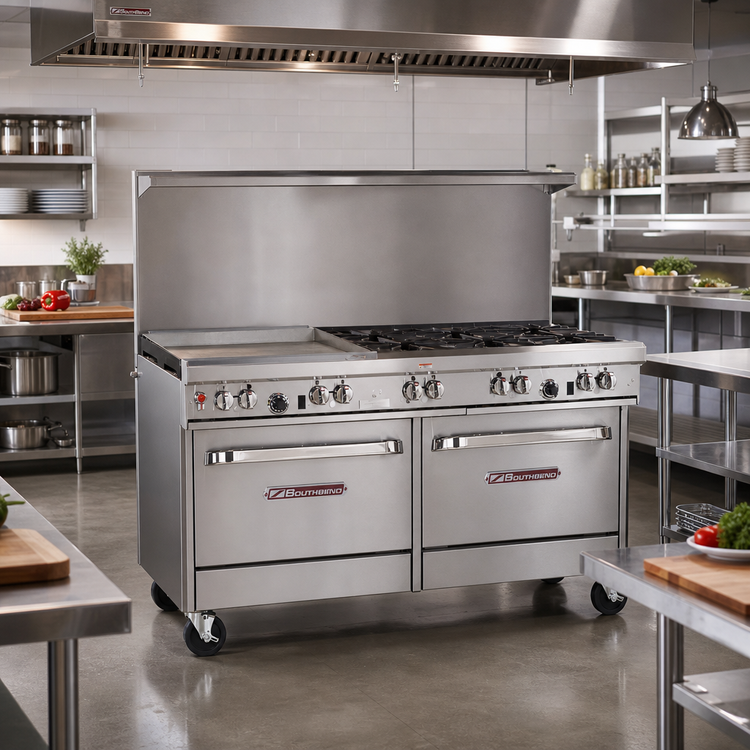

Southbend Ultimate 60" Gas Restaurant Range
6 Open Burners • 24" Raised Griddle/Broiler • Convection Oven & Cabinet BaseBuilt for kitchens that never slow down, the Ultimate Series delivers the muscle of a heavy-duty range, the finesse of precise griddle work, and the consistency of a bakery-grade convection oven—all in one 60" footprint.
Key Features
- 227,500 BTU total output for high-volume production
- (6) 27,000 BTU patented non-clog cast-iron burners with standing pilots
- Heavy-duty wavy grates—seamless pan movement and 14" stock-pot capacity
- 24" raised griddle/broiler
- ½" polished steel plate, manual controls
- Broiler directly beneath for finishing steaks, melts & more
- 64,000 BTU dedicated section
- 32,000 BTU convection oven
- Battery spark ignition—no electrical relight kits needed
- 175 °F – 550 °F thermostat, ½ HP fan motor
- Porcelain-enameled cavity (14" H × 26" W × 24" D)
- (3) chrome racks, 5 positions
- Stainless steel cabinet base for sheet pans, smallwares or bulk dry goods
- 22½" flue riser with integrated utensil/appliance shelf
- 4" stainless front rail & front-mounted gas shut-off for fast pot-line changes
- 6" adjustable stainless legs (caster kit optional)
- Factory-installed regulator; single ¾" NPT rear gas connection
- Certified cCSAus, CSA Flame & Star, NSF
At-a-Glance Specs
| Overall Width | 60 ¾" (1543 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Cook-Top Height | 37" (940 mm) |
| Cooking Surface | 27" deep |
| Open Burners | (6) × 27,000 BTU non-clog (standing pilot) |
| Raised Griddle/Broiler | 24" wide, 64,000 BTU |
| Convection Oven | 32,000 BTU, 175 – 550 °F, includes 3 racks |
| Base (RH) | Stainless cabinet, full-size sheet-pan storage |
| Total BTU | 227,500 BTU/hr (natural gas) |
| Gas Inlet | ¾" NPT, min. 7" WC (NG) / 11" WC (LP) |
| Electrical | 115 V, 5.9 A, 6' cord & 3-prong plug (oven fan) |
| Warranty | 1-year parts & labor (see details below) |
Why Chefs Choose Ultimate
- One station, endless menus—sear, sauté, griddle, broil & bake simultaneously.
- Wavy grates keep even 1-qt saucepans stable while still handling large stock pots.
- Battery spark oven ignition means no standing pilots inside the oven cavity—cooler kitchen & lower gas bills.
- Easy-clean porcelain oven liner & two full-width drip trays under the burner box cut daily cleanup time.
Included With Your Purchase
- (3) Heavy-duty oven racks
- Factory pressure regulator
- Front rail mounted gas shut-off valve
- User, installation & warranty documentation
Limited Warranty
Southbend backs this range with a 1-year parts & labor warranty performed by an authorized Southbend service agency. Certain consumables (ignitors, light bulbs, etc.) carry a 90-day warranty. See full warranty statement for exclusions and installation requirements.
