Southbend (Middleby) 4602AC-2GR Ultimate Gas Ranges
Southbend (Middleby) 4602AC-2GR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4602AC-2GR Ultimate Gas Ranges
Description

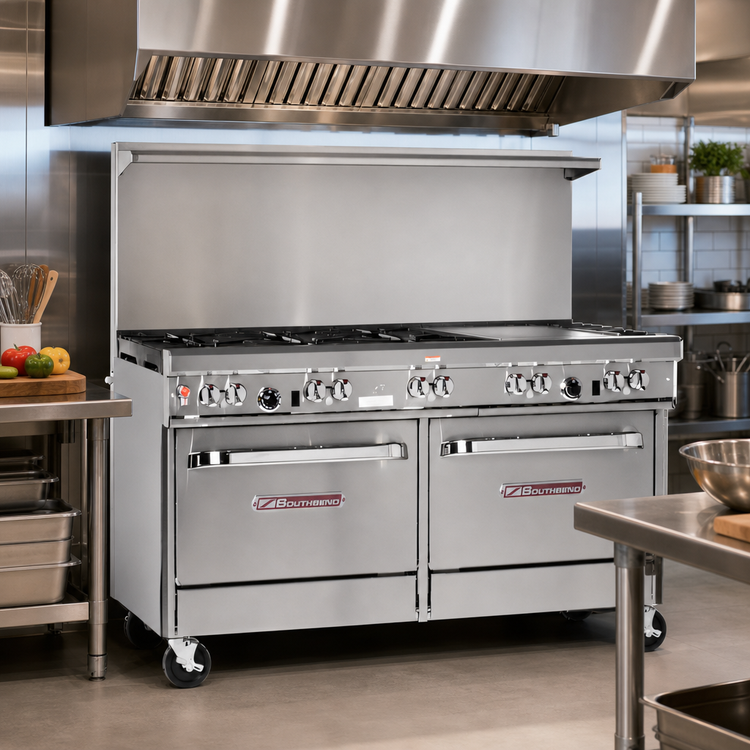

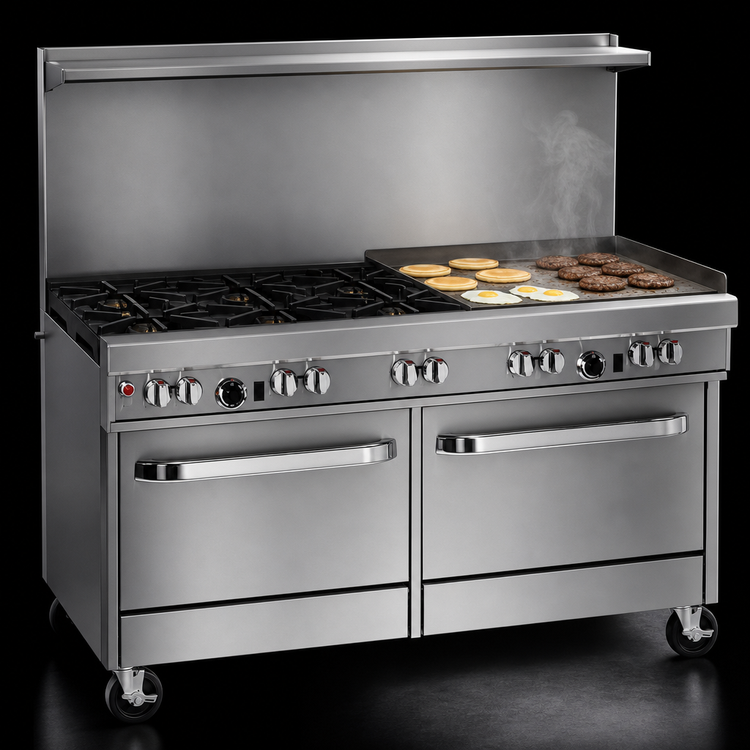

Southbend “Ultimate” 60" Gas Restaurant Range
6 Open Burners • 24" Right-Side Griddle • Convection Oven + Cabinet • 242,000 BTUGive your kitchen the power, versatility, and rugged reliability it deserves with the Southbend Ultimate 60-inch Restaurant Range. Engineered for high-volume restaurants, hotels, and culinary schools, this all-in-one workhorse combines six lifetime-non-clog burners, a precision 24 inch griddle, a full-size convection oven, and a convenient cabinet base—all wrapped in easy-to-clean stainless steel.
Why You’ll Love It
- True multitasking power – sauté, boil, sear, grill, bake, and keep pans handy, all on a single 60" footprint.
- Non-clog cast-iron burners (6 × 27 kBTU) with wavy grates for superior pot stability and even heat.
- 24" polished steel griddle (64 kBTU) on the right side—perfect for burgers, breakfast, and everything in-between.
- Battery-spark convection oven (32 kBTU) delivers fast, even baking and includes three chrome racks.
- Stainless cabinet base on the left keeps sheet pans, hotel pans, or smallwares within arm’s reach.
- Built for the long haul – stainless front, sides, 4" front rail & 6" adjustable legs stand up to daily punishment.
- Front-mounted gas shut-off & factory regulator simplify installation and daily operation.
- Certified cCSAus, CSA Flame & Star, and NSF for peace-of-mind compliance.
At-a-Glance Specs
| Model | Ultimate 60" Range (convection oven & cabinet base) |
|---|---|
| Total Input | 242,000 BTU/hr (natural gas) |
| Open Burners | Six 27,000 BTU non-clog cast-iron burners with standing pilots & wavy grates |
| Griddle | 24" W × 27" D, 1/2" smooth polished steel plate, manual controls, 64,000 BTU |
| Oven | 32,000 BTU convection, 175 – 550 °F thermostat, (3) racks, porcelain interior 26" W × 24" D × 14" H |
| Base (Left) | Stainless steel cabinet with optional no-charge doors |
| Cooking Surface Height | 37" |
| Overall Dimensions | 60 ¾" W × 42 ⅛" D × 59 ½" H (to top of 22 ½" flue riser shelf) |
| Gas Connection | ¾" NPT (right rear by default; opposite side if griddle is on left) |
| Electrical (oven motor) | 115 V, 5.9 A, 6' cord & 3-prong plug |
| Warranty | 1-year parts & labor (see details below) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
What’s in the Box
- (1) Southbend Ultimate 60" gas range as configured above
- (3) Chrome oven racks with five rack positions
- Factory-installed pressure regulator
- 6" adjustable stainless legs
- Owner’s & installation manual
Southbend Limited Warranty
Your new Ultimate range is backed by Southbend’s one-year limited parts & labor warranty when installed in a commercial setting by an authorized technician. Register your unit and view full terms at southbendnc.com/service-and-parts.
