Southbend (Middleby) 4602AC-2CR Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range
6 Non-Clog Burners • 24" Right-Side Charbroiler • Convection Oven & Cabinet BaseBuilt for the busiest kitchens, the Southbend Ultimate 60" range delivers the power, flexibility and durability chefs demand—all in one rock-solid footprint. Slide stock pots across the seamless wavy grates, finish steaks on the integrated charbroiler, and depend on the high-performance convection oven for perfectly even bakes.
Why You’ll Love It
- Six (6) 27,000 BTU non-clog burners with lifetime cast-iron heads.

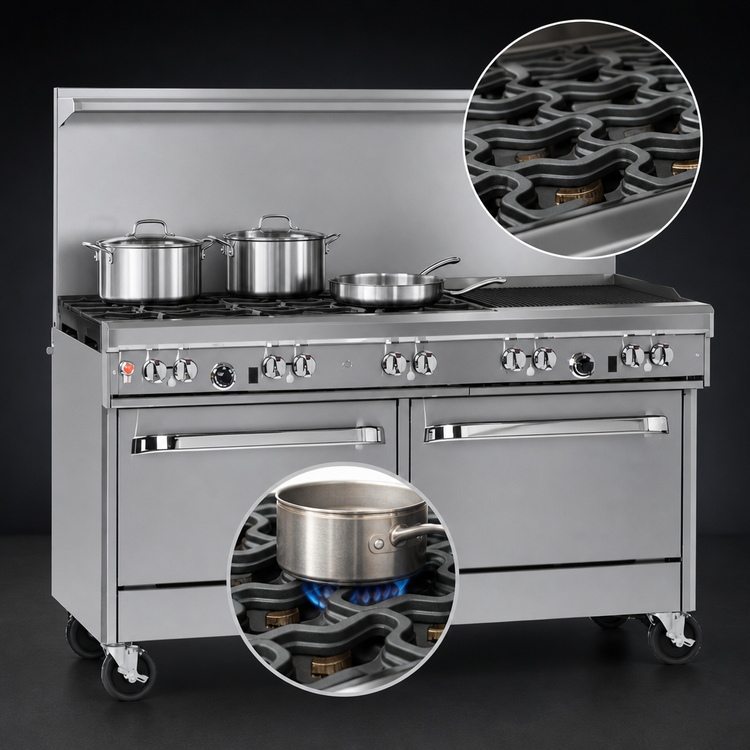

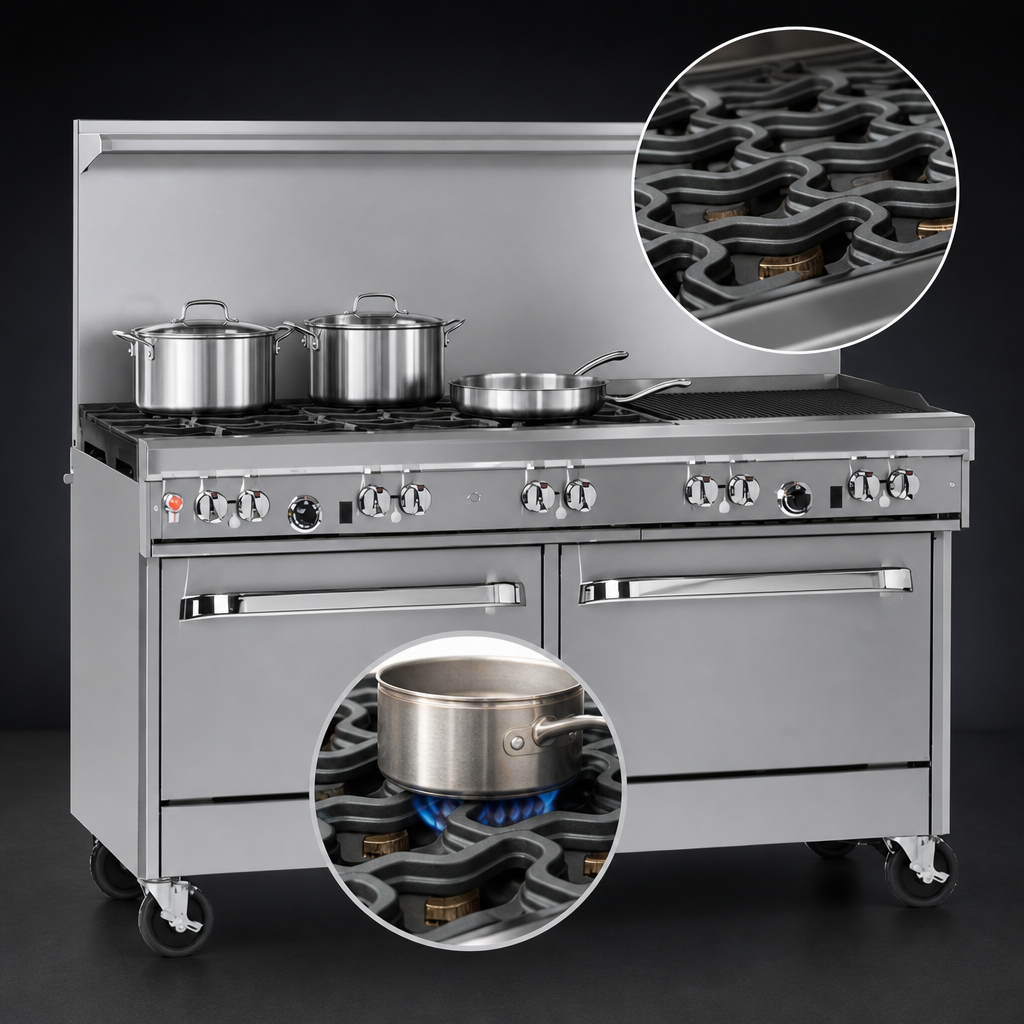

- Exclusive wavy grate system creates a single, continuous cooking surface—no more balancing pans.
- 24" cast-iron charbroiler (right side) rated at 64,000 BTU for authentic flame-kissed flavor.
- Left-side convection oven, 32,000 BTU, battery spark ignition & 1/2 hp fan for fast, even heat.
- Includes three chrome-plated oven racks with five rack positions.
- Full-width stainless 22.5" flue riser with convenient overshelf for plating and smallwares.
- Stainless steel front, sides, shelf & 6" adjustable legs—built to withstand daily scrubbing.
- Front-mounted manual gas shut-off and factory-installed regulator for quick service access.
- Field convertible for Natural or LP gas; 3/4" rear gas connection.
- CSA & NSF certified; 1-year parts & labor warranty.
Technical Specifications
| Model | Ultimate 60" Range – AC Base |
|---|---|
| Overall width | 60 3⁄4" (1543 mm) |
| Overall depth | 42 1⁄8" (1070 mm) |
| Cooking height | 37" working surface | 59 1⁄2" with flue riser |
| Burners | 6 open – 27,000 BTU each (162,000 BTU total) |
| Charbroiler | 24" right-side, 64,000 BTU |
| Oven type / rating | Convection, 32,000 BTU, 175–550 °F thermostat |
| Oven interior (H × W × D) | 14" × 26" × 24" (fits full-size sheet pans both ways) |
| Storage | Right-side stainless cabinet base (doors included) |
| Total input | 258,000 BTU/hr |
| Gas connection | 3/4" NPT (7" W.C. Natural | 11" W.C. LP) |
| Electrical | 115 V / 60 Hz / 1 ph, 6 ft cord & plug, 5.9 A (convection fan) |
| Certifications | CSA Gas • CSA Sanitation • NSF |
| Warranty | 1 year parts & labor (see Southbend limited warranty) |
What’s in the Box
- (4) removable drip trays under the burners
- (3) oven racks
- Factory installed pressure regulator
- 6" stainless adjustable legs
- Owner’s manual & warranty registration
