Southbend (Middleby)  |  Ultimate  |  SKU: 4602AA-7R

Southbend (Middleby) 4602AA-7R Ultimate Gas Ranges

$17,573.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

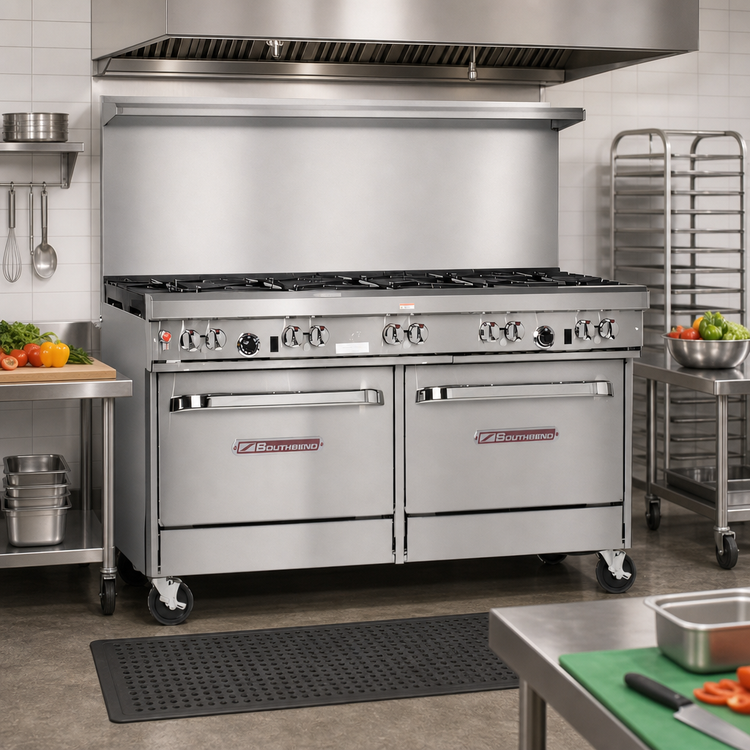

Southbend Ultimate 60" Gas Restaurant Range

4 Non-Clog Burners • 4 Pyromax® Burners • Double Convection Oven Base • 332,000 BTU

Built to dominate the rush, the Southbend Ultimate 60" range delivers extreme burner power, high-capacity convection baking and rugged stainless-steel construction in one reliable workstation.

Key Cooking Power

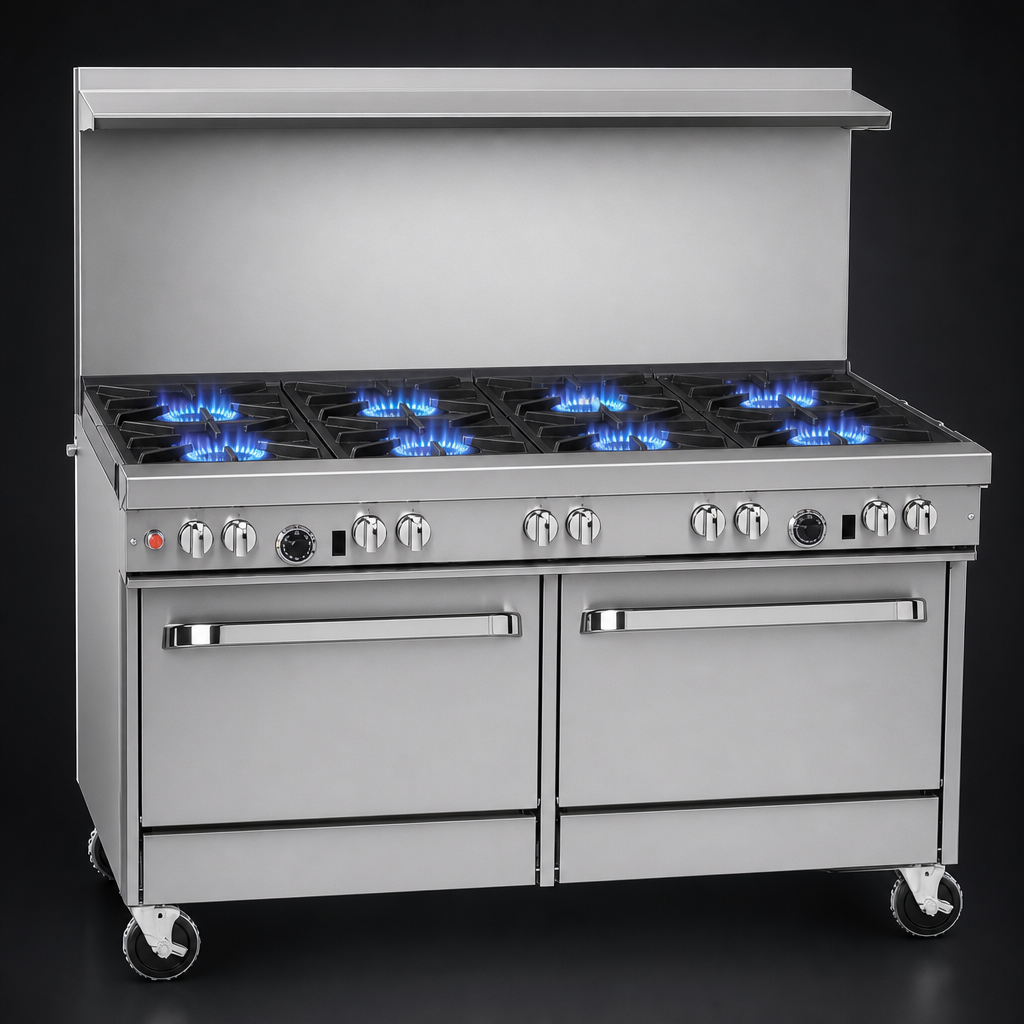

  • Eight open-top burners

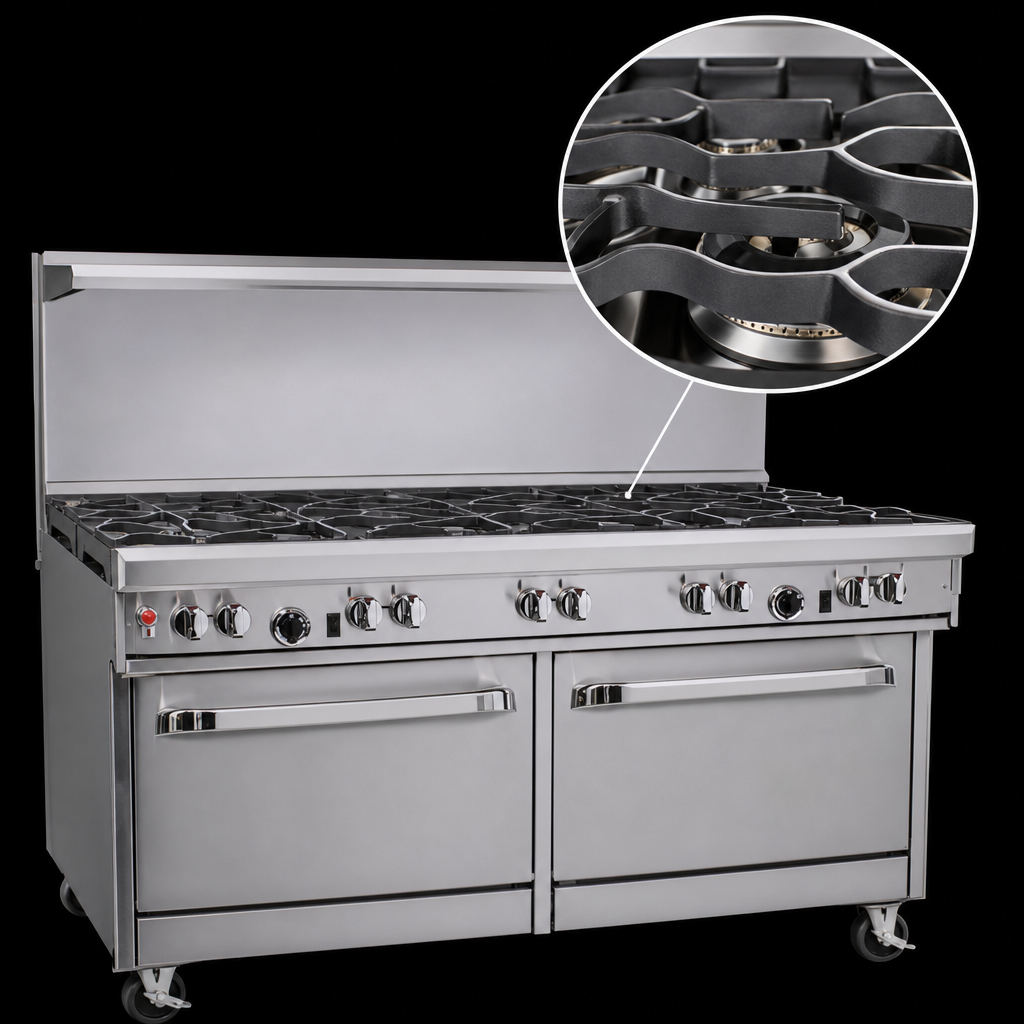

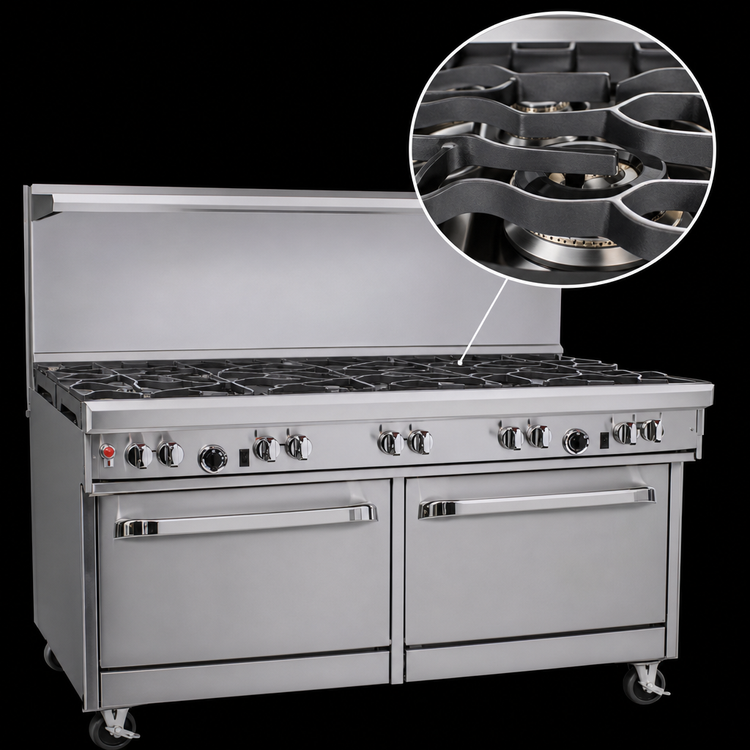

    • 4 × 27,000 BTU lifetime non-clog burners with patented wavy cast-iron grates for maximum pan stability.
    • 4 × 40,000 BTU Pyromax® high-output burners (right side) with built-in drip-ring port protection.
  • Standing pilots for instant lighting plus front-mounted master gas shut-off.
  • 22 ½" flue riser with heavy-duty storage shelf keeps sauté pans and seasonings within arm’s reach.
  • 4" stainless landing rail for plating and garnish work.

Twin Convection Ovens

  • Each oven: 32,000 BTU with battery-spark ignition (no pilot lighting required).
  • Temperature range: 175 °F – 550 °F (79 °C – 288 °C).
  • Porcelain-enameled interior (14" H × 26" W × 24" D) fits full-size sheet pans front-to-back or side-to-side.
  • 3 chrome racks per cavity with 5 rack positions for flexible baking loads.
  • ½ HP, 115 V fan motor promotes fast, even heat; on/off switch allows still-oven operation as needed.

Construction & Convenience

  • Stainless steel front, sides, shelf and 6" adjustable legs stand up to daily cleaning.
  • Two one-piece drip trays make grease and crumb removal effortless.
  • Factory-installed regulator and ¾" rear gas connection speed installation.
  • CSA & NSF listed for gas safety and sanitation.
  • 1-year limited parts & labor warranty backed by the Southbend service network.

Specifications

Overall width 60 ¾" (1543 mm)
Overall depth 42 ⅛" (1070 mm)
Cooking surface height 37" (940 mm)
Total BTU input 332,000 BTU/hr (natural gas)
Open burners 4 × 27 k BTU non-clog & 4 × 40 k BTU Pyromax
Ovens 2 × 32 k BTU convection, battery-spark ignition
Gas connection ¾" NPT (rear); min. inlet 7" W.C. NG / 11" W.C. LP
Electrical (fans) 115 V / 60 Hz / 1 ph, 5.9 A, six-foot cord & plug
Flue riser 22 ½" with integrated stainless shelf
Crated weight ≈ 1,075 lb (488 kg)
Certifications CSA, NSF
Commercial installation only. Unit must be set under a properly vented hood and installed to all local codes.

Looking for griddles, charbroilers or alternate burner layouts? Ask about additional factory-configured options in the Southbend Ultimate Series.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

43.6in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Top

(8) open burners

Base

(2) convection ovens

Specifications

Ultimate Restaurant Range, gas, 60", (4) non-clog burners, wavy grates, (4) pyromax burners right, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 332,000 BTU, CSA, NSF
