Southbend (Middleby) 4602AA-7L Ultimate Gas Ranges
Description

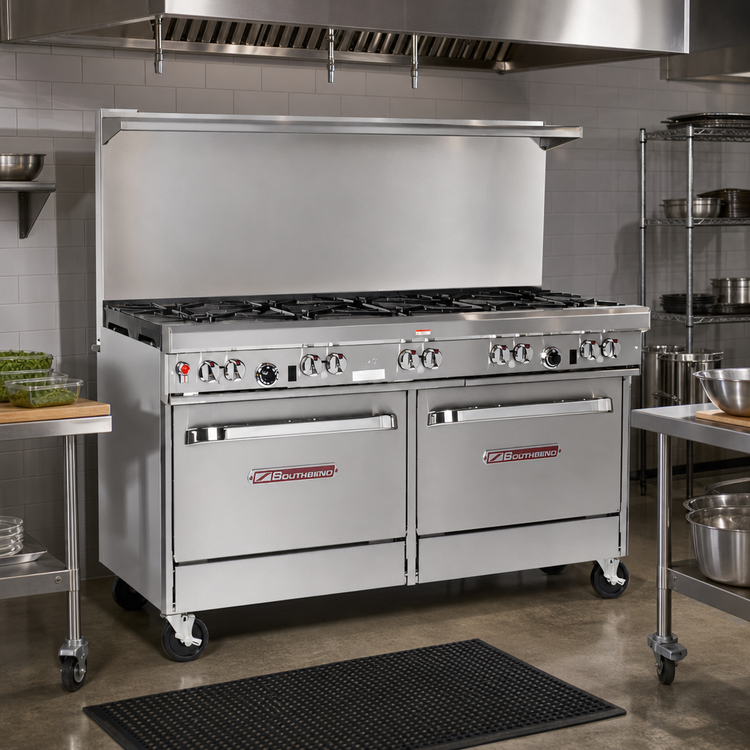

Southbend “Ultimate” 60" Gas Restaurant Range – 4 Non-Clog + 4 Pyromax Burners, Double Convection Ovens
Model 460 Series | Item #7706 | 332,000 BTUGive your kitchen the firepower it deserves. Southbend’s 60" Ultimate Range combines eight high-performance open burners with two full-size gas convection ovens, all wrapped in heavy-gauge stainless steel and topped with a sturdy 22 ½" flue riser/shelf. From searing in sauté pans to roasting hotel pans, this single footprint handles every ticket the rush can throw at it.

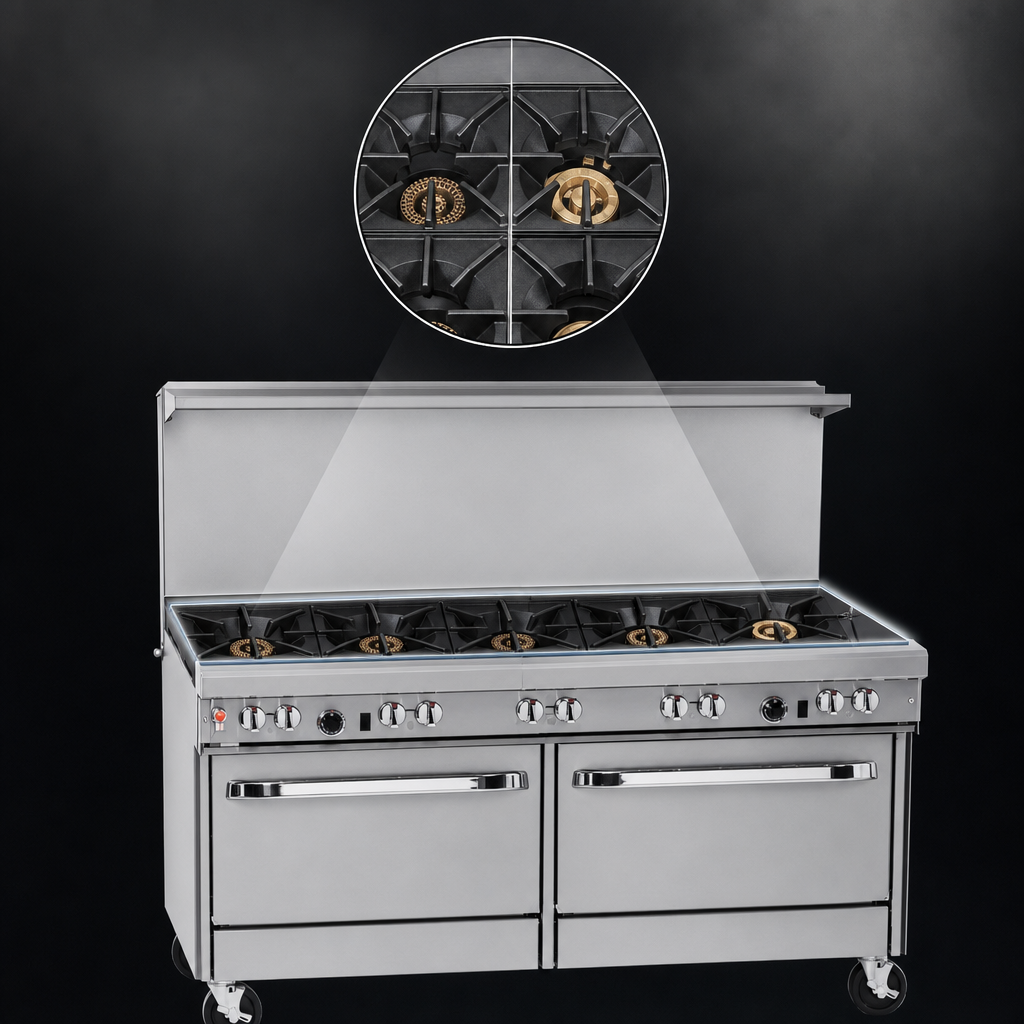

Top-side power & flexibility
- 4 x 27,000 BTU cast-iron non-clog burners with lifetime-clog-free ports
- 4 x 40,000 BTU Pyromax™ high-output burners (left bank) for lightning-fast boils & woks
- One-piece wavy cast-iron grates create a full, pot-friendly surface & maximize heat transfer
- Standing pilots for instant lighting; front-mounted manual gas shut-off controls the entire range
- Two removable drip trays span the width for quick cleanup

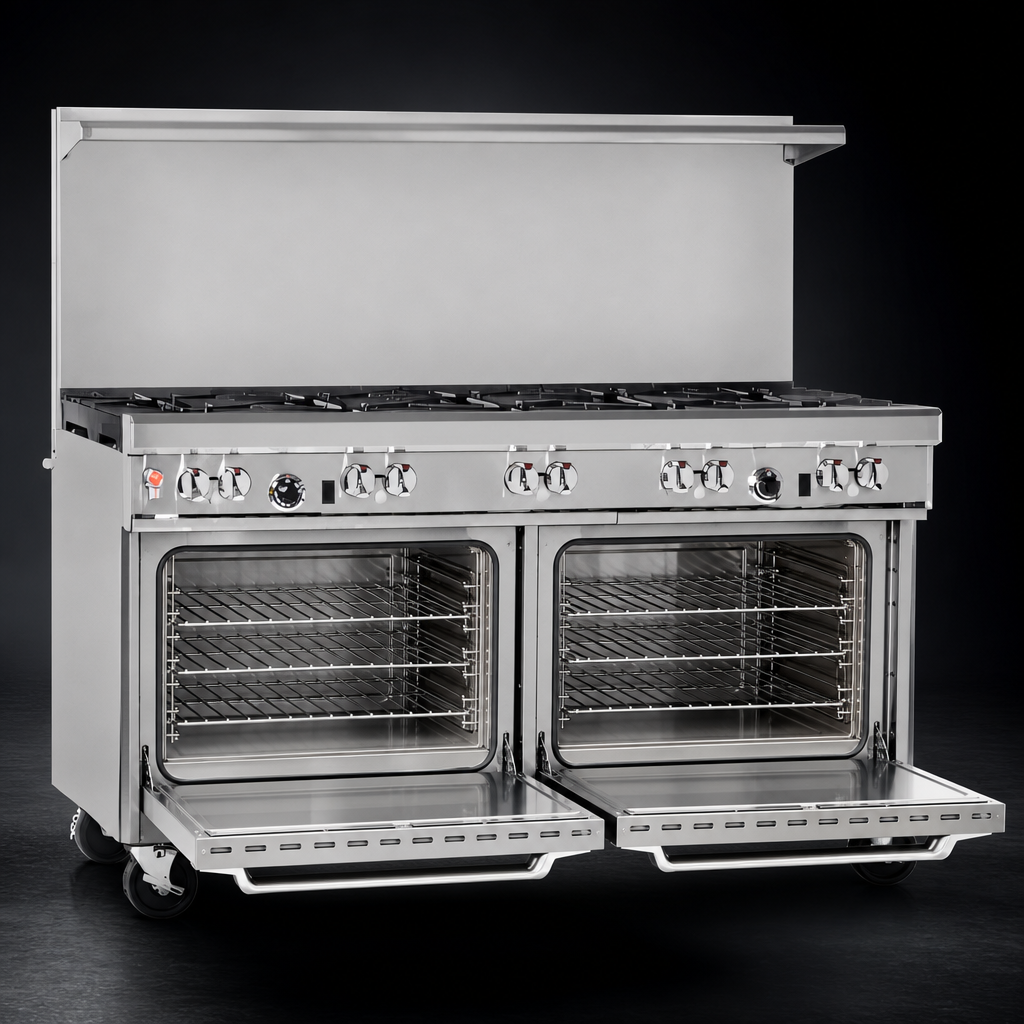

Dual convection ovens
- 2 x 32,000 BTU gas convection cavities with battery-spark ignition
- 14"H × 26"W × 24"D porcelain-enameled interiors – three chrome racks & five rack positions each
- 175 °F – 550 °F thermostat range for everything from slow roasts to high-heat baking
- 1/2 hp, 115 V fan motors (cord & NEMA 5-15P plug included) keep air moving and cooking even
Built to outlast your busiest shifts
- 4" stainless front rail, stainless front, sides & high-shelf resist corrosion and wipe clean fast
- 6" stainless steel adjustable legs standard (casters optional)
- Factory-installed regulator and 3/4" rear gas connection for easy hook-up
- CSA & NSF listed for commercial kitchens
- Backed by a 1-year parts & labor warranty
Specification overview
| Exterior width | 60 ¾" (1543 mm) |
|---|---|
| Exterior depth (with rail) | 34" (864 mm) |
| Cooking surface height | 37" (940 mm) |
| Number / type of burners | 4 × 27 k BTU non-clog & 4 × 40 k BTU Pyromax |
| Ovens | 2 × gas convection, porcelain interior, 3 racks each |
| Total input | 332,000 BTU/hr |
| Gas connection | 3/4" NPT, 7" WC Natural / 11" WC LP (field convertible) |
| Electrical (fans) | 115 V 1-ph, 5.9 A per oven (6' cord & plug supplied) |
| Flue riser | 22 ½" stainless riser with integrated utensil shelf |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see manufacturer terms) |
Photos may show optional casters and accessories that are sold separately.
