Southbend (Middleby) 4602AA-6R Ultimate Gas Ranges
Description

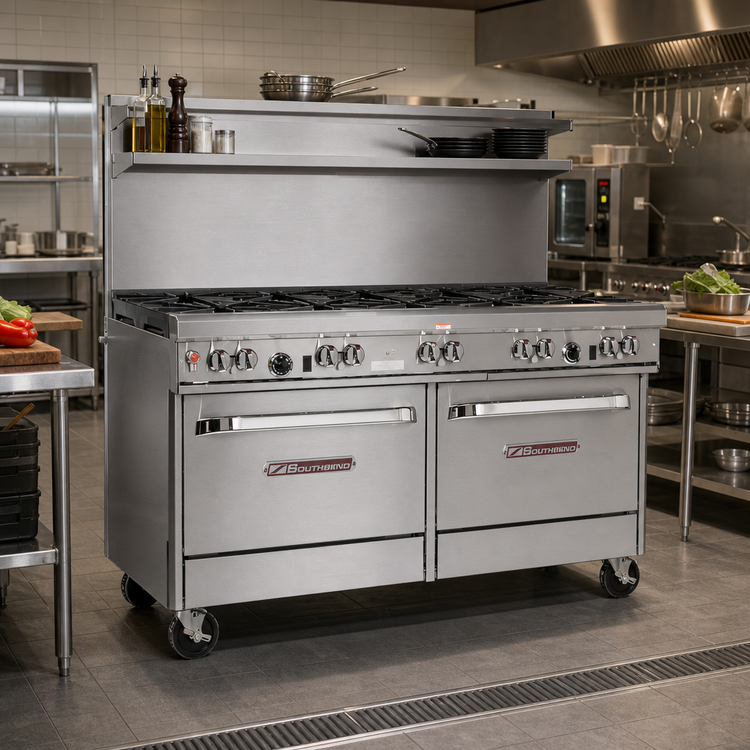

Ultimate 60" Gas Restaurant Range
3 Star/2 Pyromax/4 Non-Clog Burners • Twin Convection Ovens • 351,000 BTUBuilt to keep the busiest kitchens moving, the Southbend Ultimate 60" range delivers massive fire-power, even heat and rock-solid construction in one service-ready platform. A smart split-burner layout lets you jump from ultra-high-heat sauté to slow-simmer without losing a step, while two full-size convection ovens multiply your finishing capacity.
Why This Configuration Rocks

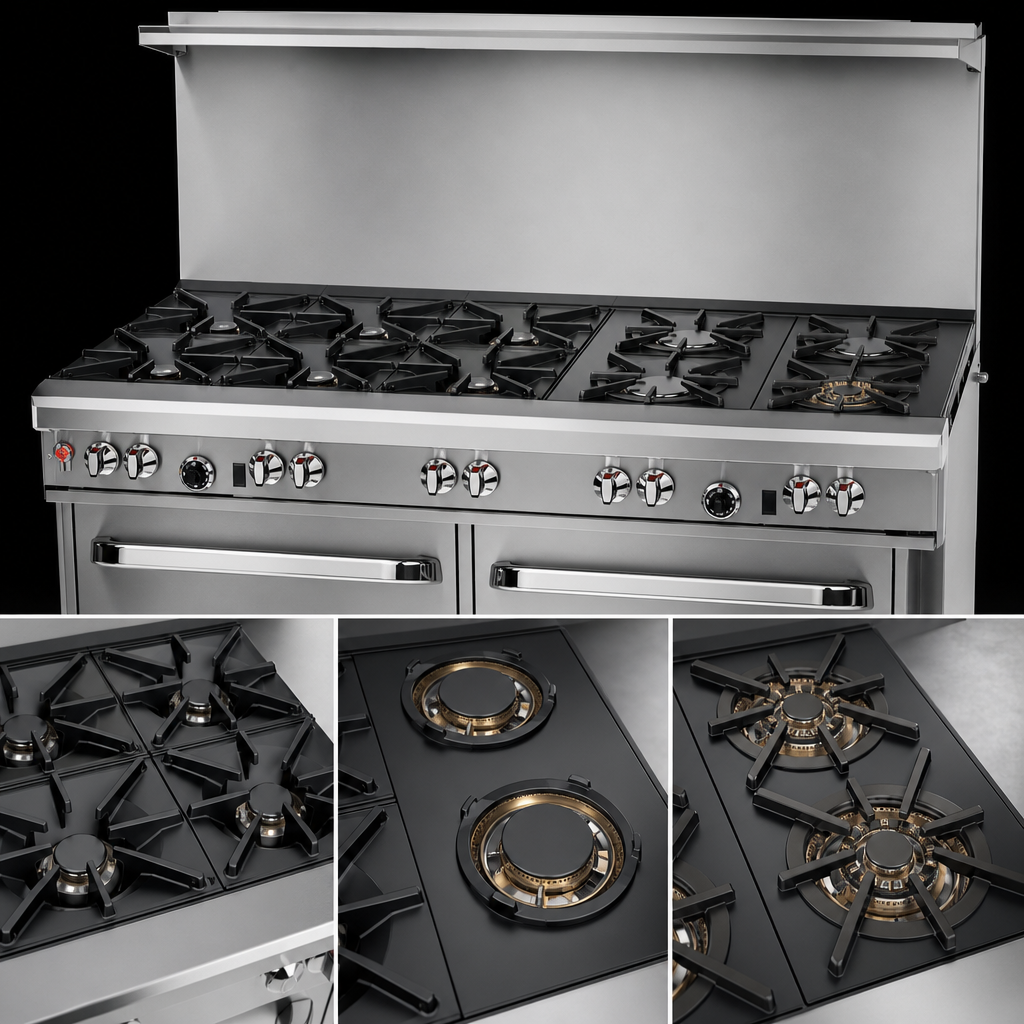

- High-output mix: 3× 33 K BTU star/sauté burners (front-right) for fast, even searing.
- 2× 40 K BTU Pyromax™ burners (rear-right) tackle stock pots & wok cooking with ease.
- 4× 27 K BTU non-clog burners (left-side) paired with wavy grates for full-surface pan stability.

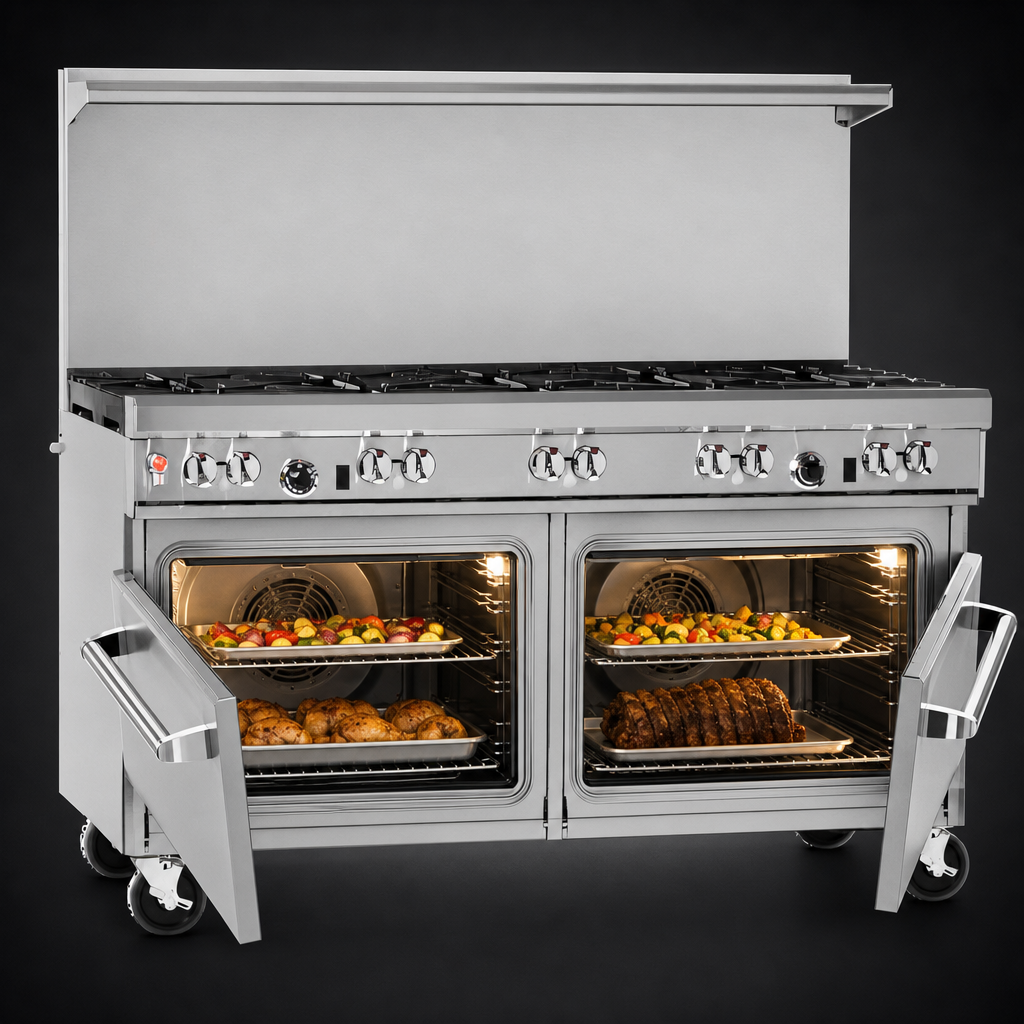

- Twin convection ovens (32 K BTU each) with battery-spark ignition, 175 – 550 °F thermostat and 3 chrome racks per cavity.
- 22½" flue riser with heavy-duty shelf keeps pans & plating gear within arm’s reach.
- All-stainless front, sides, shelf & 6" adjustable legs for easy cleaning and long service life.
- Front gas shut-off, factory regulator and standing pilots for open tops simplify daily operation.
- Certified CSA & NSF for commercial kitchens.
Technical Specs
| Model | Ultimate 460-AA (custom burner mix) |
|---|---|
| Total Input (Natural Gas) | 351,000 BTU/hr |
| Open-Top Burners | 3 Star/Sauté × 33 K • 2 Pyromax × 40 K • 4 Non-Clog × 27 K |
| Convection Ovens | 2 × 32 K BTU, 175 – 550 °F, 3 racks each (5-position) |
| Cook-Surface Area | 60 ¾" W × 27" D |
| Overall Dimensions | 60 ¾" W × 42 ⅛" D × 59 ½" H (to shelf) |
| Cooking Height | 37" |
| Gas Connection | ¾" NPT female, 7" W.C. NAT (11" W.C. LP) |
| Electrical (per oven) | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & NEMA 5-15 plug |
| Construction | Stainless steel front, sides & shelf; porcelain-enameled oven interior |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (see note) |
Operational Advantages
- One-piece cast-iron grates lift off for fast, tool-free cleaning.
- Battery-spark ignition on ovens means no external power needed for lighting.
- Porcelain-coated, coved-corner oven cavities eliminate hot spots and wipe clean.
- 6" stainless legs adjust for level installation on any commercial floor.
Southbend backs every Ultimate range with a 1-year limited parts & labor warranty. Use in commercial applications only and install under a vented hood to maintain certification.
