Southbend (Middleby) 4602AA-5R Ultimate Gas Ranges
Description

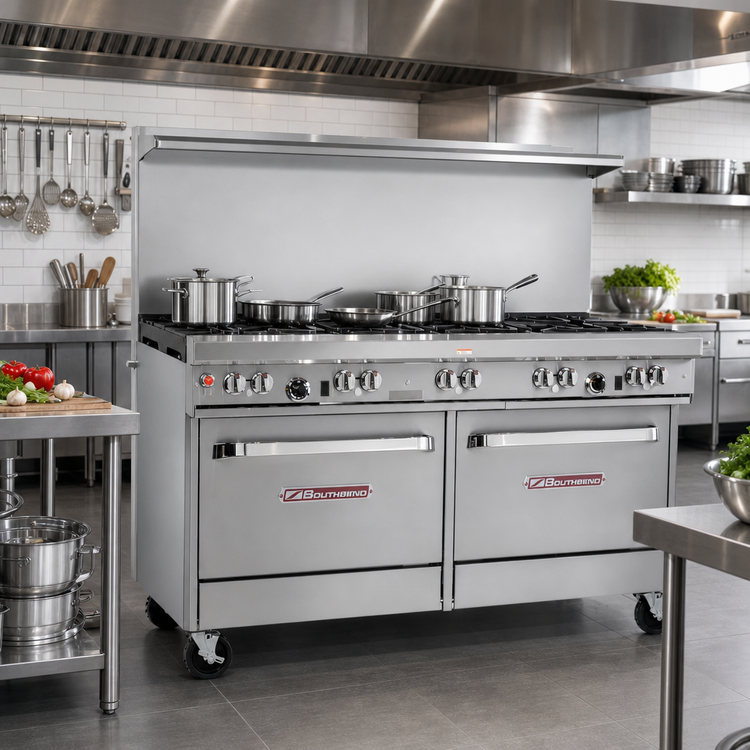

Southbend Ultimate 60" Gas Restaurant Range – Convection Oven Model
351,000 BTU | Natural Gas | CSA & NSF CertifiedGive your line cooks every tool they need in a single footprint. The Southbend Ultimate 60" Restaurant Range delivers high-output open burners, rapid-recovery Pyromax power, a full-width wavy grate surface and twin convection ovens—all wrapped in a durable stainless-steel cabinet that stands up to the heaviest commercial use.
Key Benefits
- Versatile 9-burner layout – (3) 27 K BTU non-clog burners front-right, (4) 27 K BTU non-clog burners left, plus (2) 40 K BTU Pyromax burners rear-right for lightning-fast boils & wok work.
- Full-surface cast-iron wavy grates let chefs slide heavy stock pots without lifting.
- 22 ½" flue riser with heavy-duty integrated shelf keeps plates and seasonings within arm’s reach.

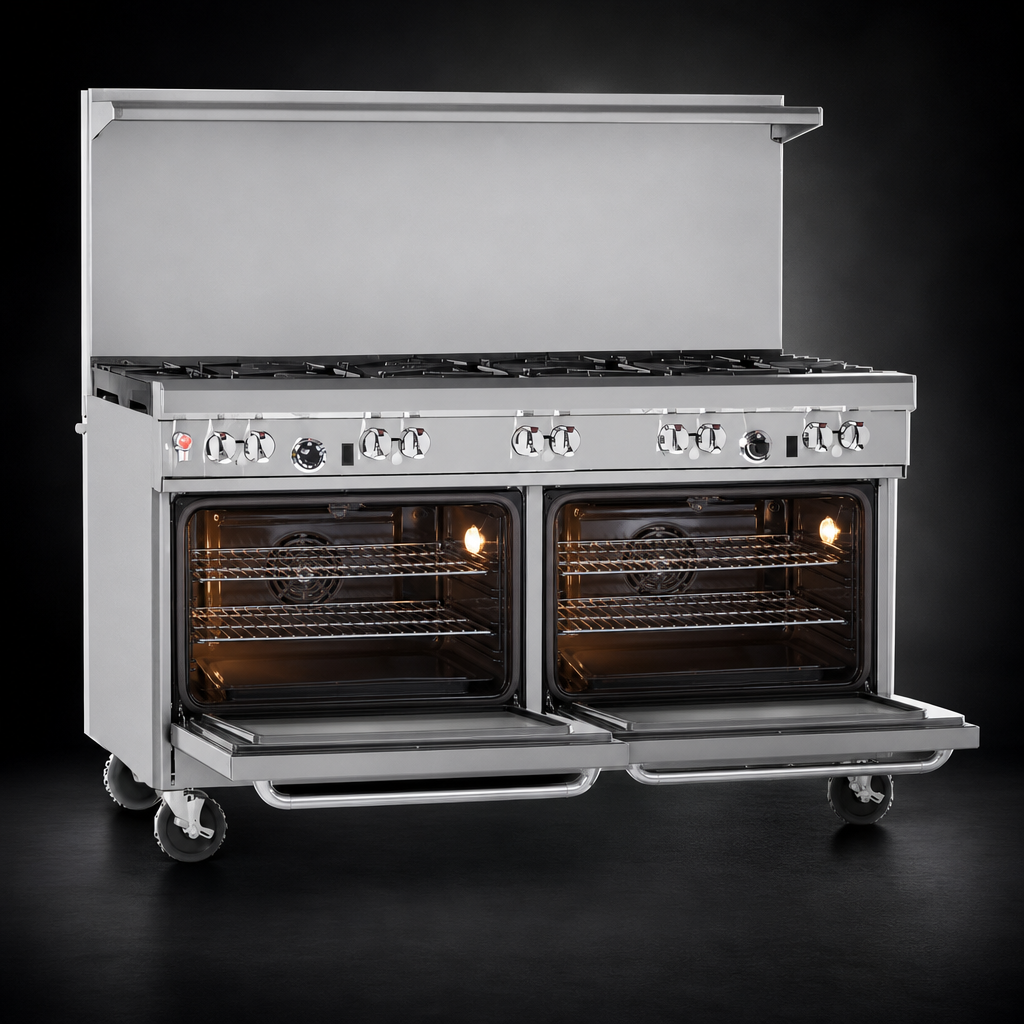

- Dual 32 K BTU convection ovens (battery-spark ignition) fit full-size sheet pans front- or side-load; three chrome racks and five guide positions in each cavity.
- Front-mounted manual shut-off valve and factory-installed ¾" regulator speed up installation and daily safety checks.
- Stainless-steel front, sides, 4" rail & shelf with 6" adjustable legs for quick clean-ups and code-compliant floor clearance.
- Backed by a 1-year parts & labor warranty from Southbend.
Performance Specifications
| Total Input | 351,000 BTU/hr (natural gas) |
|---|---|
| Open Burners | (7) 27 K BTU non-clog + (2) 40 K BTU Pyromax |
| Grate Style | Removable, one-piece cast-iron wavy grates |
| Ovens (each) | 32 K BTU convection, 175–550 °F thermostat, 1/2 hp fan |
| Oven Interior (each) | 14"H × 26"W × 24"D – fits full-size pans both ways |
| Racks Supplied | 3 chrome racks per oven (6 total) |
| Gas Connection | ¾" NPT (rear) – min. 7" W.C. inlet |
| Electrical | 115 V / 5.9 A / 60 Hz (one 6' cord-&-plug per oven) |
| Unit Dimensions | 60 ¾"W × 34"D × 59 ½"H (to top of flue) |
| Cooking Height | 37" |
| Shipping Weight | ≈ 1,075 lb |
What’s Included
- Southbend Ultimate 60" gas range with specified burner configuration
- (6) chrome oven racks
- Factory-installed pressure regulator
- 6" stainless-steel adjustable legs
- Owner’s manual & warranty registration
Perfect For
- Full-service restaurants & high-volume diners
- Hotel, resort and casino production kitchens
- Catering commissaries & ghost kitchens
- University, healthcare and corporate foodservice operations
Covered by Southbend’s 1-year parts & labor warranty. See full terms at southbendnc.com.
