Southbend (Middleby) 4602AA-5L Ultimate Gas Ranges

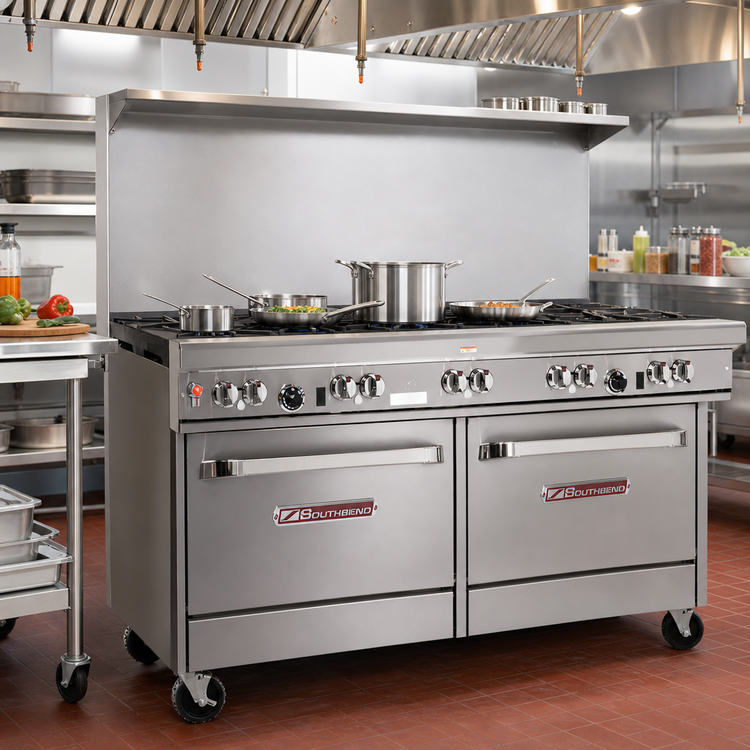

Southbend Ultimate 60" Gas Restaurant Range w/ Double Convection Ovens – 351,000 BTU

Build sauté, sear, boil, bake, and roast programs at full throttle with one rugged platform. The Ultimate Series packs nine high-efficiency open burners, two powerful convection ovens, and a storage shelf into just five feet of line space—perfect for busy restaurants, hotels, and institutional kitchens that demand unshakable performance shift after shift.

Performance Highlights

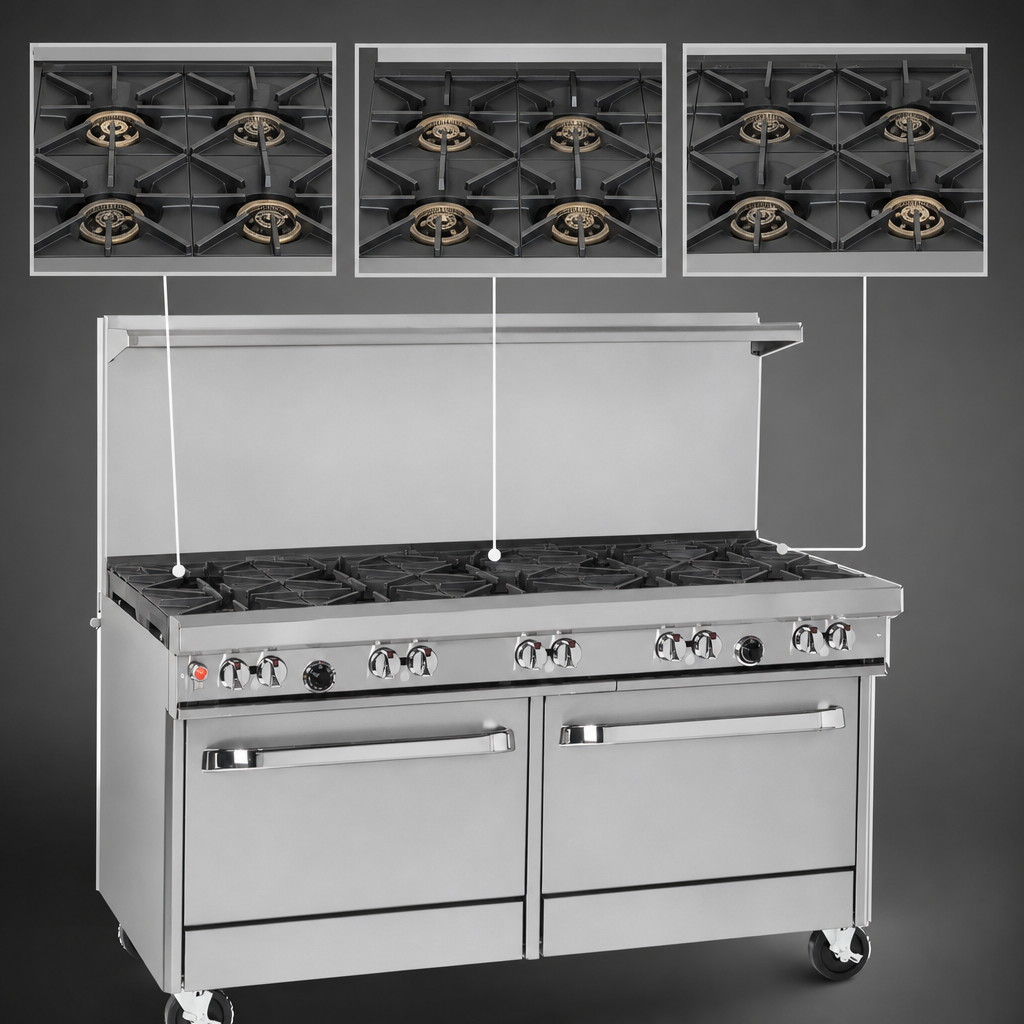

• Nine open burners for menu-wide versatility:
  • (3) 27,000 BTU lifetime non-clog burners – front left
  • (2) 40,000 BTU Pyromax high-output burners – rear left
  • (4) 27,000 BTU lifetime non-clog burners – right bank
• Cast-iron wavy grates let you slide pots and pans anywhere on the top without lifting.
• Standing pilots for open burners plus a convenient front-mounted master gas shut-off.

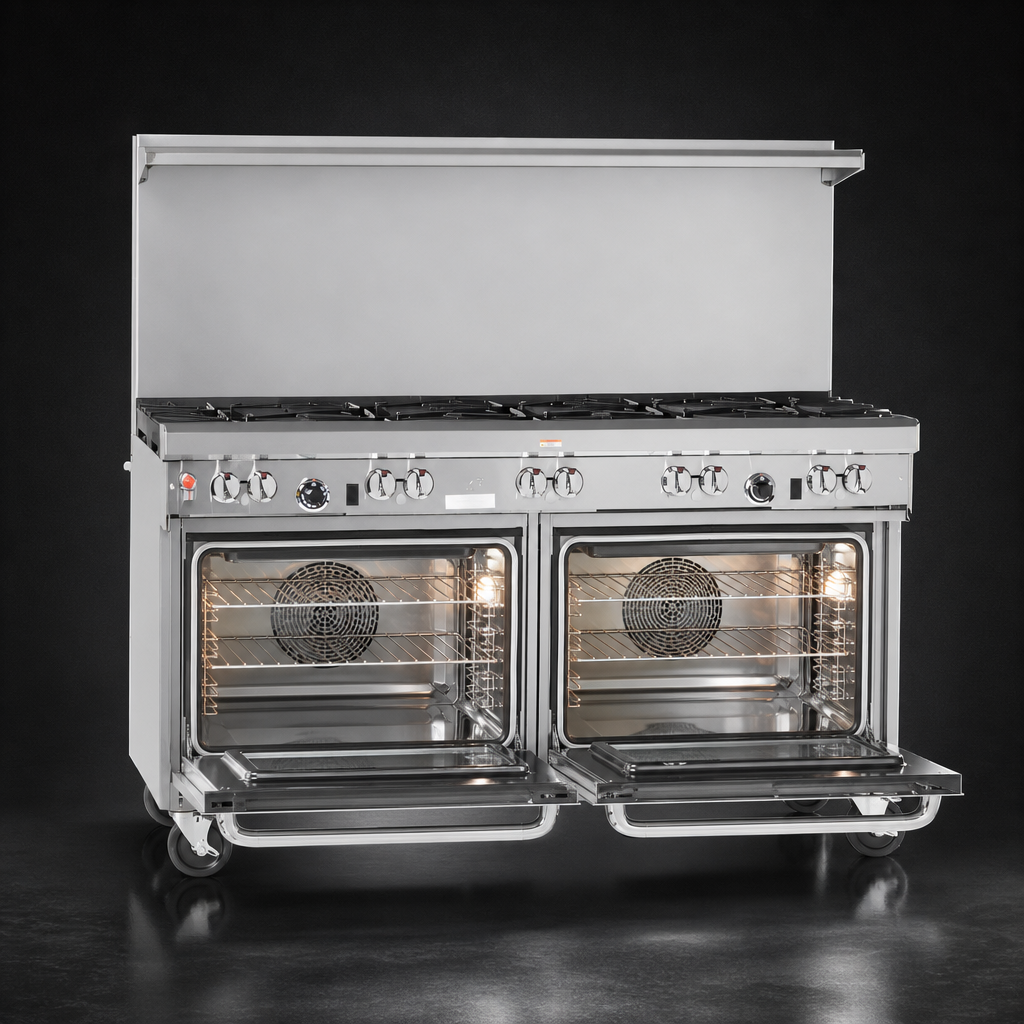

• Two 32,000 BTU convection ovens with battery-spark ignition, 175 – 550 °F thermostat & ½ hp fan motor.
• (3) nickel-plated racks per oven; five rack positions hold full-size sheet pans front-to-back or side-to-side.
• 22½" stainless flue riser with heavy-duty shelf keeps plates, spices, and tools close at hand.
• Durable stainless steel front, sides, shelf, and 4" front rail on 6" adjustable stainless legs.
• Factory-installed pressure regulator; ¾" rear gas connection.
• 1-year parts & labor warranty backed by Southbend’s nationwide service network.

Specifications

What’s in the Box

• (9) removable cast-iron wavy grates
• (6) oven racks (3 per oven)
• Factory pressure regulator
• 6" stainless steel adjustable legs
• Operator’s manual & warranty packet
