Southbend (Middleby)  |  Ultimate  |  SKU: 4602AA-4TR

Southbend (Middleby) 4602AA-4TR Ultimate Gas Ranges

$21,143.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

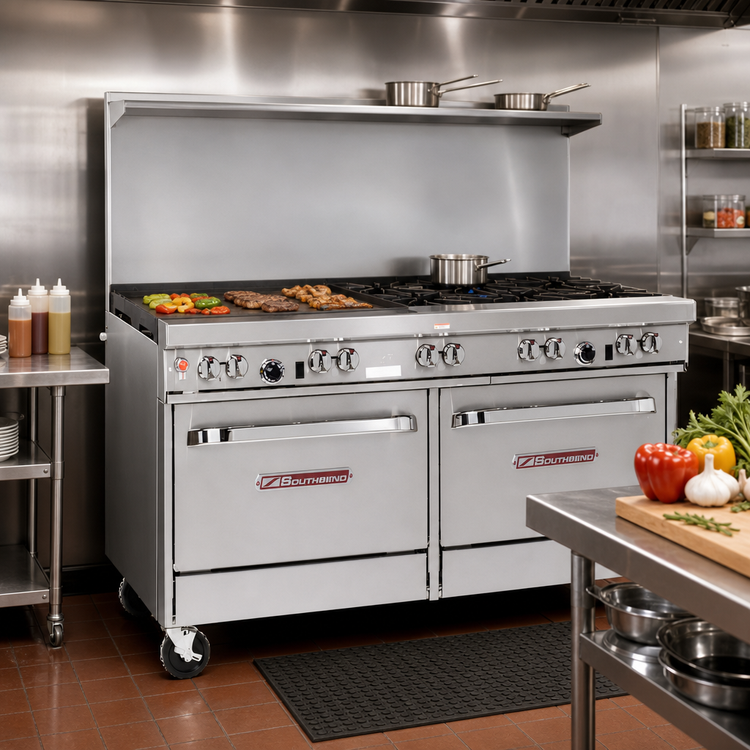

Southbend Ultimate 60" Gas Restaurant Range w/ 48" Thermostatic Griddle & Double Convection Ovens

198,000 BTU • Natural Gas • Southbend | Middleby

Built for chefs who demand maximum versatility without sacrificing valuable line space, the Southbend Ultimate 60" range marries high-performance open burners, an oversized thermostatic griddle and two full-size convection ovens in one stainless-steel workhorse.

Highlights

  • 60 3⁄4" wide commercial range with 37" high cooking surface
  • (2) 27,000 BTU patented non-clog open burners with standing pilots
  • Cast-iron wavy grates—bowl design improves heat transfer & lets pans slide effortlessly
  • 48" × 24" griddle on right side, 1" polished steel plate, thermostatic controls 175–550 °F
  • (2) 32,000 BTU convection ovens with battery spark ignition
  • Each oven ships with 3 chrome racks (5-position guides) and porcelain-enamel interior
  • Front-mounted manual gas shut-off for the entire range
  • 22 1⁄2" flue riser with heavy-duty utility shelf keeps essentials within reach
  • 4" deep stainless front rail & full-length drip trays speed up clean-up
  • 6" adjustable stainless legs; factory-installed pressure regulator
  • 1-year limited parts & labor warranty backed by Southbend’s nationwide service network

Performance Overview

Total input 198,000 BTU/hr
Open burners 54,000 BTU (2 × 27,000)
48" griddle 80,000 BTU (thermostatic)
Convection ovens 64,000 BTU (2 × 32,000)
Oven temperature 175 °F – 550 °F
Electrical 115 V / 60 Hz / 1-ph, 5.9 A (fans; 6' cord & NEMA 5-15P plug)

Dimensions & Utilities

Width 60.75" / 1543 mm
Depth (to rail) 42.13" / 1070 mm
Height – cooktop / to flue 37" / 59.5"
Oven interior (each) 26" W × 24" D × 14" H – fits full-size sheet pans both ways
Gas connection 3⁄4" NPT (rear); min. 7" W.C. NG inlet pressure
Shipping weight ≈ 1,075 lb / 488 kg

Certifications

  • cCSAus
  • CSA Flame
  • CSA Star
  • NSF Listed
Installation Notice: This appliance is intended for commercial use only. Install under a properly sized ventilation hood and on a non-combustible or factory-approved floor surface. Follow all local codes for gas and electrical connections.

Need flexible payment options? Middleby Equipment Financing offers fast approvals and affordable monthly plans.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

60.75in

Depth

43.6in

Shipping Weight

1075.0lbs

Top

(2) open burners, (1) 48" griddle with thermostats

Base

(2) convection ovens

Control Type

thermostatic controls

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Specifications

Ultimate Restaurant Range, gas, 60", (2) non-clog burners, wavy grates, (1) 48" griddle right, thermostatic controls, standing pilot, (2) convection ovens with battery spark ignition, includes (3) racks per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 198,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
