Southbend (Middleby) 4602AA-3GR Ultimate Gas Ranges
Description

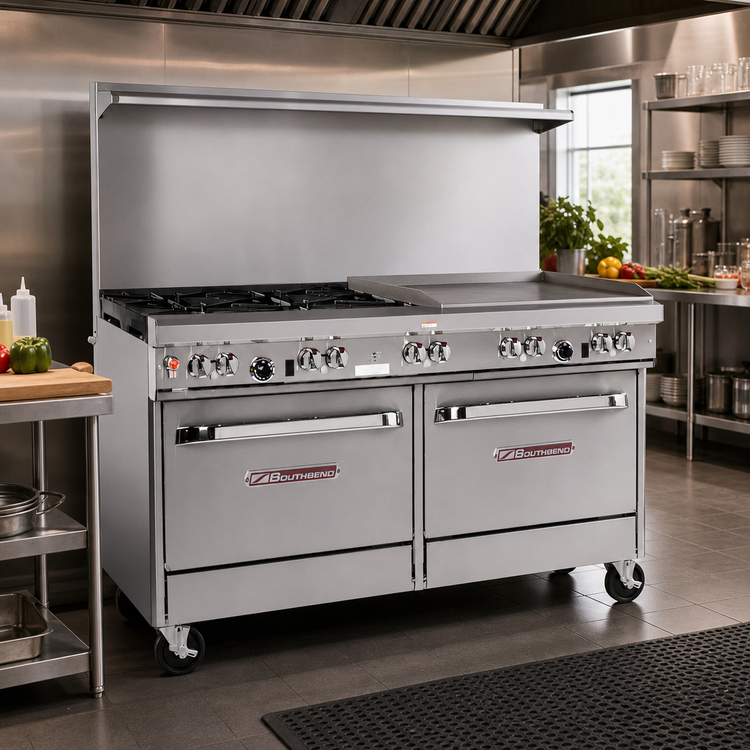

Southbend “Ultimate” 60" Gas Restaurant Range
4 Open Burners • 36" Right-Side Griddle • Double Convection Ovens • 236,000 BTUEngineered for the punishing pace of busy commercial kitchens, the Southbend Ultimate Range puts a high-output cooktop, a full-size griddle and two powerful convection ovens into one 60-inch footprint. Heavy-duty stainless steel construction, lifetime-clog-free burners and industry-leading warranty coverage make this the last range you’ll need for years to come.
Why It Belongs on Your Line
- 236,000 BTU total output – plenty of heat for multi-tasking during peak service.
- Four 27,000 BTU non-clog open burners with wavy cast-iron grates to slide heavy stockpots effortlessly.
- 1/2" polished steel 36" griddle (right) with raised sides for perfect sears and easy cleanup.
- Dual 32,000 BTU convection ovens (battery-spark ignition) with 5-position rails and 3 racks each.
- 22.5" flue riser with heavy-duty stainless shelf keeps plates, pans and spices within reach.
- Front-mounted main gas shut-off and factory-installed regulator for fast, safe service.
- All-stainless front, sides & shelf plus 6" adjustable legs—built to handle daily wash-downs.
- Certified cCSAus, CSA Flame, CSA Star and NSF for gas safety & sanitation.
At-a-Glance Specs
| Exterior width | 60.75" (1543 mm) |
|---|---|
| Exterior depth | 42.13" (1070 mm) |
| Cook-top height | 37" (940 mm) |
| Cooking surface | 4 open burners + 36" griddle (right) |
| Burner rating | 27,000 BTU each (non-clog, standing pilot) |
| Griddle rating | 64,000 BTU (manual control) |
| Oven type / rating | 2 × convection, 32,000 BTU each |
| Oven temperature range | 175 °F – 550 °F (79 °C – 288 °C) |
| Oven interior (each) | 14" H × 26" W × 24" D porcelain-enameled cavity |
| Racks supplied | 3 per oven (5 positions) |
| Total BTU | 236,000 BTU/hr (natural gas) |
| Gas connection | 3/4" NPT, 7" W.C. min. inlet (natural) |
| Electrical | 115 V / 60 Hz / 1-ph, 5.9 A (convection fans, 6' cord & plug) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see Southbend terms) |
Tip: For maximum longevity, avoid letting cookware overhang the front rail, and always install the range under a properly sized ventilation hood.
