Southbend (Middleby) 4602AA-2RR Ultimate Gas Ranges
Description

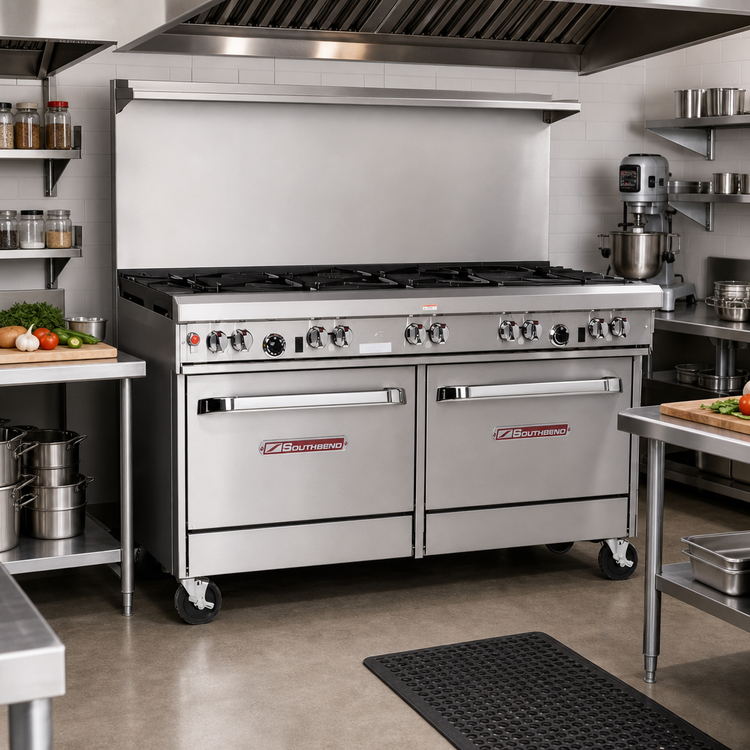

Southbend Ultimate 60" Gas Restaurant Range – 6 Burners, 24" Raised Griddle/Broiler & Double Convection Ovens
Model 460 Ultimate Series | Natural Gas | 259,500 BTU/hrBuilt for the busiest commercial kitchens, the Southbend Ultimate Series packs hard-hitting output and long-haul durability into a single 60 inch footprint. Six lifetime non-clog burners share the stage with a space-saving raised griddle/broiler, while a pair of full-size convection ovens keeps bakery-level airflow at your command.
Key Performance Features
- Heavy-gauge stainless steel front, sides, 4" landing rail and 22 ½" flue riser with integrated overshelf.
- Six 27,000 BTU cast-iron non-clog burners with patented, lifetime-guaranteed ports and wavy grates that steady small pans yet accept 14" stock pots.

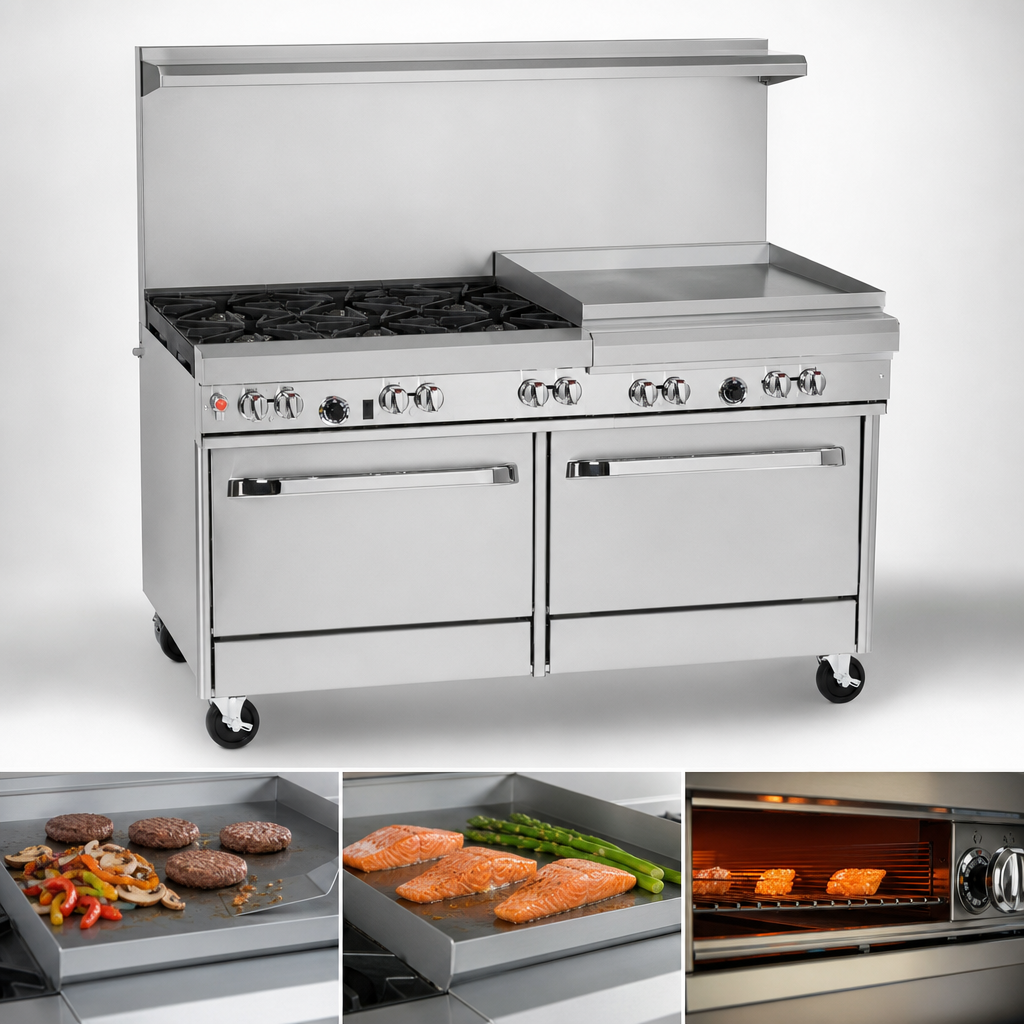

- 24" raised griddle/broiler combo – ½" polished steel plate on top, powerful finishing broiler beneath.
- Two 32,000 BTU convection ovens with battery-spark ignition; porcelain interiors, 5 rack positions and (3) racks per cavity.
- Front-mounted manual gas shut-off and factory-installed regulator simplify code-compliant hookups.
- Standing pilots on open burners for instant, reliable flame.
- 6" adjustable stainless legs; optional casters available.
- cCSAus, CSA Star, CSA Flame and NSF listings for worry-free inspection approvals.
- Backed by a 1-year parts & labor warranty and Southbend’s nationwide service network.
Technical Specifications
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Overall depth | 42 1⁄8" (1070 mm) |
| Cook-top height | 37" |
| Overall height (to shelf) | 59 1⁄2" |
| Total input | 259,500 BTU/hr (natural gas) |
| Open burners | 6 × 27,000 BTU non-clog |
| Raised griddle/broiler | 24" wide, manual control |
| Convection ovens | 2 × 32,000 BTU – 14"H × 26"W × 24"D cavities |
| Gas connection | ¾" NPT, 7" W.C. inlet pressure (natural) |
| Electrical (ovens) | 115 V, 60 Hz, 1 Ph, 5.9 A (cord & 3-prong plug included) |
| Shipping weight | ≈ 1,075 lb / 488 kg |
What’s in the Crate
- (6) Removable cast-iron wavy grate sections
- (2) Porcelain-enameled convection oven cavities
- (6) Nickel-plated racks – three per oven
- Full-width removable drip trays
- Factory pressure regulator & battery pack for spark ignition
- Owner’s manual & warranty packet
Need flexible financing? Middleby Equipment Financing can turn the Ultimate Range into predictable monthly payments – ask your rep for details.
