Southbend (Middleby) 4601DD Ultimate Gas Ranges
Southbend (Middleby) 4601DD Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4601DD Ultimate Gas Ranges
Description

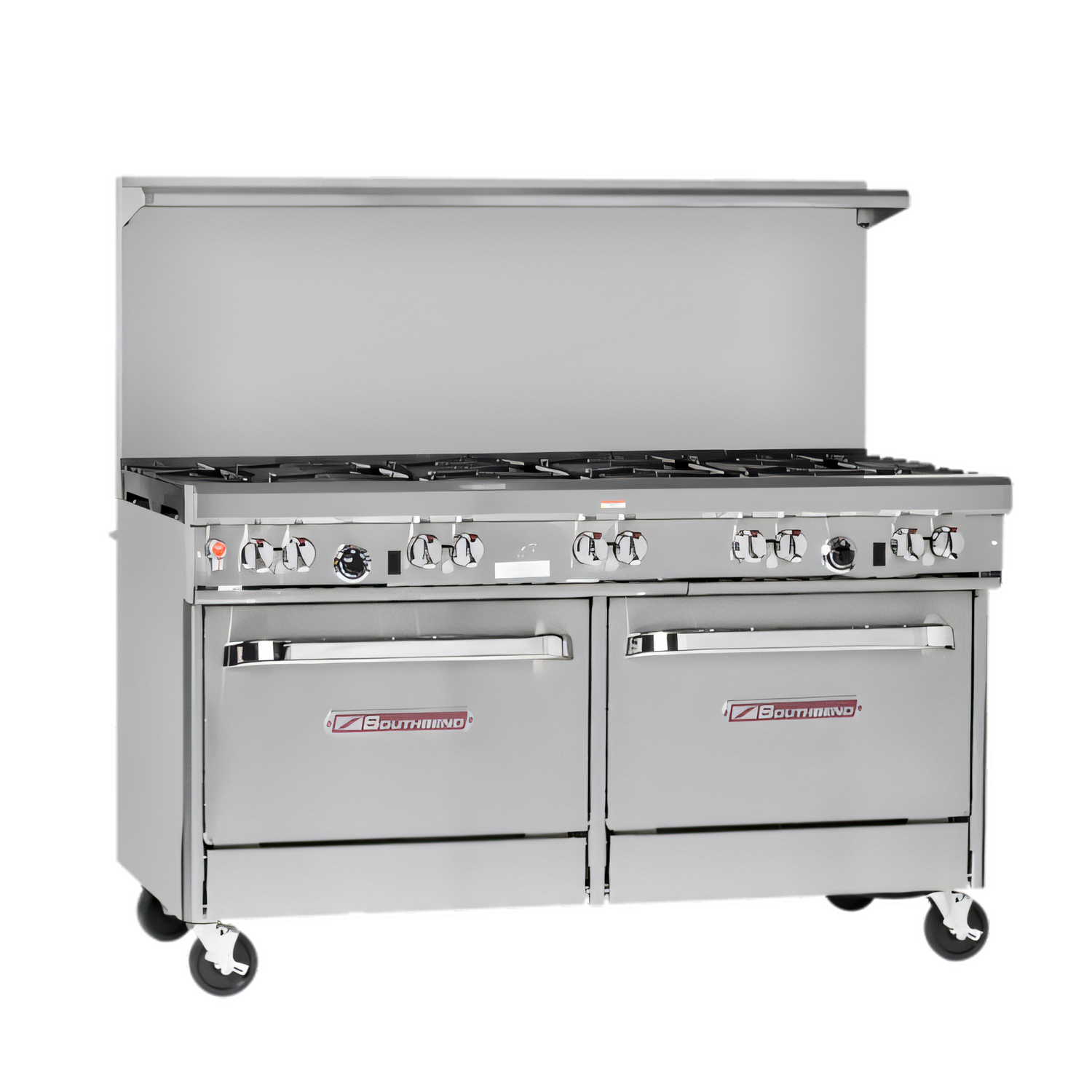

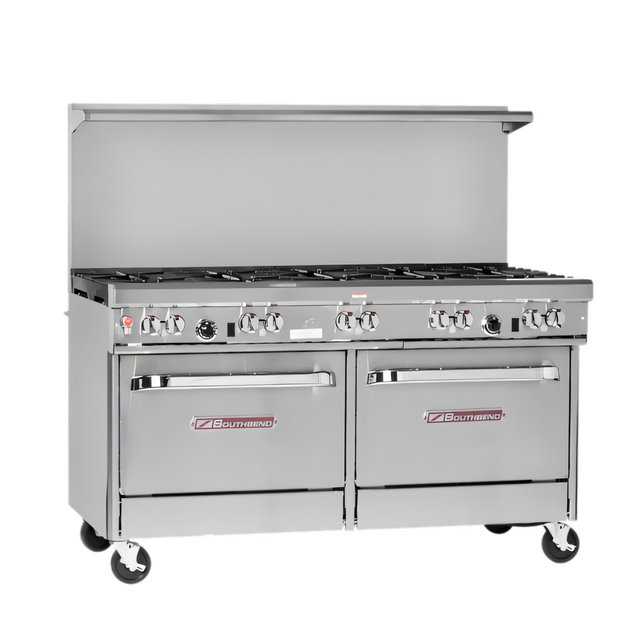

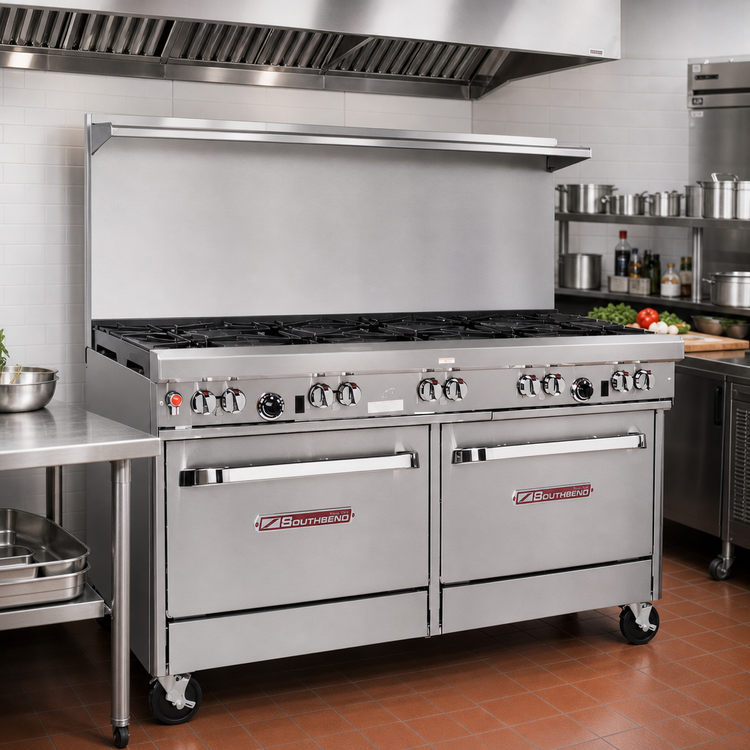

Ultimate 60" Gas Restaurant Range – 10 Burners / 2 Standard Ovens
Southbend | Middleby Essentials • Quick-Ship in 2 business daysPut the power, durability, and flexibility of Southbend’s flagship Ultimate Series to work on your line. This 60 inch range combines ten lifetime-clog-free burners with two full-size ovens, all wrapped in easy-to-clean stainless steel. Engineered for high-volume kitchens and supplied “ready to cook” right out of the crate, it’s the quickest way to add 420,000 BTU of reliable heat to your operation.
Key performance features

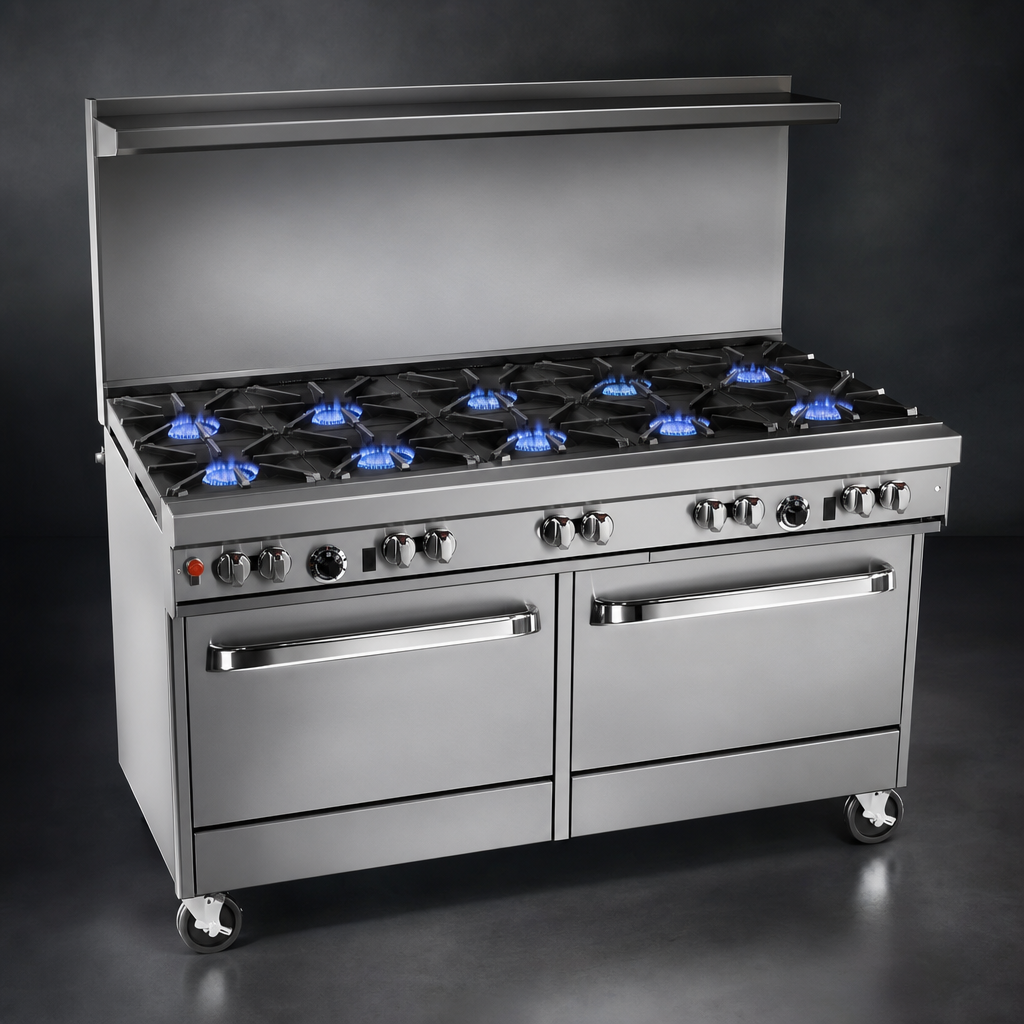

- Ten (10) patented 33,000 BTU NAT non-clog cast-iron burners with standing pilots
- Full-depth (27") cooking surface; rear grates accept up to a 14" stock pot

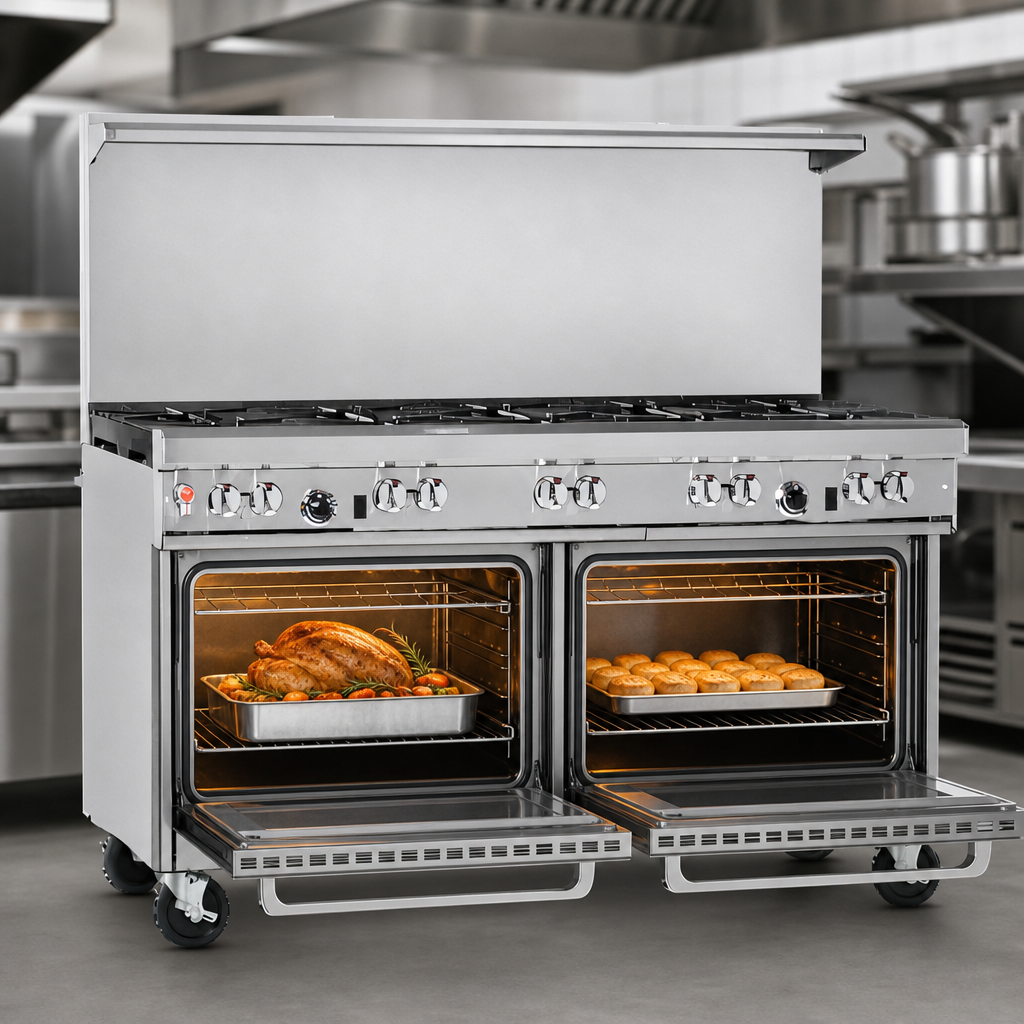

- Two (2) 45,000 BTU standard ovens with battery spark ignition & spring-assisted doors
- Includes one adjustable rack per oven; porcelain enamel interiors for easy clean-up
- Factory-installed 22 ½" flue riser with heavy-duty storage shelf
- 4" deep stainless front rail keeps plating and pans within reach
- Stainless steel front, sides, high shelf, and 6" adjustable legs (casters optional)
- Front-mounted main gas shut-off and factory pressure regulator
- Certified to CSA & NSF standards; 1-year limited parts & labor warranty
Specifications
| Total BTU | 420,000 BTU/hr (Natural gas) |
|---|---|
| Burners | 10 × 33,000 BTU non-clog open burners |
| Ovens | 2 × 45,000 BTU standard oven cavities Temperature range 175 °F – 550 °F |
| Cooking surface | 60 3⁄4" W × 27" D | Top height 37" |
| Exterior dimensions | 60 3⁄4" W × 34" D × 59 1⁄2" H (to top of riser) |
| Oven interior (each) | 26" W × 26 ½" D × 14" H | fits full-size sheet pans both directions |
| Gas connection | 3⁄4" NPT (left rear standard) Minimum inlet pressure: 7" W.C. NG / 11" W.C. LP |
| Shipping weight | ≈ 1,075 lb crated |
| Model reference | Southbend 460DD-10 Burner |
Fast delivery, simple ordering
- Designated Middleby Essentials item — always in stock for rapid fulfillment
- Leaves the factory within 2 business days of order confirmation
- Maximum quantity: 2 units per order (need more? Please contact us for lead time)
Peace-of-mind warranty
Covered by Southbend’s 1-year limited parts & labor warranty. Full details and exclusions available at southbendnc.com/service-and-parts.
