Southbend (Middleby)  |  Ultimate  |  SKU: 4601DD-7R

Southbend (Middleby) 4601DD-7R Ultimate Gas Ranges

$10,351.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

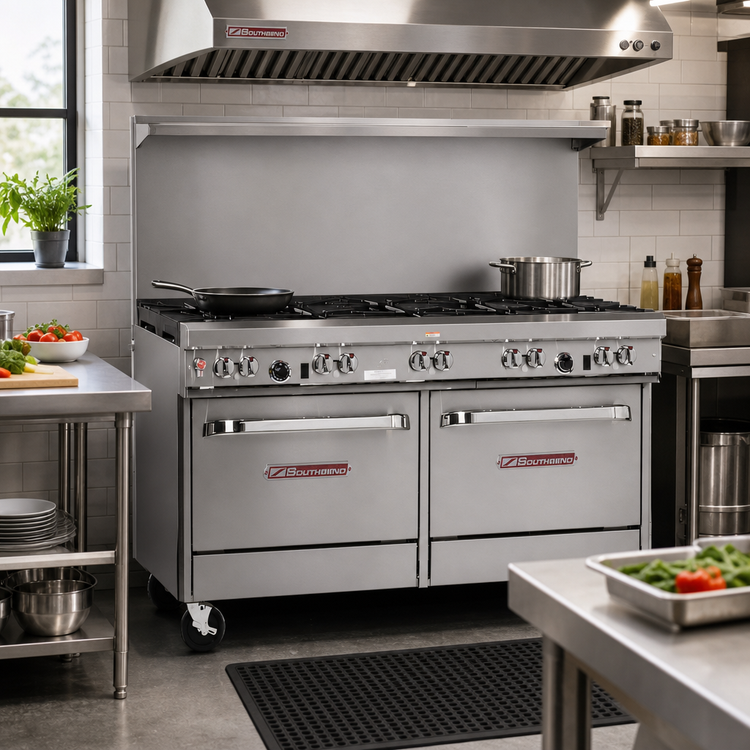

Southbend Ultimate 60" Gas Restaurant Range – 4 Non-Clog + 4 Pyromax Burners, Double Standard Ovens

Model 460DD-Pyro | 382,000 BTU | CSA & NSF Listed

Built for kitchens that refuse to compromise on power or durability, the Southbend Ultimate 60" range pairs high-output Pyromax burners with proven non-clog tops and two full-size ovens. Engineered and assembled in Fuquay-Varina, NC, this range is ready to shoulder the heaviest production schedules while keeping maintenance and downtime to a minimum.

Key Benefits

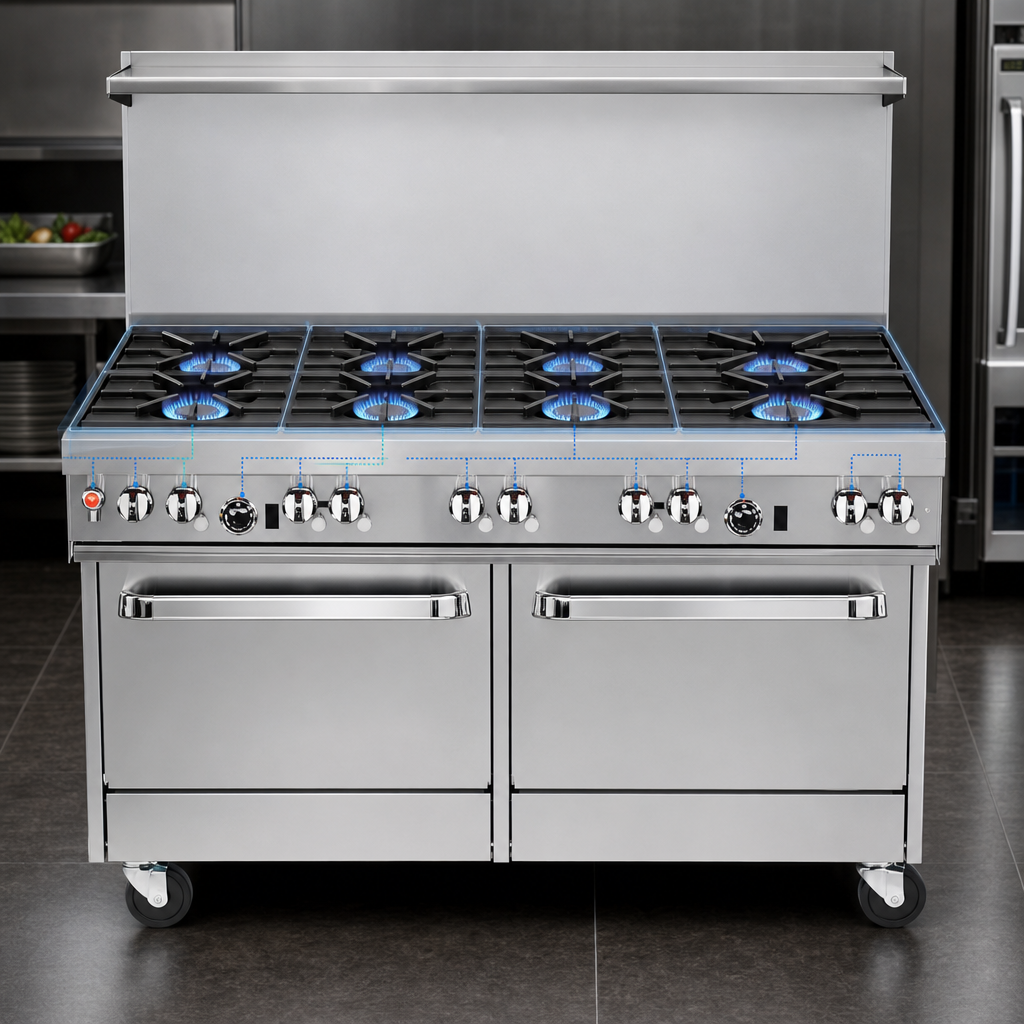

  • Eight open burners – (4) lifetime-clog-free cast-iron burners on the left plus (4) 40,000 BTU Pyromax power burners on the right.

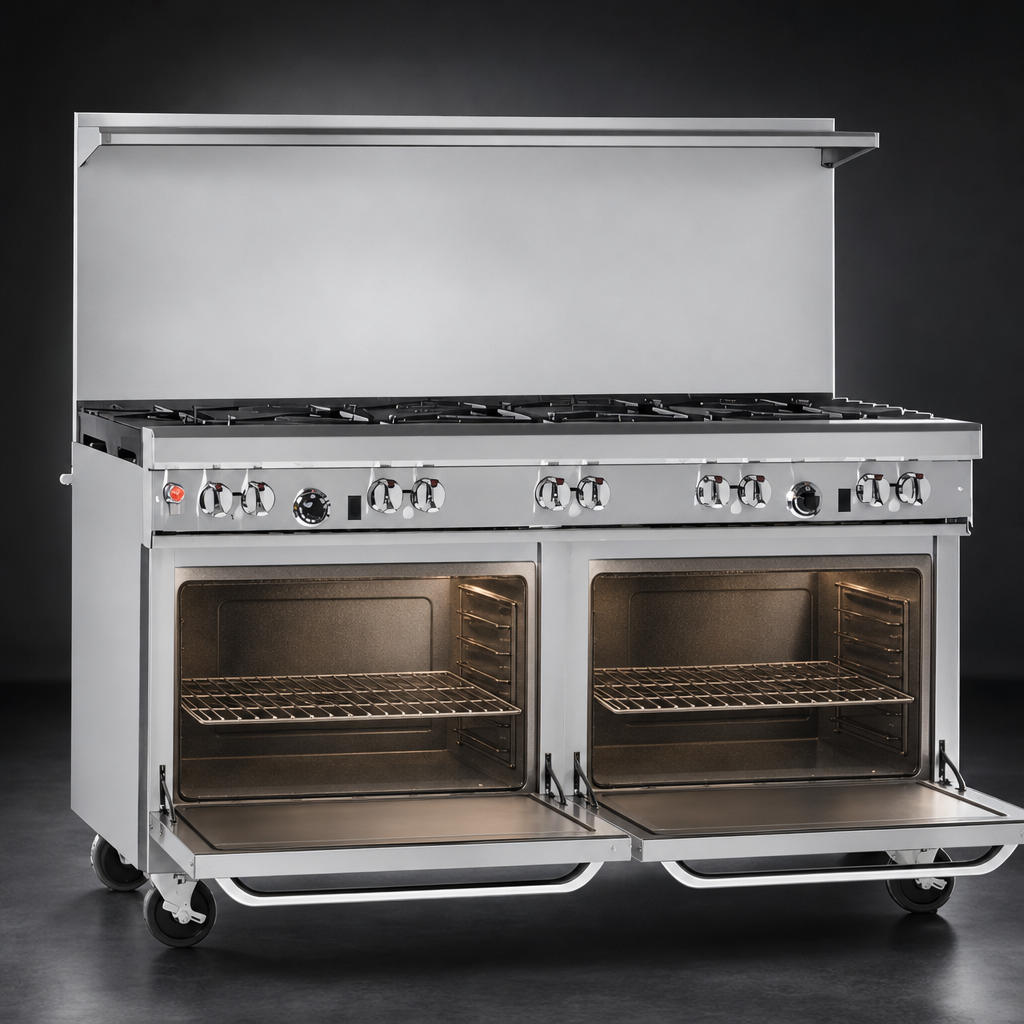

  • Double standard ovens – 45,000 BTU each with battery-spark ignition; holds full-size sheet pans both directions (1 rack per cavity included).
  • One-piece 22 ½" flue riser & heavy-duty shelf – keeps cookware warm and adds convenient plating/storage space.
  • All-stainless exterior – front, sides, shelf, and 6" adjustable legs stand up to daily cleaning and corrosive spills.
  • Front-mounted gas shut-off & factory regulator – fast service access and smooth installation.
  • Standing pilots on open tops for instant lighting; battery spark on ovens to save energy during down time.
  • 1-year parts & labor warranty backed by Southbend’s nationwide service network.

Specifications

Overall width 60 ¾" (1543 mm)
Overall depth 34" (864 mm)
Cooking surface height 37" (940 mm)
Burners – left (4) Non-clog cast-iron, up to 33,000 BTU ea.
Burners – right (4) Pyromax high-output, 40,000 BTU ea.
Ovens (2) Standard, 45,000 BTU ea. • 14"H × 26"W × 26 ½"D interior
Total input ≈ 382,000 BTU/hr (natural gas)
Gas connection ¾" NPT (female) – rear
Electrical None required (battery ignition)
Construction Stainless steel front, sides, shelf; cast-iron grates; 6" stainless adjustable legs
Certifications CSA, NSF
Warranty 1-year parts & labor (see Southbend terms)
Important: This range is intended for commercial use under a properly sized ventilation hood. For optimum performance and to protect front-rail components, place cookware 12" or larger on the rear grates.

Need a custom burner or griddle configuration? Contact us for factory-built options, casters, salamander mounts, and more genuine Southbend accessories.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Vent

backriser with hi-shelf

Exterior Finish

stainless steel front & sides

Top

(8) open burners

Base

(2) standard ovens

Specifications

Ultimate Restaurant Range, gas, 60", (4) non-clog burners, (4) pyromax burners right, standard grates, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 382,000 BTU, CSA, NSF
