Southbend (Middleby) 4601DD-5L Ultimate Gas Ranges

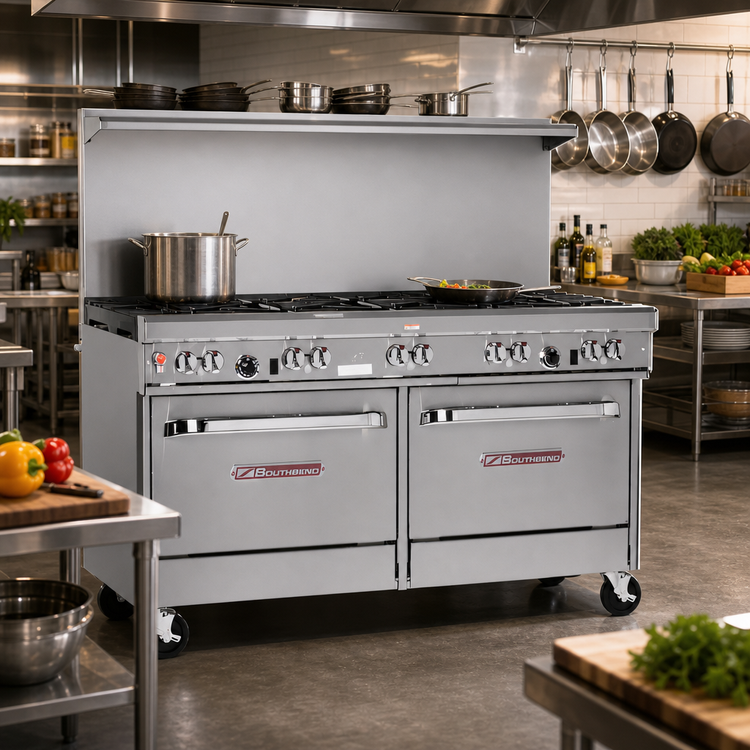

Southbend “Ultimate” 60 in Restaurant Range

Purpose-built for high-volume kitchens, the Southbend Ultimate 60″ gas range blends blistering power with rock-solid reliability. Nine open burners, two full-size ovens and an integrated 22-½″ flue riser shelf give chefs the flexibility and workspace they need to crush every service.

Key Features

• Total input: 401,000 BTU/hr.

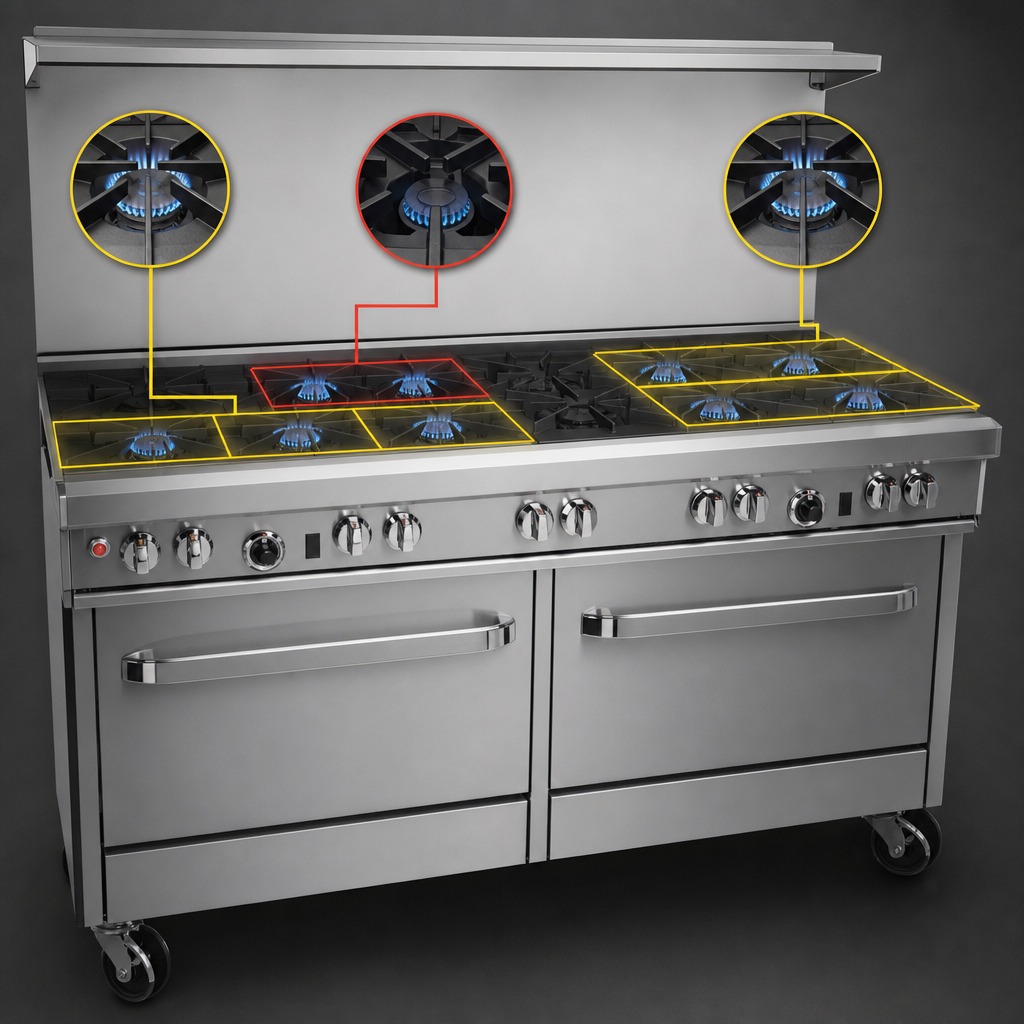

• Split-top burner layout: 3 × 33 k BTU non-clog (front-left) • 2 × 40 k BTU Pyromax (rear-left) • 4 × 33 k BTU non-clog (right bank).
• Cast-iron, clog-free burner heads with standing pilots for instant re-light.
• Two 45 k BTU standard ovens with battery spark ignition & snap-action thermostats 175 – 550 °F.
• Stainless steel front, sides, 4″ front rail, flue riser shelf and 6″ adjustable legs.
• Front-mounted ¾″ manual gas shut-off valve and factory-installed pressure regulator.
• Removable extra-deep drip trays for fast clean-up.
• CSA & NSF listed; one-year parts & labor warranty.

Performance Burners

• 33 k BTU Non-Clog Burners – one-piece cast iron design stays clog-free for life and excels at fast boils, searing and sauté work.
• 40 k BTU Pyromax Burners – patented three-piece high-output design with built-in drip ring for oversized stock pots, woks and rapid recovery.
• Rear grate sections accept stock pots up to 14″ Ø without sacrificing adjacent burners.

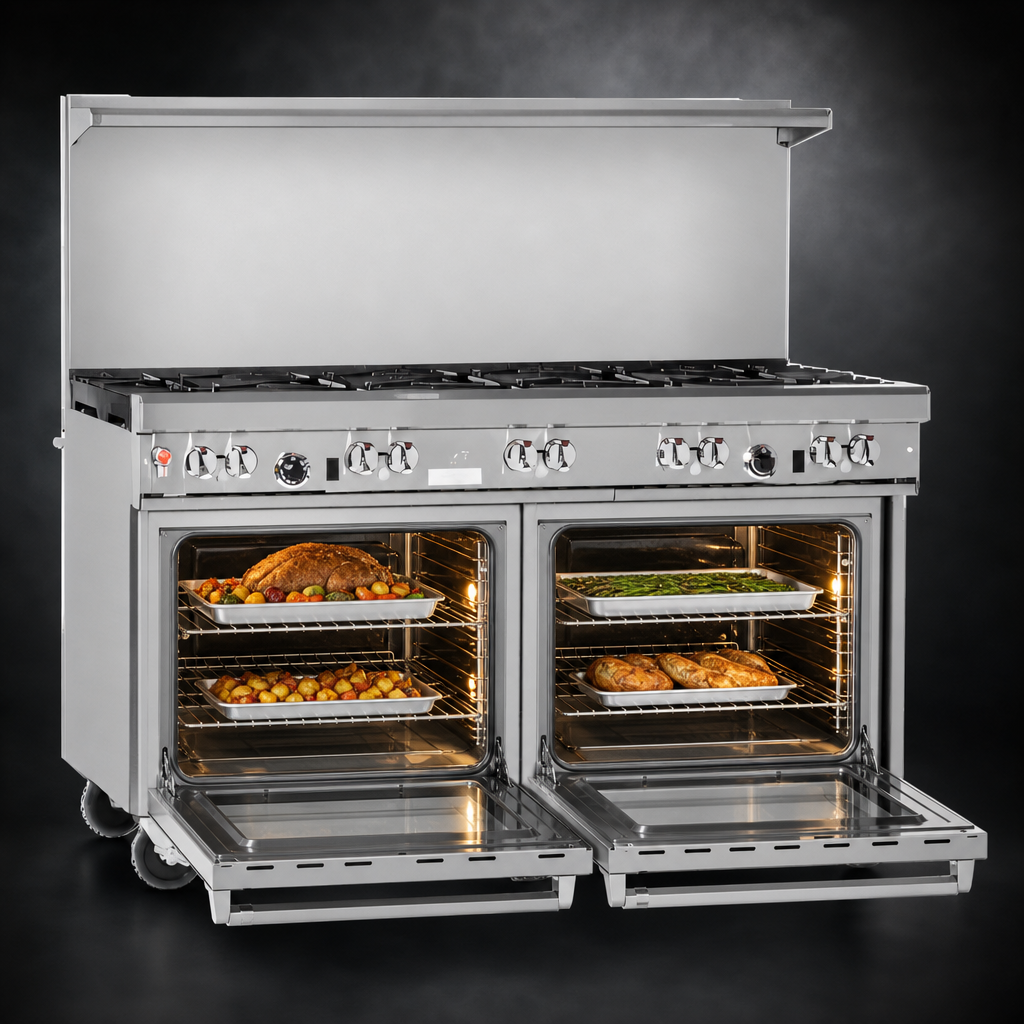

Standard Ovens (2 Total)

• 45 k BTU each with battery-spark ignition – no external power required.
• Porcelain-enameled, fully coved cavity (14″ H × 26″ W × 26.5″ D) resists corrosion and wipes clean.
• Each oven ships with 1 heavy-duty rack; two-position side rails fit full-size sheet pans both ways.
• Spring-assisted doors stand up to constant use without sagging.

Technical Specifications

Ships from the factory ready for natural gas. Field conversion kits are available from Southbend authorized service agencies.
