Southbend (Middleby) 4601DD-3GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60″ Restaurant Range – 4 Burners, 36″ Right-Side Griddle, Double Standard Ovens
286,000 BTU | Natural Gas | cCSAus, CSA Flame, CSA Star & NSF CertifiedBuilt for kitchens that refuse to compromise, the Southbend Ultimate 60″ range combines heavy-duty construction with the flexibility of open burners, a full-size griddle and two spacious ovens—all in one powerful, easy-to-service platform.
Key Performance Features

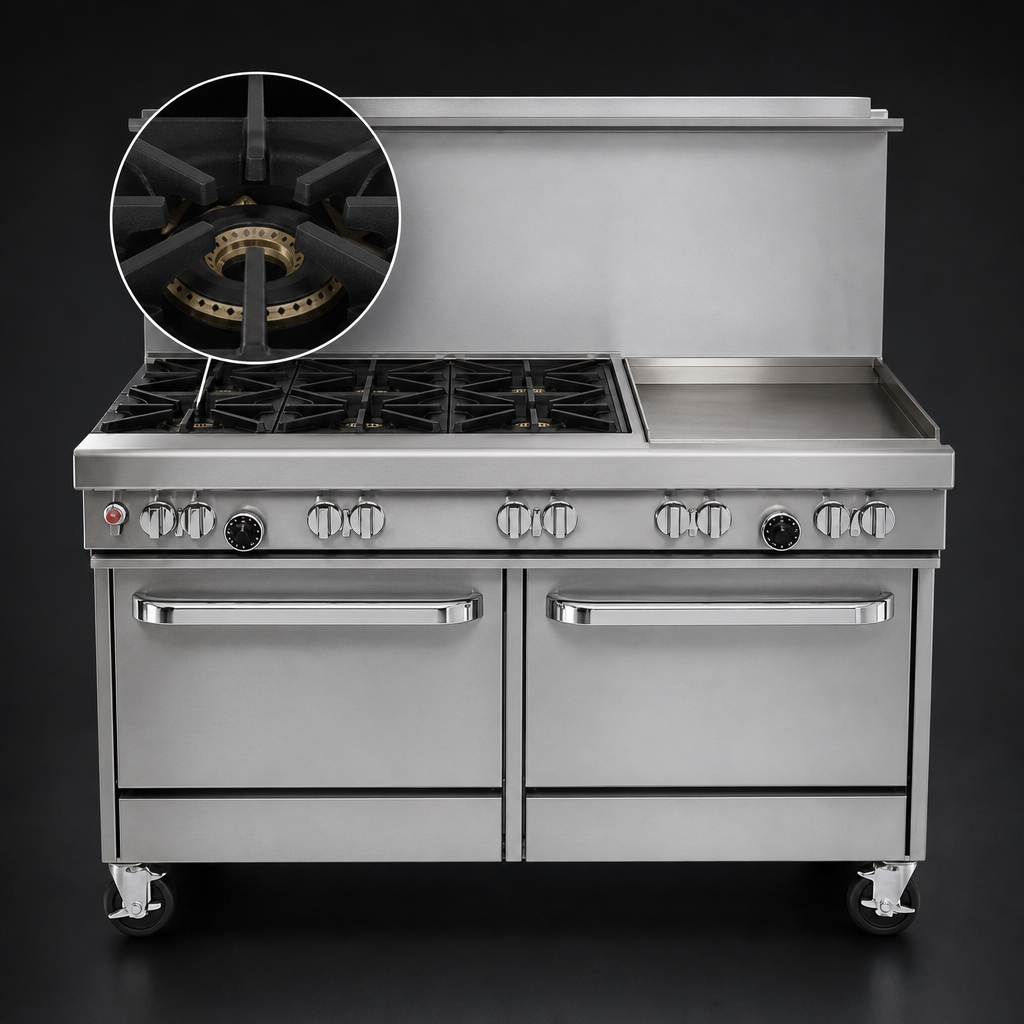

- Four (4) patented non-clog cast-iron burners with standing pilots—ideal for even the largest stock pots.
- 36″ x 24″ smooth steel griddle (right side) with ½″ polished plate and raised splash edges for superior heat retention & easy cleanup.
- Two (2) standard 45,000 BTU ovens with battery spark ignition and snap-action thermostats adjustable from 175 °F – 550 °F (79 °C – 288 °C).
- Includes one heavy-duty rack per oven; porcelain-enamel interiors with coved corners speed daily cleaning.
- Full stainless front, sides, high-shelf & 4″ deep rail plus 6″ adjustable stainless legs for rock-solid support.
- Front-mounted manual gas shut-off and factory-installed regulator simplify installation and service.
- 22½″ flue riser with integrated utility shelf—perfect for small pans, spices or finishing plates.
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network.
At-a-Glance Specifications
| Overall width | 60 ¾″ (1543 mm) |
|---|---|
| Overall depth | 34″ (864 mm) |
| Cook-top height | 37″ (940 mm) |
| With flue riser | 59 ½″ (1511 mm) overall height |
| Cooking surface | 27″ deep; (4) 12″ x 12″ cast-iron grates + 36″ griddle |
| Total BTU input | 286,000 BTU/hr (Natural Gas) |
| Gas connection | ¾″ NPT (female); minimum inlet pressure 7″ W.C. |
| Electrical | None required (battery spark ignition) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor (see Southbend Limited Warranty for details) |
Why Choose the Ultimate Series?
- Lifetime-clog-free burners reduce downtime and service calls.
- Modular platform allows future conversion to wavy, star, or Pyromax burners (sold separately).
- Available Southbend-engineered accessories—from salamander mounts to rear step-up burners—let you tailor the range as your menu evolves.
- Qualifies for Middleby equipment-financing programs—preserve capital while upgrading your line.
For commercial use only. Observe local codes, a minimum 10″ side & rear clearance to combustibles, and always install under a properly vented hood.
