Southbend (Middleby)  |  Ultimate  |  SKU: 4601DD-2CR

Southbend (Middleby) 4601DD-2CR Ultimate Gas Ranges

$12,775.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 60" Restaurant Range – 6 Burners & 24" Charbroiler (Right)

Model 460-DD | 352,000 BTU | Natural or LP Gas

A true workhorse for high-volume kitchens, the Southbend Ultimate 60" range marries six high-output open burners, a full 24" charbroiler, and two heavy-duty ovens in one rugged, all-stainless chassis.

Key Features

  • 60 ¾" wide with a 37" high cooking surface
  • (6) 33,000 BTU non-clog cast-iron burners with easy-lift grates

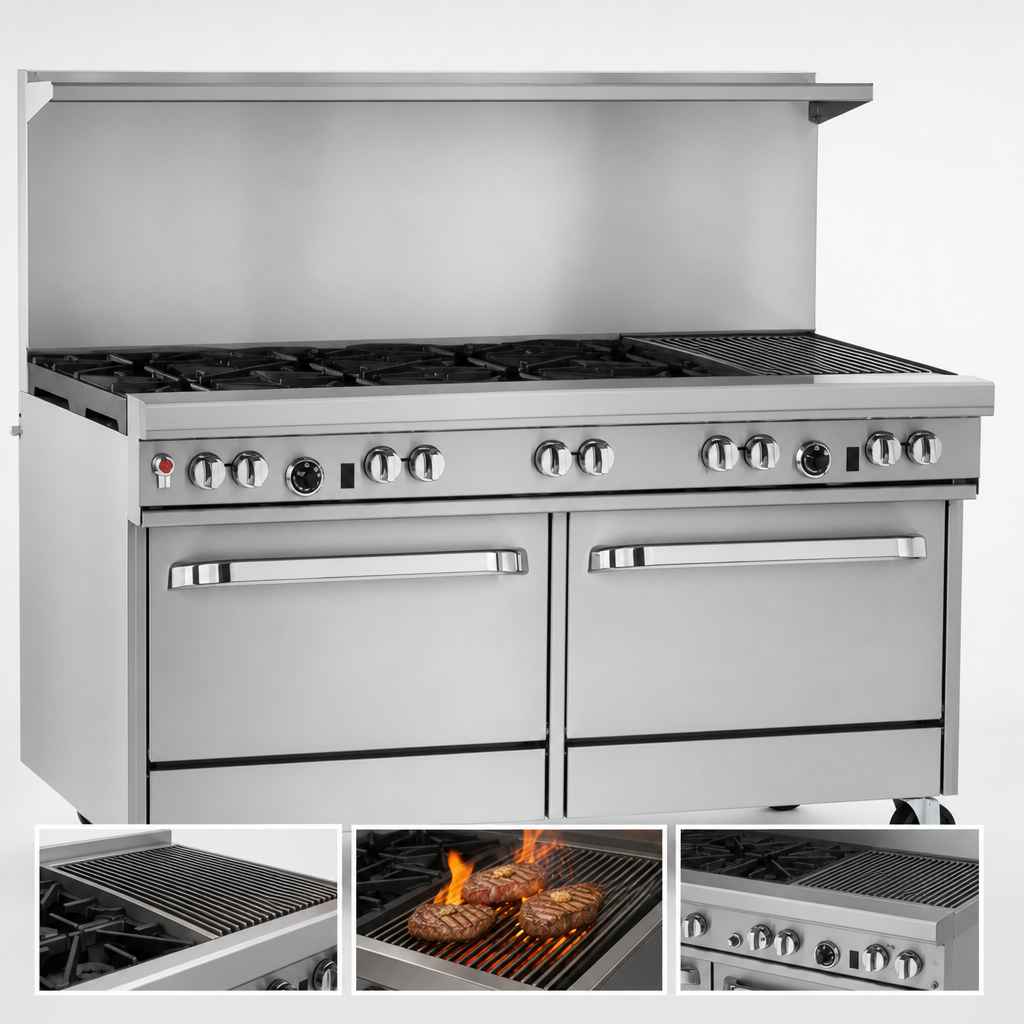

  • 24" cast-iron radiant charbroiler (right-hand) rated at 64,000 BTU
  • (2) 45,000 BTU standard bake ovens with battery-spark ignition
  • Includes one chrome-plated rack per oven; two rack positions
  • 22 ½" flue riser with reinforced utensil shelf
  • 4" deep stainless front rail & front-mounted master gas shut-off
  • Factory-installed ¾" pressure regulator; single rear gas connection
  • Stainless steel front, sides, shelf & 6" adjustable legs
  • CSA Gas & NSF certified; 1-year parts & labor warranty

Performance at a Glance

Total Input 352,000 BTU/hr
Open Burners 6 × 33,000 BTU non-clog cast iron
Charbroiler 24" radiant (right) – 64,000 BTU
Ovens 2 × 45,000 BTU | 175 °F – 550 °F thermostat range
Cooking Surface 27" deep; rear grates support up to 14" stock pots
Oven Cavity (each) 14"H × 26"W × 26.5"D, porcelain-enamel
Gas Connection ¾" NPT (rear)
Overall Dimensions 60.75"W × 34"D × 59.5"H (to top of flue)
Shipping Weight Approx. 1,075 lb

What's Included

  • (2) chrome oven racks
  • Battery-spark ignition module – no external electricity required
  • Installation & operation manual
Important: For safe operation and long equipment life:
  • Never block charbroiler grates with sheet pans during cleaning.
  • Place cookware 12" or larger on rear burners to avoid overheating the front rail.
  • Charbroiler requires installation under a properly vented hood on non-combustible surfaces.

Certifications

  • CSA Gas
  • NSF
  • Made in USA

Need casters, quick-disconnect hose sets, or extra oven racks? Add-ons are available below or chat with our team for guidance.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Base

(2) standard ovens

Top

(6) open burners, (1) 24" charbroiler

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 60", (6) non-clog burners, standard grates, (1) 24" charbroiler right, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 352,000 BTU, CSA, NSF
