Southbend (Middleby) 4601DC-7R Ultimate Gas Ranges
Description
Southbend Ultimate 60" Gas Restaurant Range – 4 Non-Clog & 4 Pyromax Burners
Standard Oven • Cabinet Storage • 337,000 BTUBuilt for kitchens that run full-throttle from open to close, the Southbend Ultimate 60" range delivers the perfect balance of everyday versatility and raw cooking power. Four precision non-clog burners handle your delicate sauces and sautés, while four Pyromax burners on the right side unleash a blistering 40,000 BTU each for rapid boils, woks and stock pots. A full-size standard oven and integrated cabinet base keep productivity—and profits—on the front burner.
Key advantages

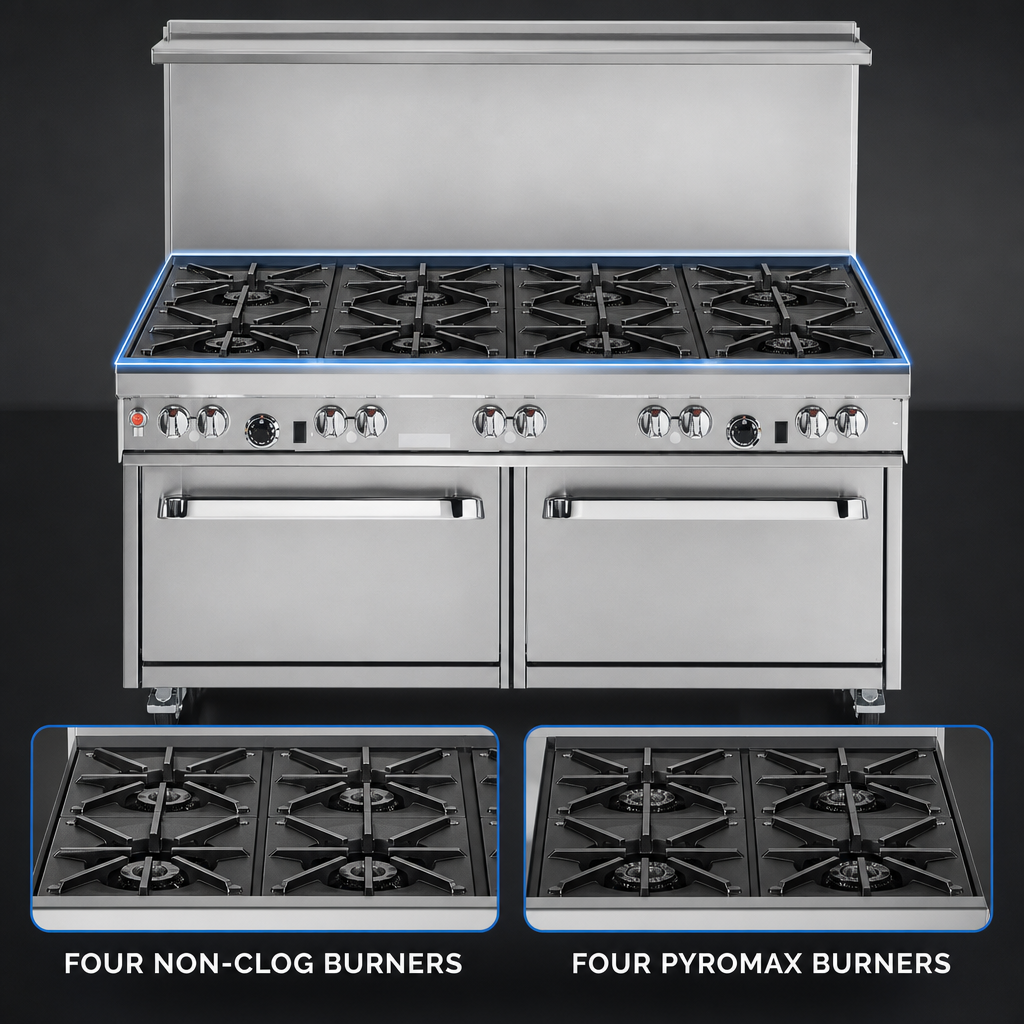

- Eight open burners: • 4 × 33,000 BTU non-clog burners (left) • 4 × 40,000 BTU Pyromax burners (right)
- 27"-deep cooking surface with heavy-duty cast-iron grates that support up to a 14" stock pot.

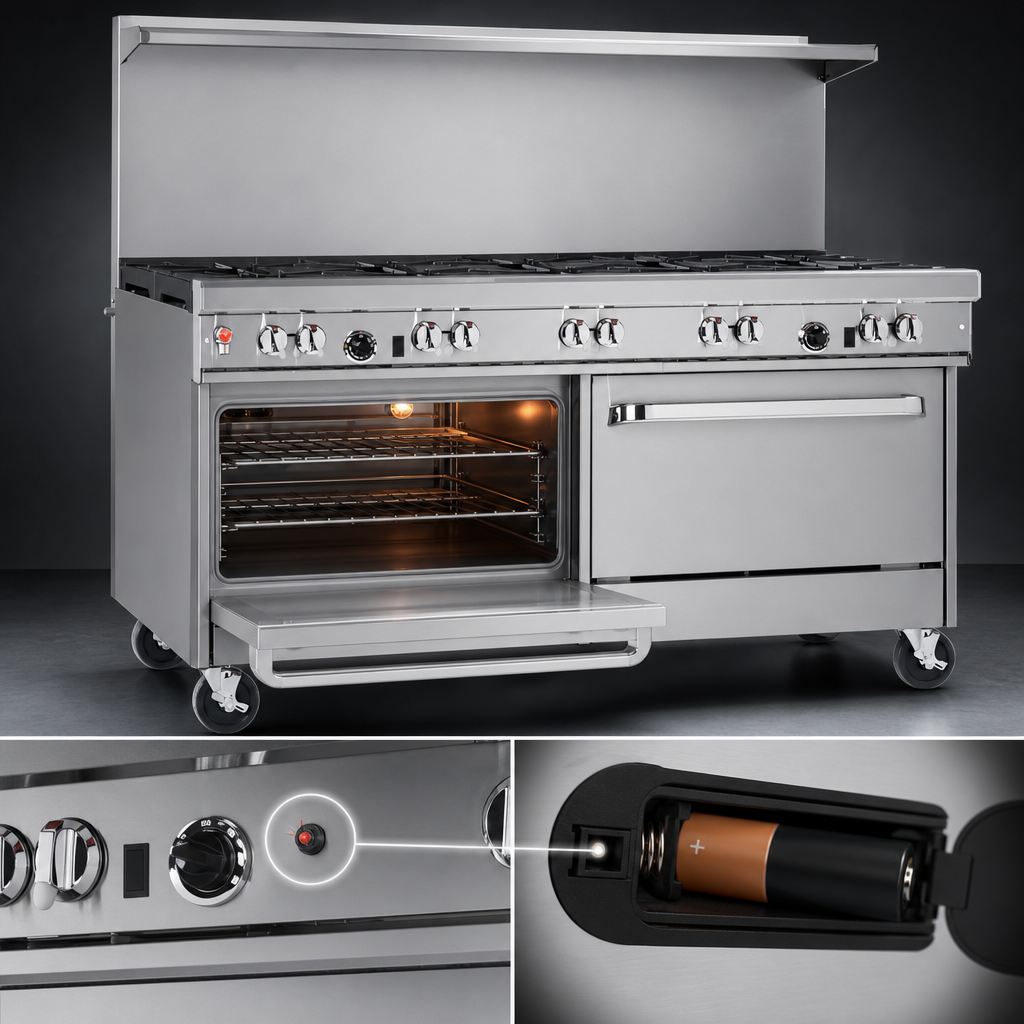

- 45,000 BTU standard oven with reliable battery-spark ignition—no matches required.
- Porcelain-enameled oven cavity (14" H × 26" W × 26.5" D) fits full-size sheet pans both directions; one rack supplied.
- Stainless-steel cabinet base provides convenient, easy-clean storage (optional doors available).
- 22-1/2" flue riser with heavy-duty plate shelf for warming and plating.
- Front-mounted manual gas shut-off and factory-installed 3/4" regulator for fast, safe hookups.
- All-stainless front, sides, rail & shelf plus 6" adjustable legs for long-term durability and simple sanitation.
- CSA & NSF certified; backed by a 1-year parts & labor warranty.
Technical specifications
| Manufacturer / Series | Southbend – Ultimate Restaurant Range |
|---|---|
| Overall width | 60 3/4 in (1543 mm) |
| Cooking height | 37 in (940 mm) |
| Burner configuration | 4 non-clog + 4 Pyromax |
| Total input | 337,000 BTU/hr (natural gas) |
| Oven type | Standard bakers oven, battery-spark ignition |
| Oven interior | 14" H × 26" W × 26.5" D • fits full-size pans |
| Base | Stainless-steel open cabinet |
| Flue riser | 22 1/2" with shelf |
| Gas connection | 3/4" NPT (regulator included) |
| Clearances | 0" sides/rear to non-combustible • 10" sides/rear to combustible |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Oversized cookware (12" diameter or larger) should be placed on the rear grates to prevent excess heat in the front rail. Always install under a properly vented hood.
Mixed burner power—explained
- Non-clog burners: One-piece cast-iron design resists blockage and spreads flame evenly for delicate tasks.
- Pyromax burners: Patented three-piece assembly with drip ring shields ports and delivers instant, high-output heat.
- Unlimited flexibility: Go from gentle simmer to rolling boil without changing stations or sacrificing speed.
