Southbend (Middleby) 4601DC-6L Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range – Split Burner, Oven & Cabinet Base
Item #7706 | 356,000 BTU | CSA & NSF ListedDesigned for high-volume kitchens that refuse to compromise on flexibility or fire-power, the Southbend Ultimate 60" range loads three different burner types, a full-size oven and a convenient storage cabinet into one rugged, stainless-steel chassis.
At-a-Glance Features- 60-3/4" wide heavy-duty restaurant range with 37" high cooking surface

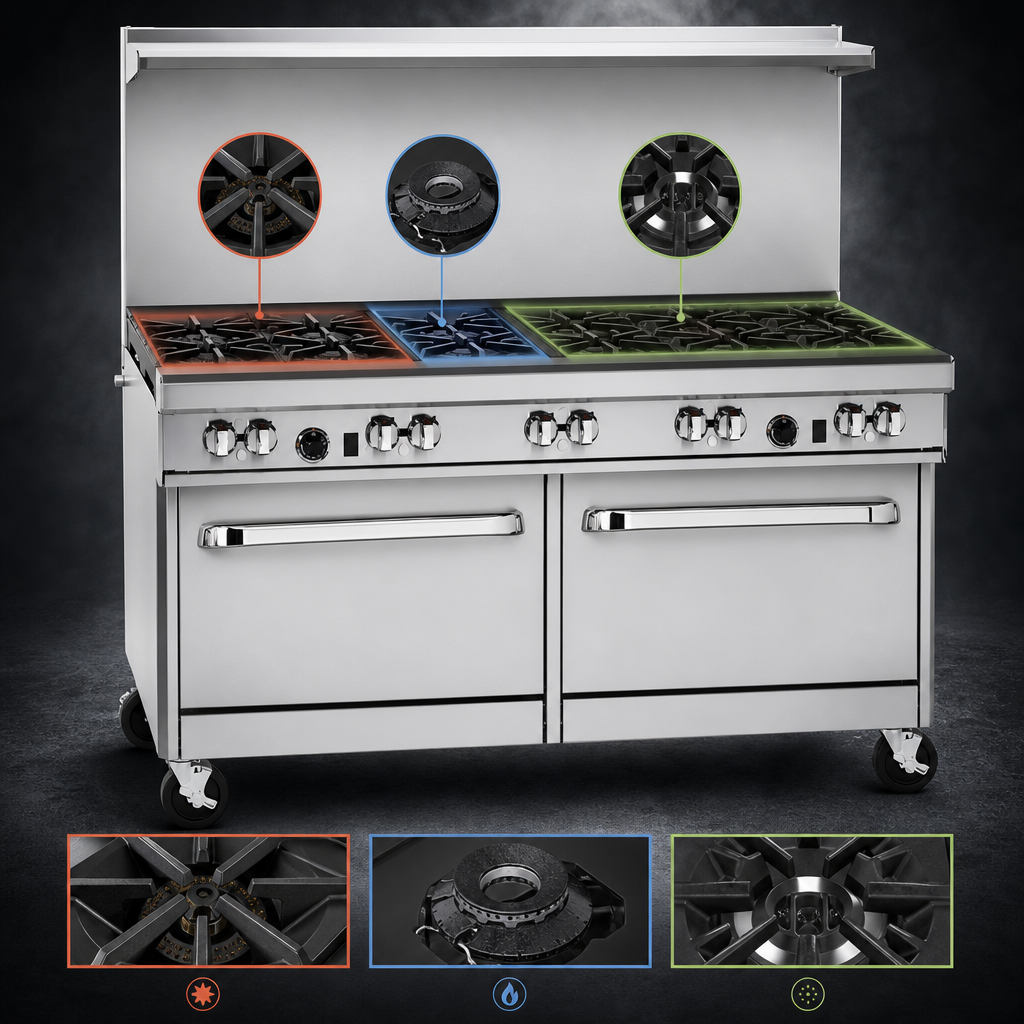

- Split left-side power pack:
- (3) Star/Sauté burners – 33,000 BTU each (front-left)
- (2) Pyromax™ high-output burners – 40,000 BTU each (rear-left)
- Right-side productivity zone:
- (4) Lifetime non-clog burners – 33,000 BTU each
- Removable cast-iron grate tops (rear sections accept up to a 14" stock pot)
- Standing pilots for all open-top burners; front-located manual shut-off
- 45,000 BTU standard oven with battery-spark ignition & thermostatic control 175-550 °F
- Includes (1) oven rack with two rack positions
- Full stainless-steel front, sides, 4" front rail, 22-1/2" flue riser with storage shelf & 6" adjustable legs
- Cabinet base (left) for sheet pans, pots or smallwares—optional doors available at no charge
- Factory-installed 3/4" gas pressure regulator & battery pack
- Total input: 356,000 BTU/hr – single 3/4" NPT rear gas connection
- One-year limited parts & labor warranty
| Overall width | 60.75" (1543 mm) |
|---|---|
| Overall depth | 34.00" (864 mm) |
| Cooking surface height | 37.00" (940 mm) |
| Flue riser height | 22.5" with heavy-duty shelf |
| Burner configuration |
(3) Star/Sauté × 33 k BTU (2) Pyromax × 40 k BTU (4) Non-clog × 33 k BTU |
| Standard oven | 45,000 BTU, 26" W × 26.5" D × 14" H porcelain cavity, 175-550 °F thermostat |
| Gas connection | 3/4" NPT (rear, right-hand side) |
| Total input | 356,000 BTU/hr |
| Certifications | CSA Flame, CSA Sanitation, NSF |
- Three heat profiles in one footprint – sear, simmer or pan-roast without moving off the line.
- Pyromax muscle – dedicated 40 k BTU burners crush re-thermalization and wok loads.
- Legendary durability – one-piece cast-iron burner heads are guaranteed for life against clogging.
- Reduced downtime – battery-spark oven ignition means no electrical hook-up is required.
- Easy clean-up – two full-width crumb trays, coved porcelain oven corners and lift-off grates.
For best performance, install under a vented hood and supply a minimum of 7" W.C. (natural gas) inlet pressure. Unit is intended for commercial use only.
