Southbend (Middleby) 4601DC-5R Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
7 × 33 K BTU Non-Clog Burners • 2 × 40 K BTU Pyromax Burners • Standard Oven + Cabinet Base • 356 000 BTU TotalPush out tickets fast with nine open burners, a high-performance standard oven and a roomy cabinet base—all packed into Southbend’s hardest-working range platform. The Ultimate Series is built for non-stop, high-volume cooking, giving chefs the rugged power and precision they need shift after shift.
Key Advantages
- Serious firepower – 356 000 BTU/hr total output keeps sauté, stock and sear lanes blazing at once.
- Field-proven non-clog design – seven patented, one-piece 33 K BTU cast-iron burners resist pot-overs & carbon build-up for life-long flow.
- Two 40 K BTU Pyromax™ burners – perfect for rapid boils, woks or high-heat stock work on the back line.

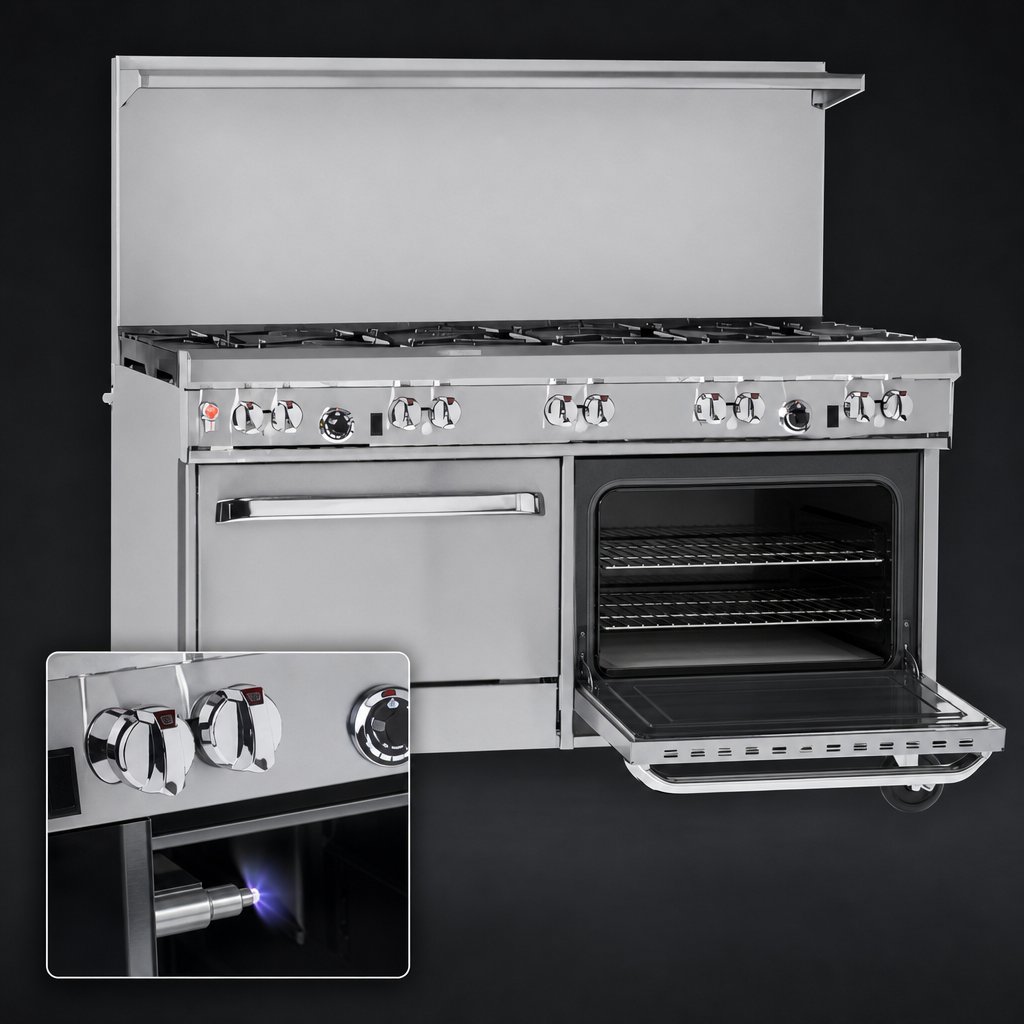

- Standard oven convenience – 45 K BTU, 175-550 °F thermostat, porcelain interior and an included rack.
- Built-in storage – full-width stainless cabinet base keeps sheet pans, hotel pans or smallwares within reach.
- Stainless everywhere – front, sides, shelf and 4" rail wipe down easily and look great on the line.
- Ready out of the box – factory 3/4" regulator, standing pilots (top) and battery-spark oven ignition simplify installation.
- Meets CSA & NSF standards and ships with a 1-year parts & labor warranty.
Technical Specifications
| Model / Series | Ultimate Restaurant Range – 60" (Custom AC configuration) |
|---|---|
| Overall width | 60 3/4" (1543 mm) |
| Depth × Cooking height | 34" D × 37" H |

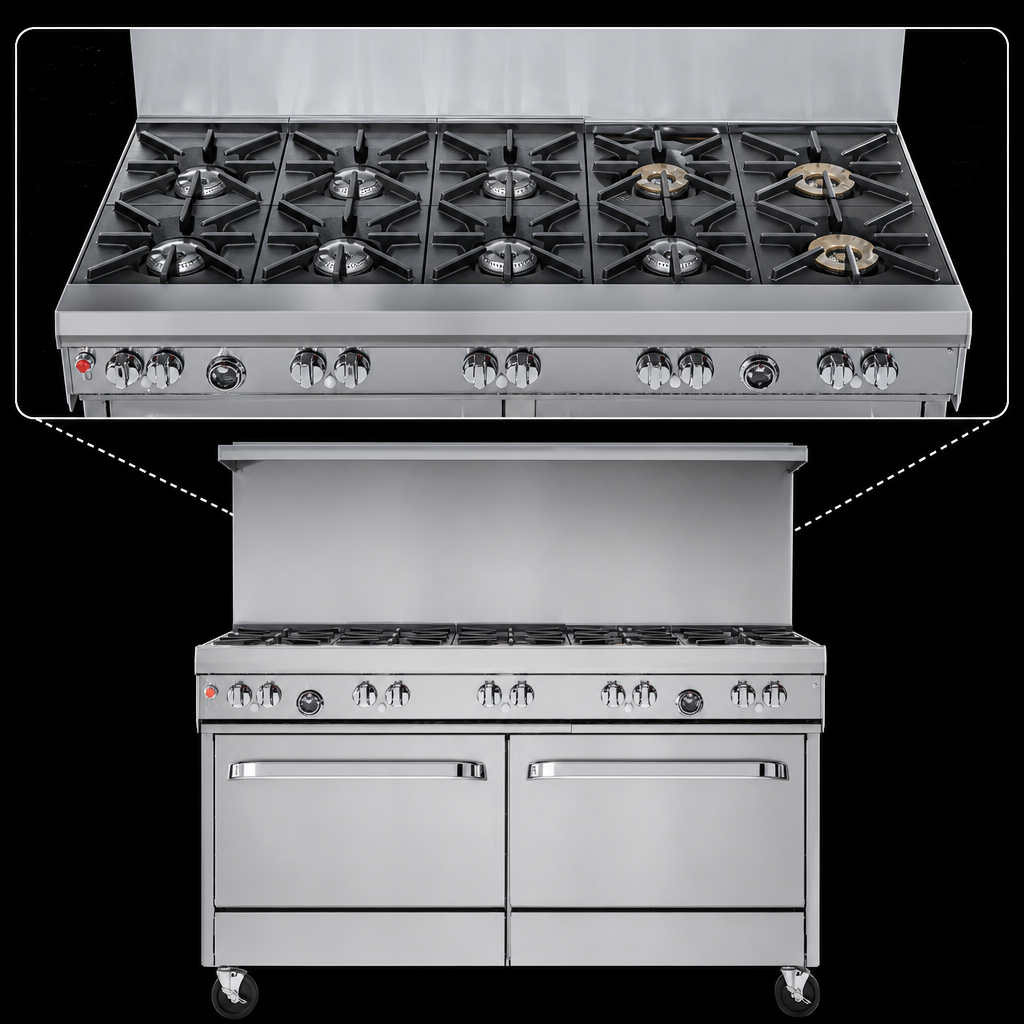

| Open burners | 7 × 33 000 BTU non-clog (front & left) + 2 × 40 000 BTU Pyromax rear right |
| Top grates | Four removable cast-iron sections; rear accepts up to 14" stock pots |
| Oven type / BTU | Standard, snap-action thermostat 175-550 °F / 45 000 BTU |
| Oven cavity | 14"H × 26"W × 26 1/2"D, coved porcelain, 1 rack (2 positions) |
| Base (LH) | Full stainless cabinet with adjustable 6" legs |
| Flue riser & shelf | 22 1/2" flue riser with heavy-duty plate shelf |
| Total gas input | 356 000 BTU/hr (Natural Gas) |
| Gas connection | Single 3/4" NPT, minimum inlet 7" W.C. |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend terms) |
What You Get
- Complete range with nine burners, oven & cabinet base
- (1) oven rack
- Factory pressure regulator & battery pack (oven ignition)
- 6" stainless adjustable legs
- User, installation & warranty documentation
