Southbend (Middleby)  |  Ultimate  |  SKU: 4601DC-5L

Southbend (Middleby) 4601DC-5L Ultimate Gas Ranges

$10,960.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

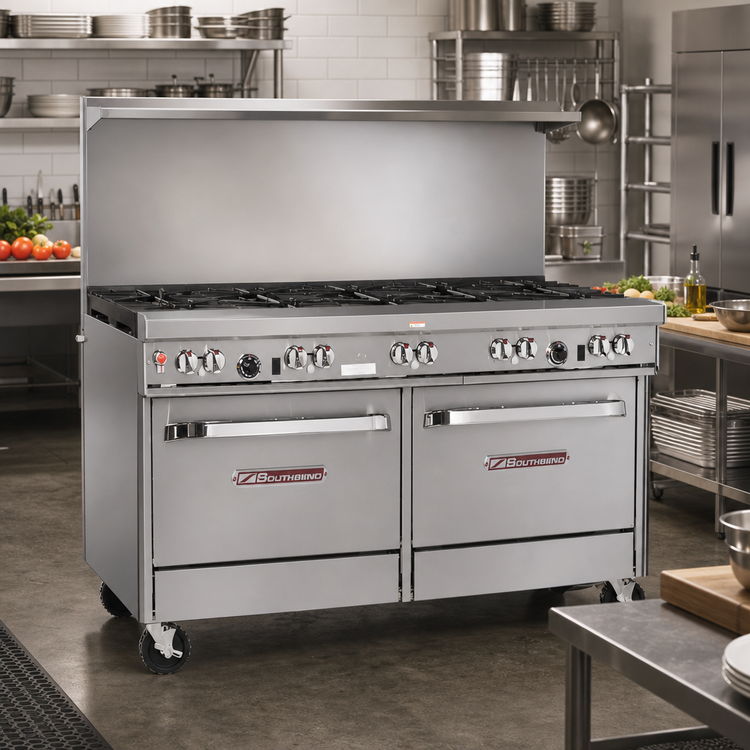

Southbend Ultimate 60" Gas Restaurant Range

9-Burner • Standard Oven & Cabinet Base • 356,000 BTU

Dominate the dinner rush with the Ultimate Series—Southbend’s flagship range engineered for heavy-volume kitchens that refuse to compromise on power or durability.

Why You’ll Love It

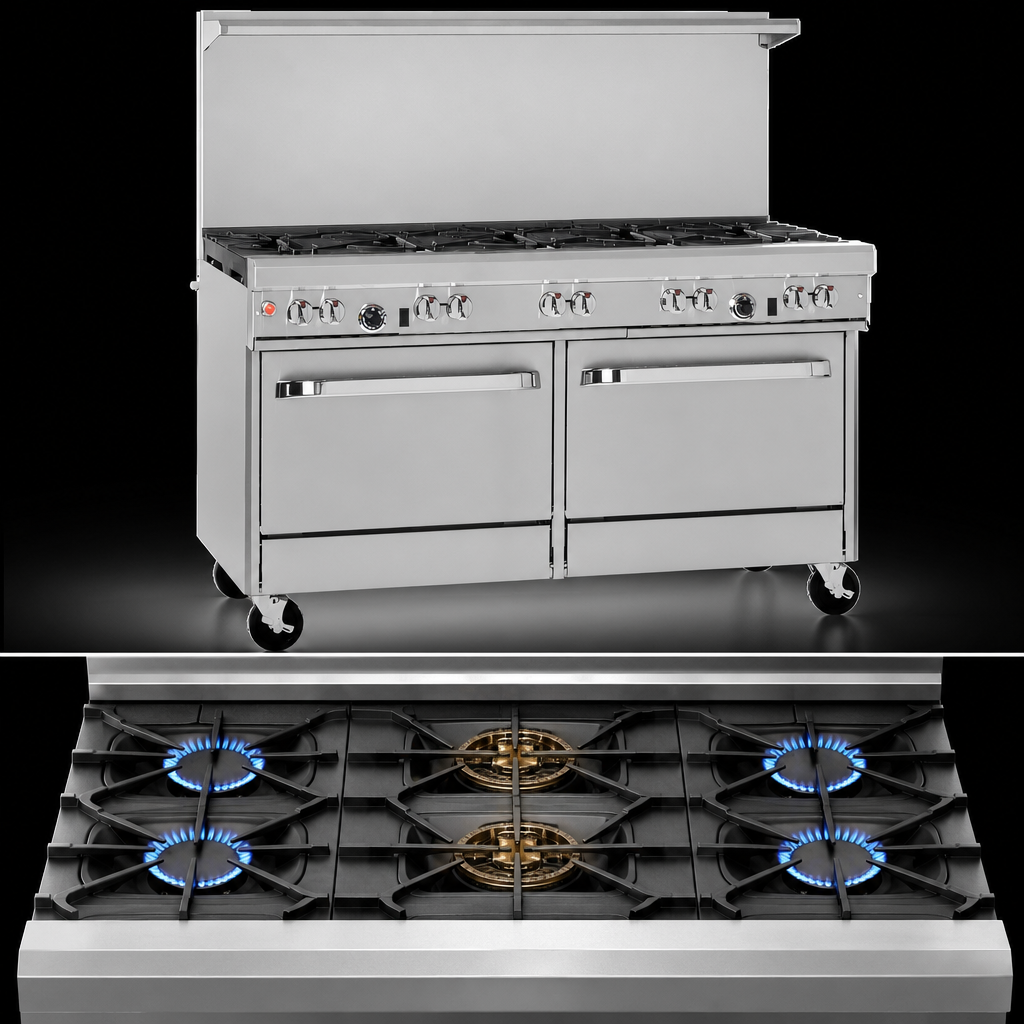

  • Custom cooktop: (3) × 33,000 BTU non-clog burners (front left) + (2) × 40,000 BTU Pyromax burners (rear left) + (4) × 33,000 BTU non-clog burners (right).
  • 356,000 BTU total—including a 45,000 BTU standard oven—for fast heat-up and endless production capacity.
  • One-piece cast-iron grates handle stock pots up to 14" while keeping small pans stable.

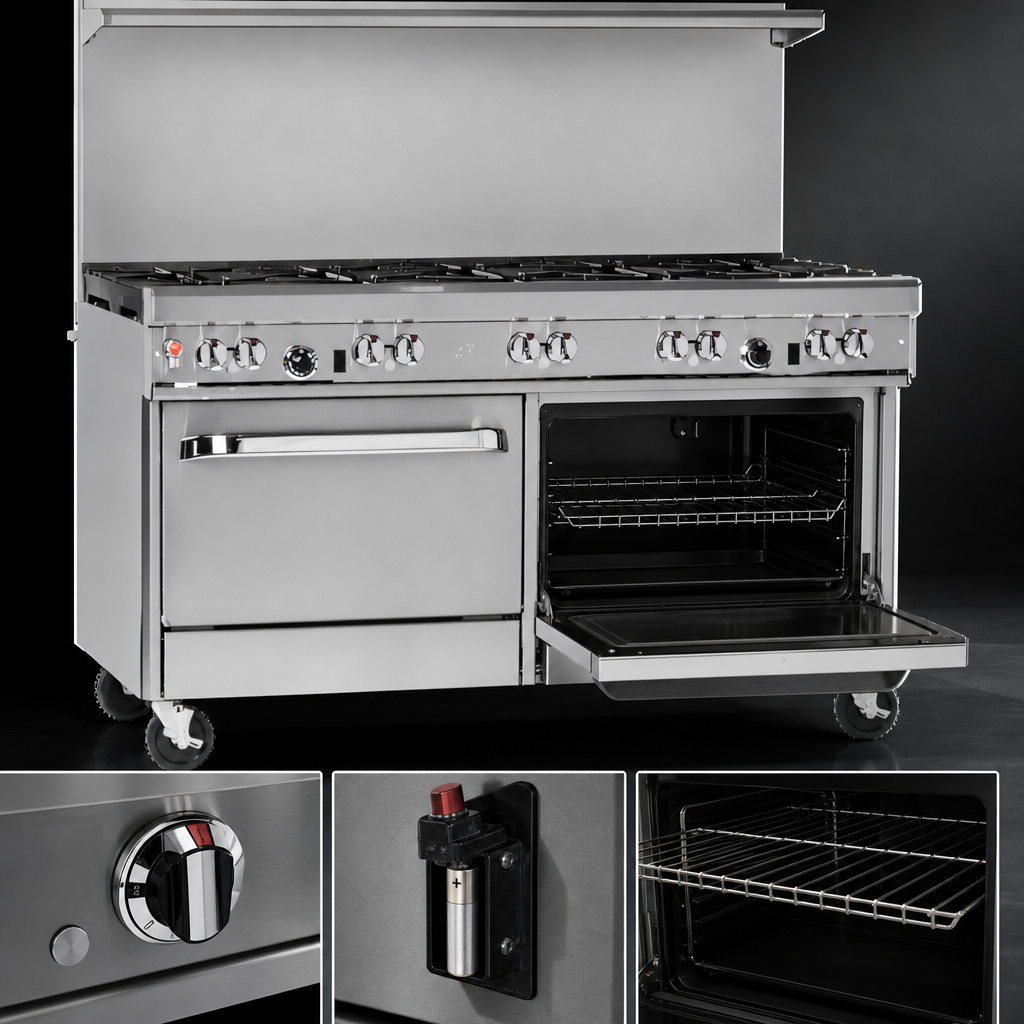

  • Standing pilots on the cooktop for instant lighting; battery-spark ignition on the oven—no external power required.
  • Porcelain-enameled oven (14" H × 26" W × 26.5" D) cleans up fast and fits full-size sheet pans in either direction.
  • 22-1/2" stainless flue riser with utensil shelf keeps tools close and the line uncluttered.
  • Front-mounted master gas shut-off and factory-installed 3/4" regulator streamline installation and service.
  • Rugged stainless front, sides, rail & shelf on 6" adjustable legs—built to thrive in the harshest commercial environments.
  • CSA & NSF listed; backed by a 1-year parts & labor warranty.

Technical Specs

Exterior width 60.75" (1543 mm)
Exterior depth 34" (864 mm)
Cooking surface height 37" (940 mm)
Flue riser height 22.5" with integrated shelf
Total BTU input 356,000 BTU (Natural Gas)
Open-top output 311,000 BTU
Oven output 45,000 BTU • 175-550 °F thermostat
Oven racks supplied / positions 1 rack / 2 positions
Gas inlet 3/4" NPT female • 7" W.C. min. (Natural)
Electrical Battery for spark ignition (no cord)
Certifications CSA, NSF
Warranty 1-year limited parts & labor

Model configured for Natural Gas. LP conversion kits available. Install under a properly sized, vented hood per local code.

Commercial use only: When using cookware 12" or larger, keep vessels to the rear burners to prevent heat damage to front components—failure to do so may void warranty.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

60.75in

Depth

34.0in

Shipping Weight

1075.0lbs

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Top

(9) open burners

Base

(1) standard oven, (1) cabinet

Specifications

Ultimate Restaurant Range, gas, 60", (3) non-clog burners front left, (2) pyromax burners rear left, (4) non-clog burners right, standard grates, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 356,000 BTU, CSA, NSF
