Southbend (Middleby) 4601DC-3TR Ultimate Gas Ranges
Description

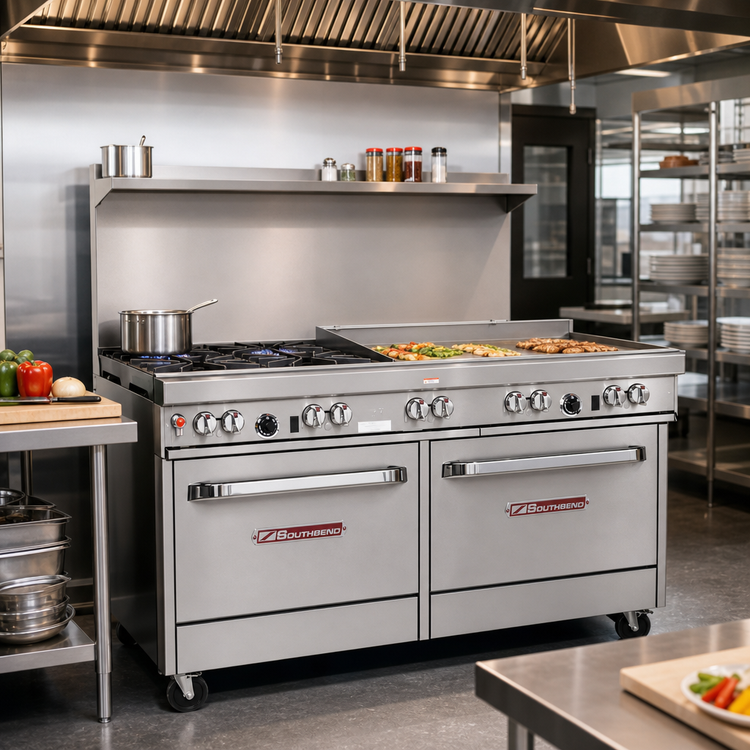

Southbend Ultimate 60" Gas Restaurant Range
4 Open Burners • 36" Thermostatic Griddle (Right) • Standard Oven & Cabinet BaseBuilt for high-volume kitchens that demand both power and flexibility, the Southbend Ultimate Series 60" range packs non-clog burners, a precision-controlled griddle, full-size oven and convenient storage cabinet into one rugged, stainless-steel workstation. From breakfast rush to dinner service, this all-in-one range keeps every menu item within arm’s reach.
Key Features
- 60-3/4" wide commercial gas range with a 37" cooking surface height
- (4) 33,000 BTU non-clog cast-iron open burners with standing pilots
- Removable cast-iron grates—rear grate accommodates stock pots up to 14"

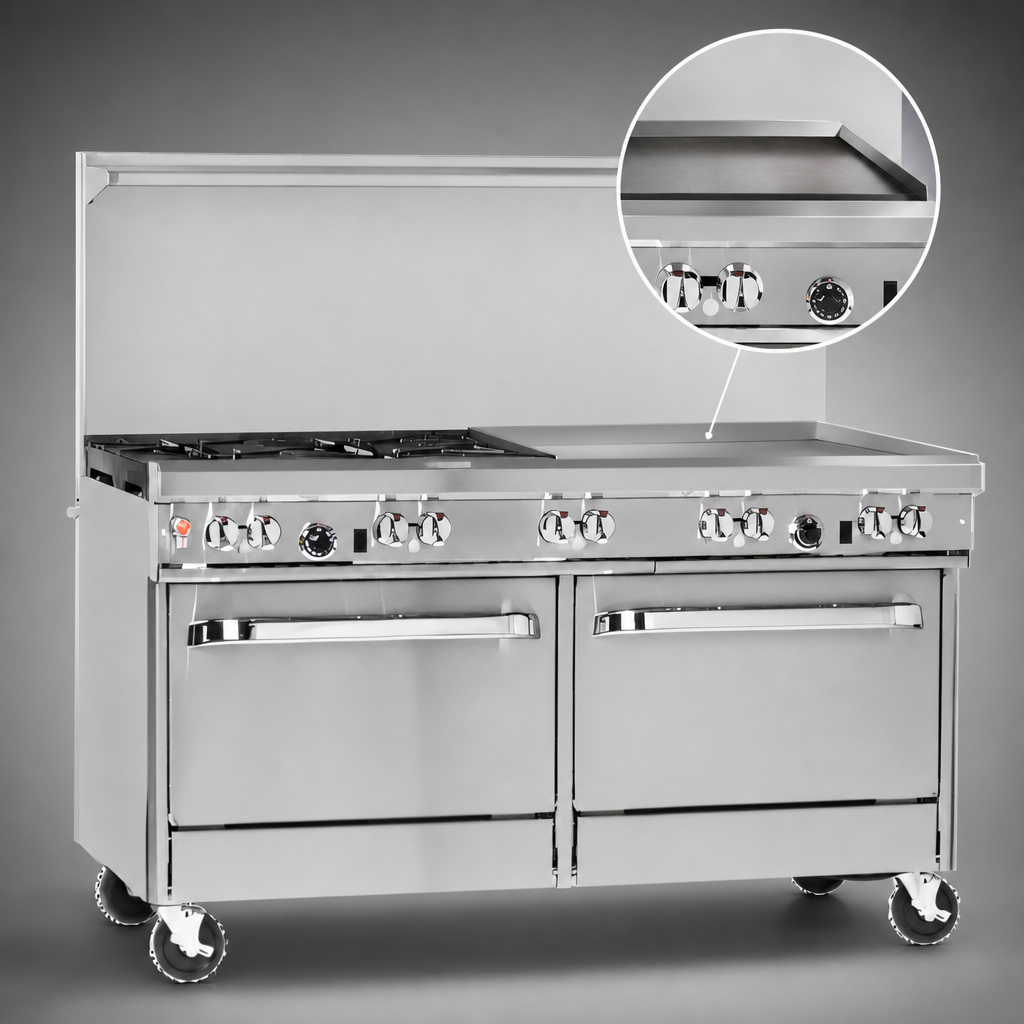

- Right-side 36" griddle
• ½" polished steel plate with raised sides
• Thermostatic control range 175 °F – 550 °F - 45,000 BTU standard oven with battery-spark ignition; includes one rack with two positions
- Left-side stainless cabinet base for dry storage (optional doors available)
- 4" stainless front rail plus front-mounted manual gas shut-off for fast line safety
- 22-1/2" flue riser with heavy-duty shelf—ideal for plates, spices and utensils
- Stainless steel front, sides, shelf and 6" adjustable legs (casters optional)
- Total input: 241,000 BTU/hr • Factory-installed regulator • Single ¾" rear gas connection
- Certified NSF, cCSAus, CSA Flame & CSA Star for gas safety and sanitation
- Backed by a 1-year parts & labor warranty
At-a-Glance Specifications
| Overall Width | 60 3⁄4 in (1543 mm) |
|---|---|
| Overall Depth | 34 in (864 mm) |
| Height (to flue shelf) | 59 1⁄2 in (1511 mm) |
| Cooking Surface Height | 37 in (940 mm) |
| Open Burners | 4 × 33,000 BTU non-clog (132,000 BTU) |
| Griddle | 36" W × 27" D, ½" thick steel, thermostatic – 96,000 BTU |
| Oven | 26" W × 26 ½" D × 14" H cavity, 45,000 BTU |
| Total Input | 241,000 BTU/hr |
| Gas Connection | ¾" NPT (rear) – min 7" WC Nat / 11" WC LP |
| Construction | Stainless front, sides, shelf & 6" legs |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor |
Popular Accessories (sold separately)
- Swivel casters with front locks
- Cabinet base doors
- Additional oven racks
- ¾" quick-disconnect gas hose kits (3 ft, 4 ft or 5 ft)
- Salamander & cheesemelter mounting kits
Ask about Middleby Equipment Financing to turn this powerhouse range into low monthly payments.
