Southbend (Middleby) 4601DC-3GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60″ Gas Restaurant Range
4 Open Non-Clog Burners • 36″ Right-Hand Griddle • Standard Oven + Cabinet Base • 241,000 BTUEngineered for high-volume kitchens that refuse to compromise, the Southbend Ultimate Series packs best-in-class power, flexibility and easy-clean durability into a single 60-inch footprint. With four 33 kBTU open burners, a full 36″ steel griddle plate and a battery-spark-ignition oven, you can sauté, sear, griddle and bake simultaneously—while the built-in cabinet keeps sheet pans and utensils within arm’s reach.
Why You’ll Love It

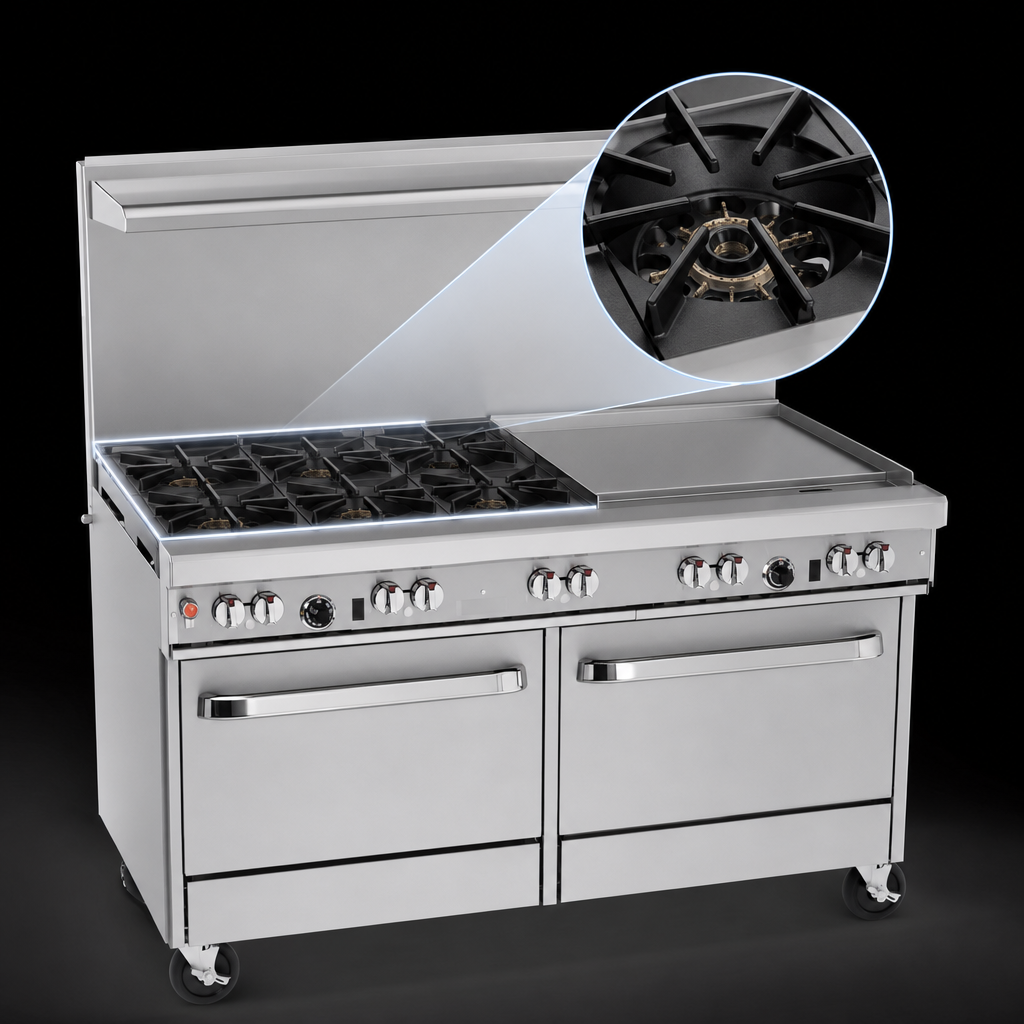

- Four 33 kBTU non-clog burners – patented one-piece cast iron design resists grease build-up and is easy to lift out for cleaning.
- 36″ smooth steel griddle (right) – ½″ polished plate with raised splash guards handles breakfast rushes, burgers and more.
- 45 kBTU standard oven – porcelain-enameled interior, snap-action thermostat (175-550 °F) and battery-spark ignition for hassle-free starts.
- Integrated cabinet base – full-width stainless storage with one heavy-duty rack included.
- 22½″ flue riser with heavy-duty shelf – keeps plates, spices or smallwares warm and ready to serve.
- Stainless steel construction – front, sides, rail & shelf resist dents, corrosion and daily chemical cleaning.
- Front-mounted manual gas shut-off and factory-installed ¾″ regulator simplify installation and maintenance.
- 6″ adjustable stainless legs provide a rock-solid stance on uneven floors.
- Certified: cCSAus, CSA Flame, CSA Star & NSF – ready for code inspections nationwide.
Performance & Utilities
| Total Input | 241,000 BTU/hr (natural or LP) |
|---|---|
| Open Burners (4) | 33,000 BTU each – standing pilots |
| Griddle | ≈96,000 BTU (36″ × 24½″, manual control) |
| Standard Oven | 45,000 BTU – battery spark ignition, 1 rack / 2 positions |
| Gas Connection | ¾″ NPT (rear) |
| Required Inlet Pressure | 7″ W.C. natural • 11″ W.C. LP |
Dimensions & Weight
| Overall (W × D × H) | 60 ¾″ × 34″ × 59 ½″ (to top of flue riser) |
|---|---|
| Cooking Height | 37″ |
| Oven Cavity (W × D × H) | 26″ × 26 ½″ × 14″ |
| Shipping Weight | ≈1,075 lb / 488 kg |
What’s in the Box
- Range fully assembled with 6″ legs
- One oven rack
- Factory ¾″ pressure regulator
- Operator’s manual & warranty registration
Popular Add-Ons (sold separately)
- Quick-disconnect gas hose kits (3-, 4- or 5-ft)
- Swivel locking caster set
- Additional oven racks
- Cabinet doors (no-charge option at time of order)
Warranty
1-Year limited parts & labor warranty. Refer to Southbend’s published terms & conditions for full details.
