Southbend (Middleby) 4601DC-2TR Ultimate Gas Ranges
Description

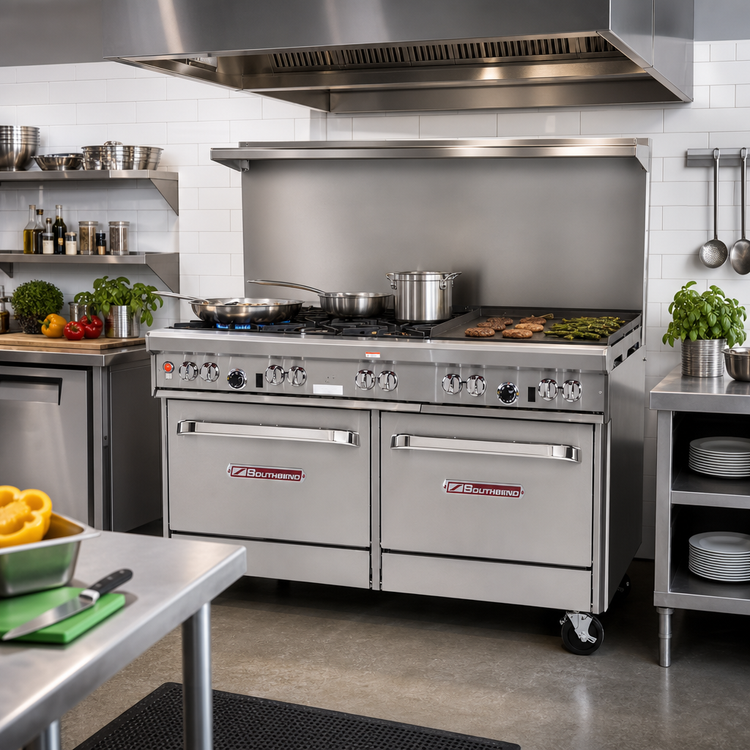

Southbend Ultimate 60" Gas Restaurant Range w/ 6 Non-Clog Burners & 24" Thermostatic Griddle
Model 460DC | Total Input 291,000 BTUBring unwavering power and versatility to the line. The Southbend Ultimate 60" range marries six lifetime-guaranteed non-clog burners, a right-side 24" thermostatic griddle, a full-size standard oven and stainless cabinet storage—all in one rugged, 291,000 BTU station built for high-volume kitchens.
Key Performance Features
- Six patented cast-iron non-clog burners (33,000 BTU each) keep ports clear and handle stock pots up to 14".

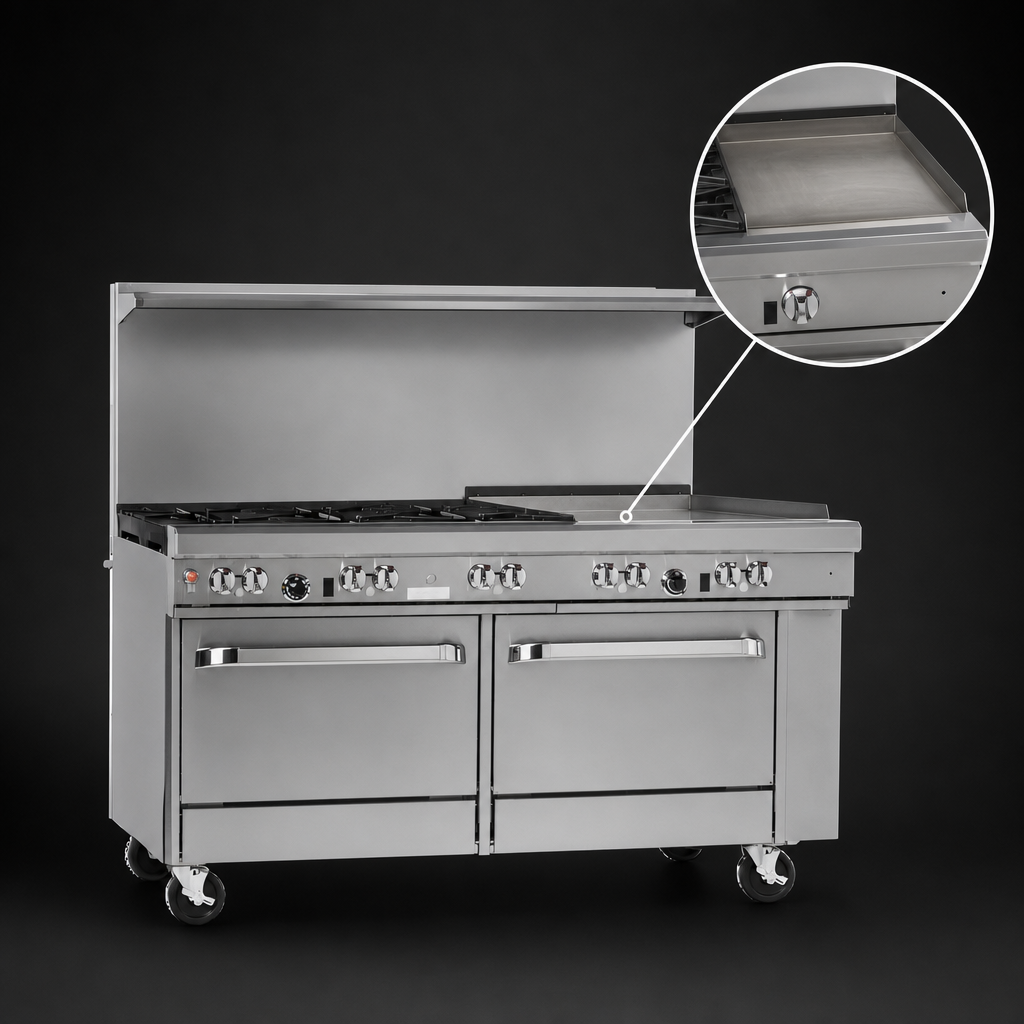

- 24" griddle (½" polished steel) with independent thermostatic control—ideal for breakfast, burgers or sauté work.
- 45,000 BTU standard oven fits full-size sheet pans either direction; supplied with one rack, two positions.
- Stainless cabinet base stores sheet pans, hotel pans and smallwares right where you need them.
- 22½" flue riser with heavy-duty shelf—perfect for seasonings, utensils or mounting a salamander.
- Front manual gas shut-off plus battery-spark oven ignition—no electrical hook-up required.
- 6" stainless adjustable legs for easy leveling on uneven floors.
- cCSAus, CSA Flame, CSA Star & NSF certified for safety and sanitation.
- Backed by a full 1-year parts & labor warranty and nationwide Southbend service network.
Technical Specifications
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Overall depth | 34" (864 mm) |
| Cook-surface height | 37" (940 mm) |
| Open burners | 6 × 33,000 BTU cast-iron, non-clog |
| Griddle section | 24" right, 64,000 BTU, ½" plate, thermostatic |
| Oven | Standard bake, 45,000 BTU; 175 °F – 550 °F thermostat |
| Total input | 291,000 BTU/hr |
| Oven cavity (W × D × H) | 26" × 26.5" × 14" |
| Gas connection | ¾" NPT (rear), 7" W.C. NG / 11" W.C. LP |
| Ignition | Standing pilot (top) & battery spark (oven) |
| Construction | Stainless front, sides, shelf & flue; removable drip trays; porcelain-lined oven |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor |
Included With Purchase
- (1) Adjustable oven rack
- Factory-installed gas pressure regulator
- 22½" flue riser / storage shelf assembly
- Owner’s manual & warranty documentation
Looking for easy monthly payments? Ask us about fast Middleby Equipment Financing.
