Southbend (Middleby) 4601DC-2GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range
6 Non-Clog Burners • 24" Right-Side Griddle • Standard Oven & Cabinet BaseEngineered for chefs who refuse to compromise, the Southbend Ultimate 60-inch range delivers 291,000 BTU of cooking power across open burners, a heavy-duty griddle, and a full-size oven—giving you the speed and flexibility to keep service moving in the busiest kitchens.
Why You’ll Love It

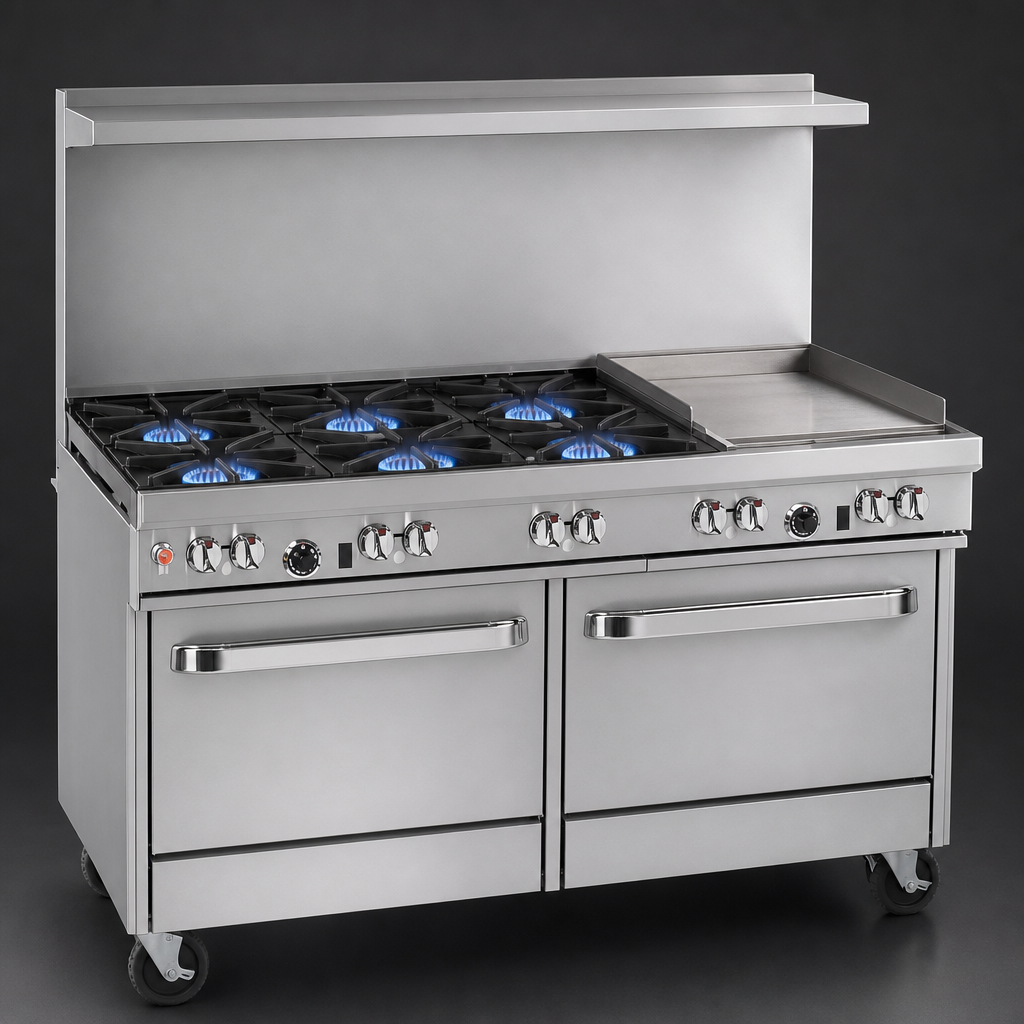

- Six 33,000 BTU patented non-clog burners with standing pilots—no ports to clean, ever.

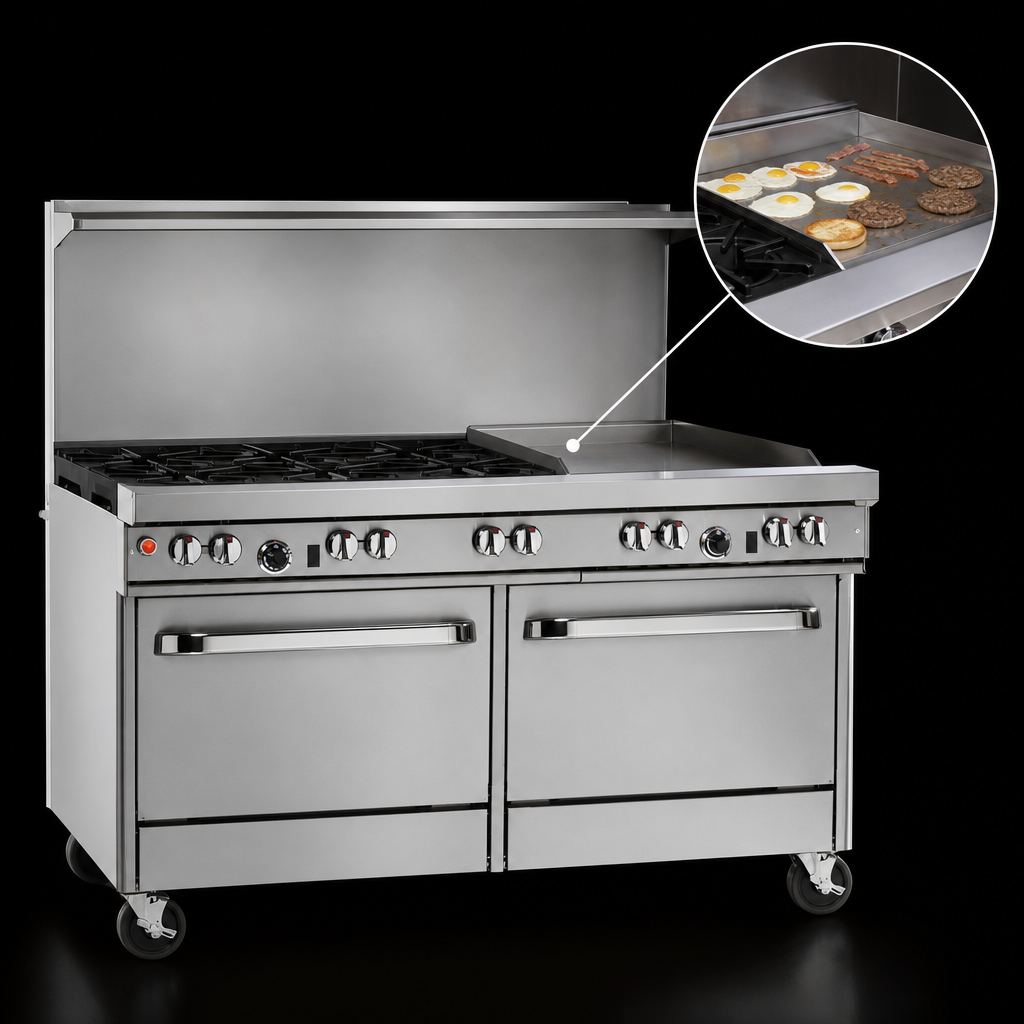

- 24" smooth steel griddle (½" plate) on the right side for breakfast favorites, searing & sautéing.
- 45,000 BTU standard oven with battery-spark ignition; fits full-size sheet pans both ways.
- Cabinet base under the griddle keeps sheet pans, smallwares or spices within reach.
- Rugged cast-iron grates hold up to a 14" stockpot and lift out for sink-side cleaning.
- 22½" flue riser with reinforced shelf adds convenient plating/storage space.
- Front-mounted manual gas shut-off and factory-installed ¾" regulator simplify installation.
- All-stainless front, sides, rail & shelf plus 6" adjustable stainless legs for long-term durability.
- Certified cCSAus, CSA Flame, CSA Star & NSF for peace-of-mind compliance.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.
Technical Specifications
| Model | 460 Series – Custom Configuration |
|---|---|
| Total BTU Input | 291,000 BTU/hr (Natural or LP) |
| Open Burners | 6 × 33,000 BTU non-clog cast-iron |
| Griddle | 24" W × 27" D, ½" polished steel, right mounted |
| Oven Type / BTU | Standard, 45,000 BTU with battery spark ignition |
| Oven Interior (WxDxH) | 26" × 26.5" × 14" (porcelain-enameled) – 1 rack, 2 positions |
| Overall Dimensions (WxDxH) | 60.75" × 34" × 37" to cooktop | 59.5" to top of flue shelf |
| Gas Connection | ¾" NPT female; 7" W.C. NAT -or- 11" W.C. LP minimum inlet |
| Warranty | 1 year parts & labor (commercial use) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
Need a different burner, griddle, or oven configuration? Ask our team about custom Southbend Ultimate builds and quick-approval equipment financing.
