Southbend (Middleby) 4601CC Ultimate Gas Ranges
Description

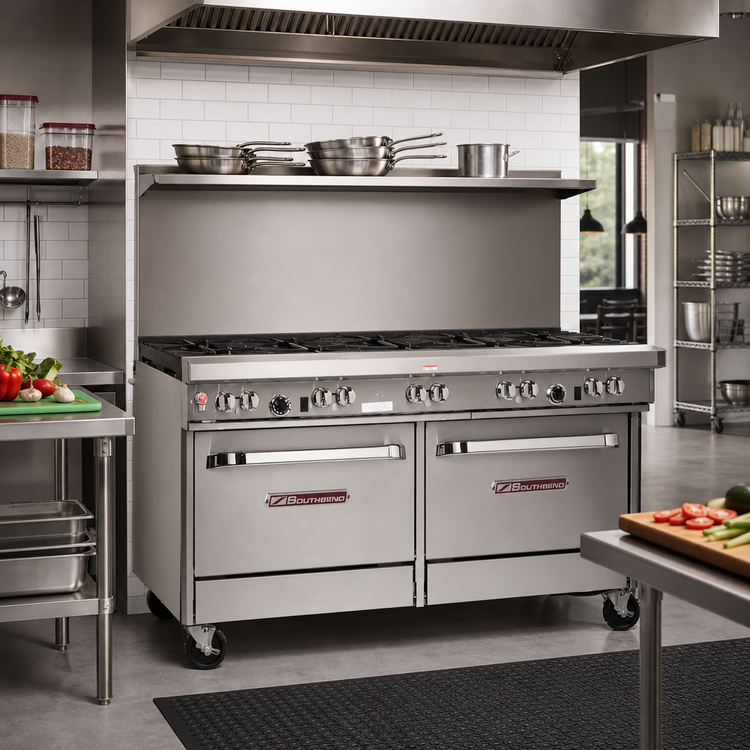

Southbend Ultimate 60" Restaurant Range – 10-Burner Gas, Cabinet Base
Model 460-CC | 330,000 BTU total outputDesigned for the busiest professional kitchens, the Southbend Ultimate 10-burner range combines extreme firepower, rock-solid construction and built-in storage that keeps your line moving fast. Ten lifetime non-clog burners sit atop a rugged stainless chassis with twin cabinets below, giving chefs the performance of a full suite in a single 60-inch footprint.
Key performance advantages

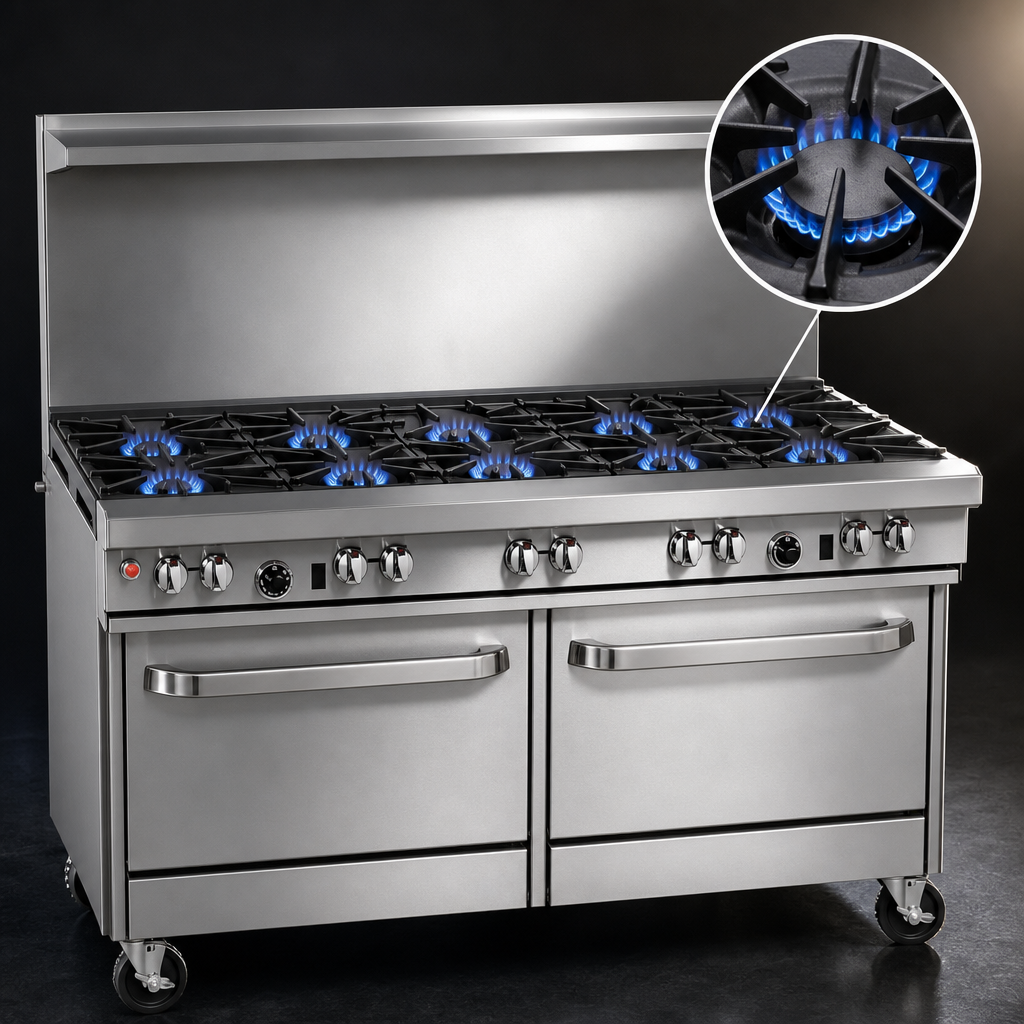

- Ten patented, one-piece 33,000 BTU non-clog cast-iron burners (natural gas) for a blazing 330,000 BTU/hr.
- Removable cast-iron grates; rear sections support stock pots up to 14".

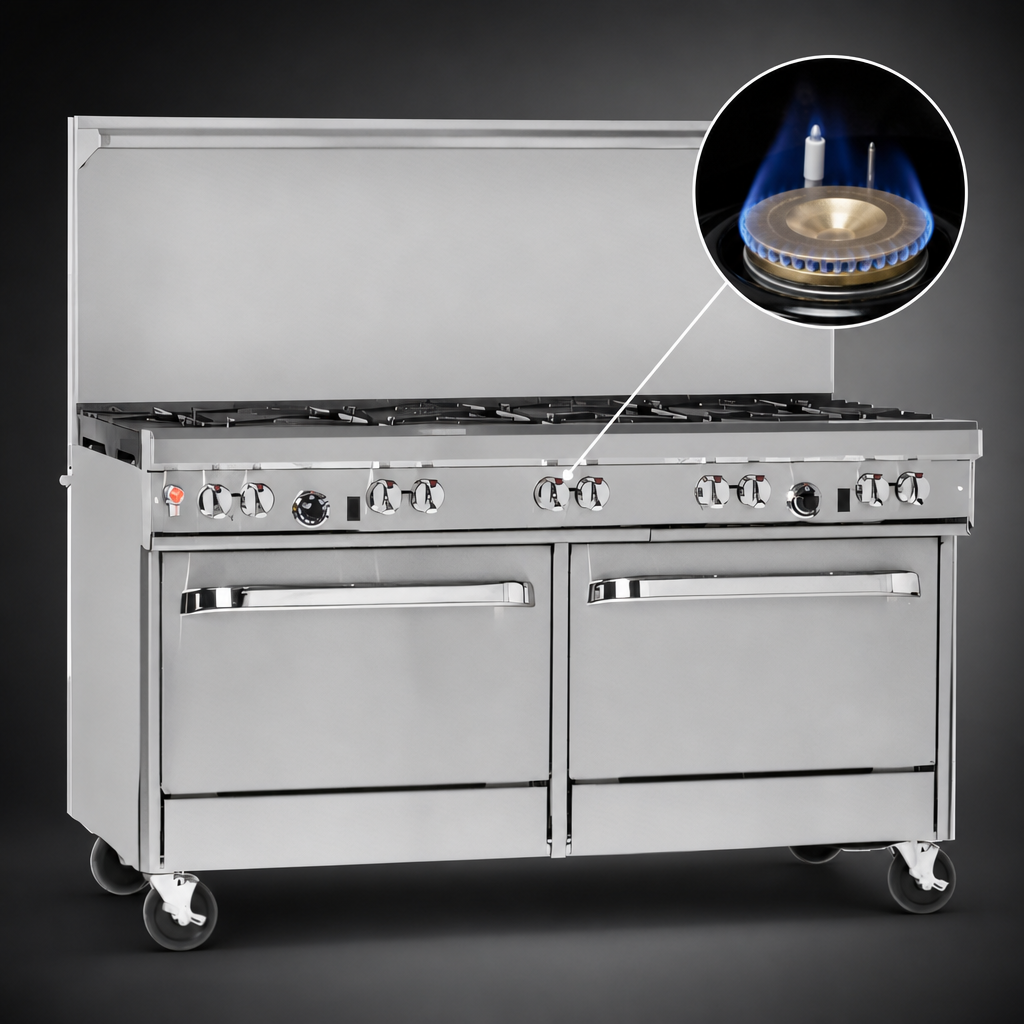

- Standing pilots for instant ignition; front-mounted manual shut-off for entire range.
- Full 27"-deep cooking surface and 4" stainless front rail maximize usable workspace.
- 22-1/2" flue riser with heavy-duty shelf keeps plates warm or holds countertop equipment.
- Twin stainless steel storage cabinets keep pans, lids & smallwares right where you need them (doors available at no charge).
- Factory-installed pressure regulator and single 3/4" gas connection simplify install.
- 6" adjustable stainless legs standard; optional all-swivel locking casters available.
Built for the line
- Stainless steel front, sides and shelf resist corrosion and clean up fast.
- Two full-width pull-out drip trays speed end-of-shift cleanup.
- 37" cooking height reduces operator fatigue during peak service.
- Battery-spark ignition for open tops available (option) when pilotless operation is preferred.
Popular options & accessories
- All-swivel caster kit with front locks
- 3/4" quick-disconnect gas hose (3 ft, 4 ft, or 5 ft) with restraining device
- 5" or 10" low-profile flue riser
- Rear step-up burners, hot-top plates, salamander & cheesemelter mounts and more
Specifications
| Model | 460-CC – Ultimate 60" (10-Burner / Cabinet Base) |
|---|---|
| Cooking surface | 60 3/4" W × 27" D; 37" H to cooktop |
| Overall dimensions | 60 3/4" W × 34" D × 59 1/2" H (with 22 1/2" flue riser) |
| Burners | 10 × cast-iron non-clog; 33,000 BTU each |
| Total input | 330,000 BTU/hr |
| Gas connection | 3/4" NPT rear; factory regulator included Min. inlet pressure: 7" WC NAT, 11" WC LP |
| Base configuration | Two stainless steel cabinets with adjustable shelves (doors optional) |
| Construction | Stainless front, sides, shelf & legs; removable cast-iron grates |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
Need a custom burner mix, griddle plate or charbroiler section? The Southbend Ultimate Series is fully modular – ask us for a quote on the perfect configuration for your menu.
Warranty & support
Every Ultimate range is backed by Southbend’s nationwide network of Authorized Service Agencies. Register your unit and download the full warranty at southbendnc.com/service-and-parts.
