Southbend (Middleby) 4601CC-7R Ultimate Gas Ranges
Southbend (Middleby) 4601CC-7R Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4601CC-7R Ultimate Gas Ranges
Description

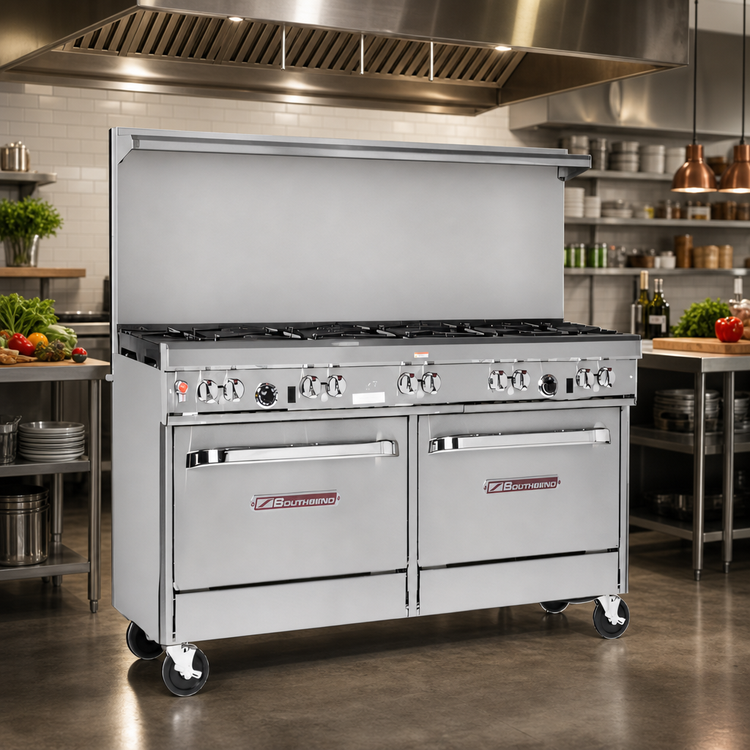

Southbend “Ultimate” 60″ Restaurant Range
4 × 33 kBTU Non-Clog Burners | 4 × 40 kBTU Pyromax Burners | 292,000 BTUBuilt to dominate the rush, the Southbend Ultimate series delivers unmatched cooking power in a rock-solid, all-stainless package. This 60-inch model teams four precision non-clog burners with four high-output Pyromax burners, giving chefs instant access to gentle simmering, rapid boil and wok-worthy heat—all on the same range. Two roomy stainless-steel cabinets and a 22-½″ flue-shelf keep cookware and plating space right where you need them.
Performance & Construction Highlights
- Massive 292,000 BTU total input for fast recovery and high-volume production.

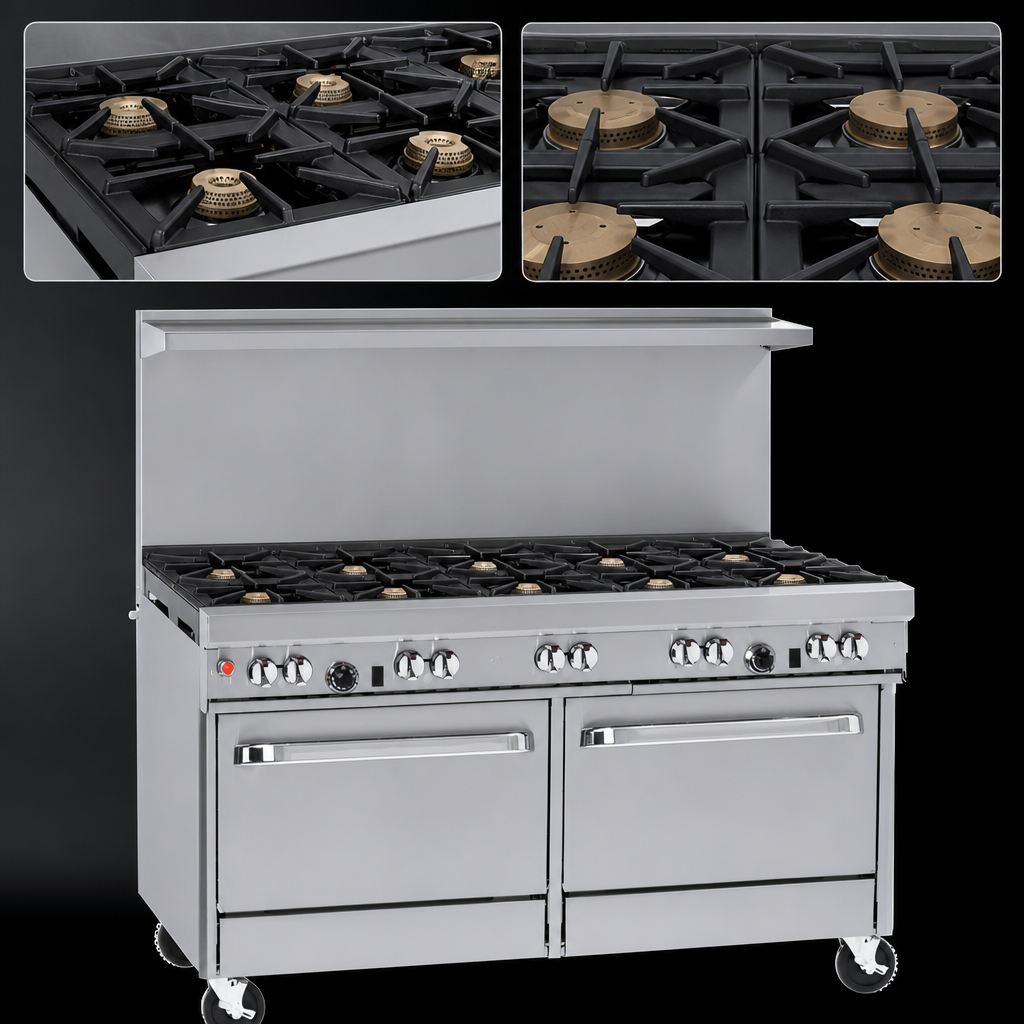

- 4 lifetime non-clog cast-iron burners (33 kBTU ea) handle sauces, sautéing and stock pots up to 14″.
- 4 patented Pyromax burners (40 kBTU ea) on the right side supply blistering heat for woks and rapid boiling.
- Removable, heavy cast-iron grates make cleanup simple and stand up to daily abuse.
- Front-mounted manual gas shut-off and factory-installed regulator streamline installation and safety.

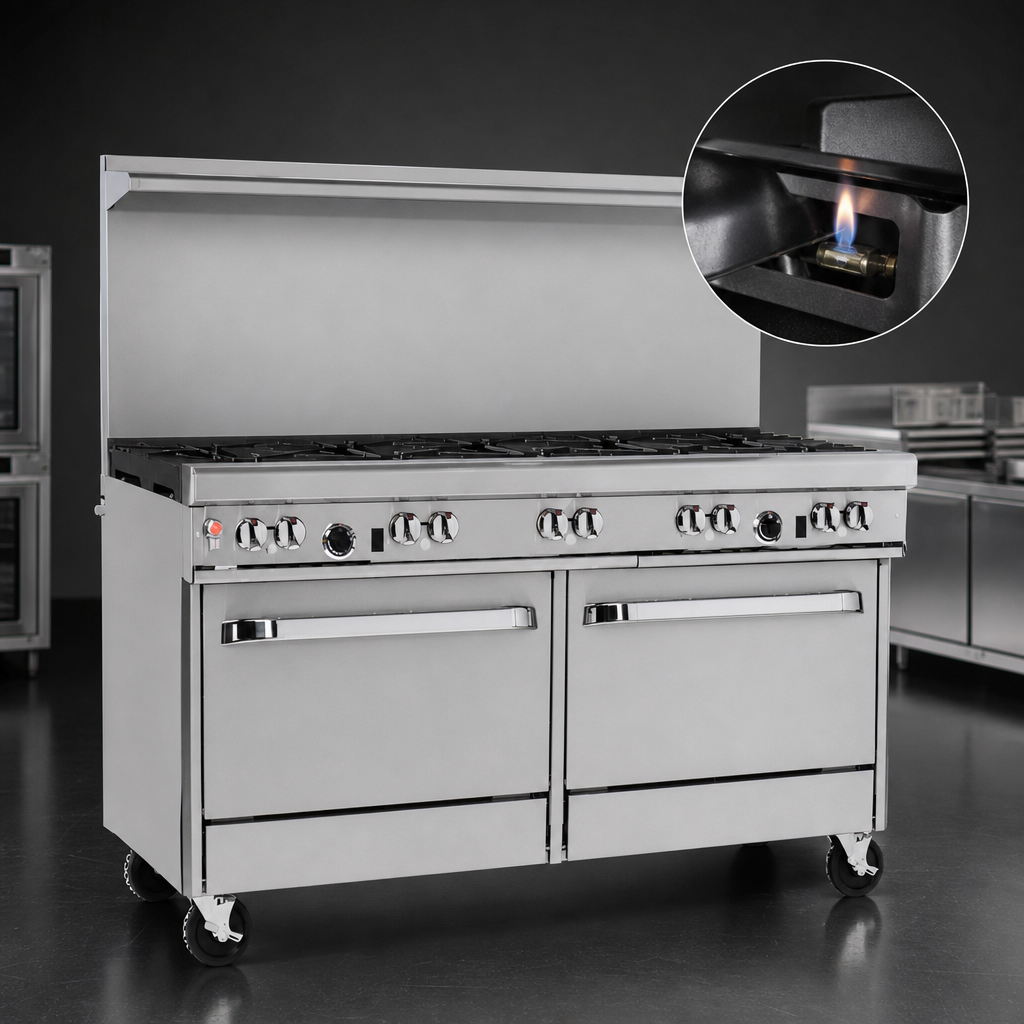

- Standing pilots on every open burner—no electrical hookup required.
- 22-½″ stainless flue riser with heavy-duty shelf adds convenient plating/warming space.
- Dual stainless cabinets below cooktop (optional doors available at no charge) keep essentials within reach.
- Durable stainless front, sides, shelf and 6″ adjustable legs for long-term corrosion resistance.
- Certified CSA & NSF for gas safety and sanitation compliance.
Specifications
| Model | 460-CC |
|---|---|
| Overall width | 60-¾″ / 1543 mm |
| Overall depth | 34″ / 864 mm |
| Cooking height | 37″ / 940 mm |
| Overall height (top of flue) | ≈59-½″ / 1511 mm |
| Cooking surface depth | 27″ |
| Burner configuration | 4 × 33 kBTU non-clog + 4 × 40 kBTU Pyromax |
| Total BTU input | 292,000 BTU/hr (Natural Gas) |
| Gas connection | ¾″ NPT (rear) |
| Minimum inlet pressure | 7″ W.C. Natural / 11″ W.C. LP |
| Standard legs | 6″ stainless, adjustable (casters optional) |
| Base style | (2) Stainless cabinets with adjustable shelves |
| Materials | Stainless steel front, sides, shelf & cabinet base |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
Popular Factory Options
- Stainless cabinet doors (no-charge)
- All-swivel locking caster set
- 3′, 4′ or 5′ quick-disconnect hose w/ restraining device
- 5″ or 10″ low-profile flue riser
- SAL- or CHEESE-series salamander/cheesemelter mounts
- Flame-failure safety system
Installation on non-quarry tile floors may require special footing—contact Southbend for details. To avoid heat damage, do not let oversized cookware hang over the front rail. Intended for commercial use only.
