Southbend (Middleby) 4601CC-6L Ultimate Gas Ranges
Description
Southbend “Ultimate” 60" Gas Restaurant Range – 311,000 BTU

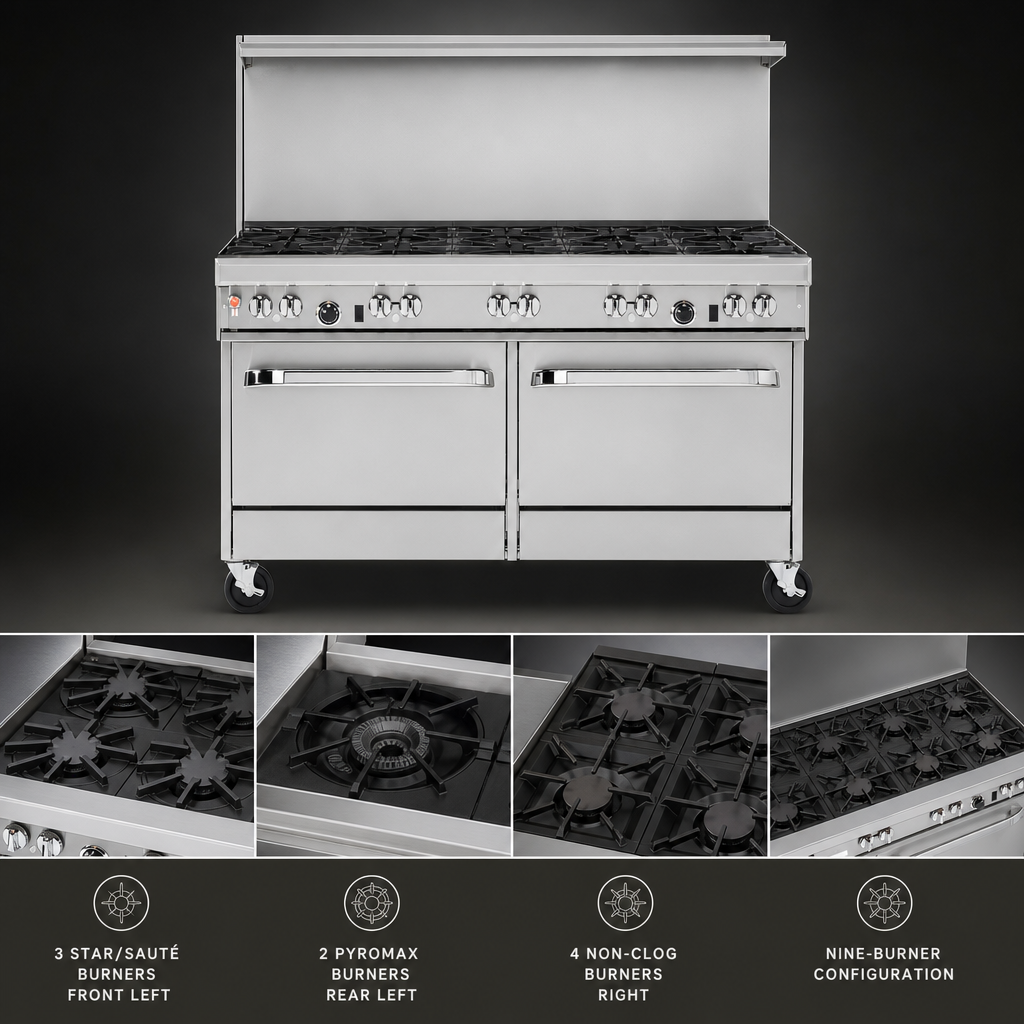

3 Star/Sauté • 2 Pyromax • 4 Non-Clog | Dual Stainless Cabinet Base | CSA & NSFA true powerhouse for high-volume kitchens, the Southbend Ultimate 60" split-top range puts three burner technologies at your fingertips—fast-response Star/Sauté burners, high-output Pyromax burners, and lifetime-clog-free Non-Clog burners—so every cooking style has a dedicated heat source.
Why It Belongs on Your Line
- Hybrid 9-burner layout handles sauté, stock, sear and simmer simultaneously.
- Massive 311,000 BTU/h total input—plenty of firepower for peak service.
- 22-1/2" flue riser & shelf keeps utensils, seasonings and pans within arm’s reach.
- All-stainless exterior (front, sides, rail & shelf) stands up to daily abuse and wipes clean fast.
- Two open cabinets provide built-in dry storage; optional doors are available at no extra cost.
- Front-mounted gas shut-off lets staff kill the entire range instantly in an emergency.

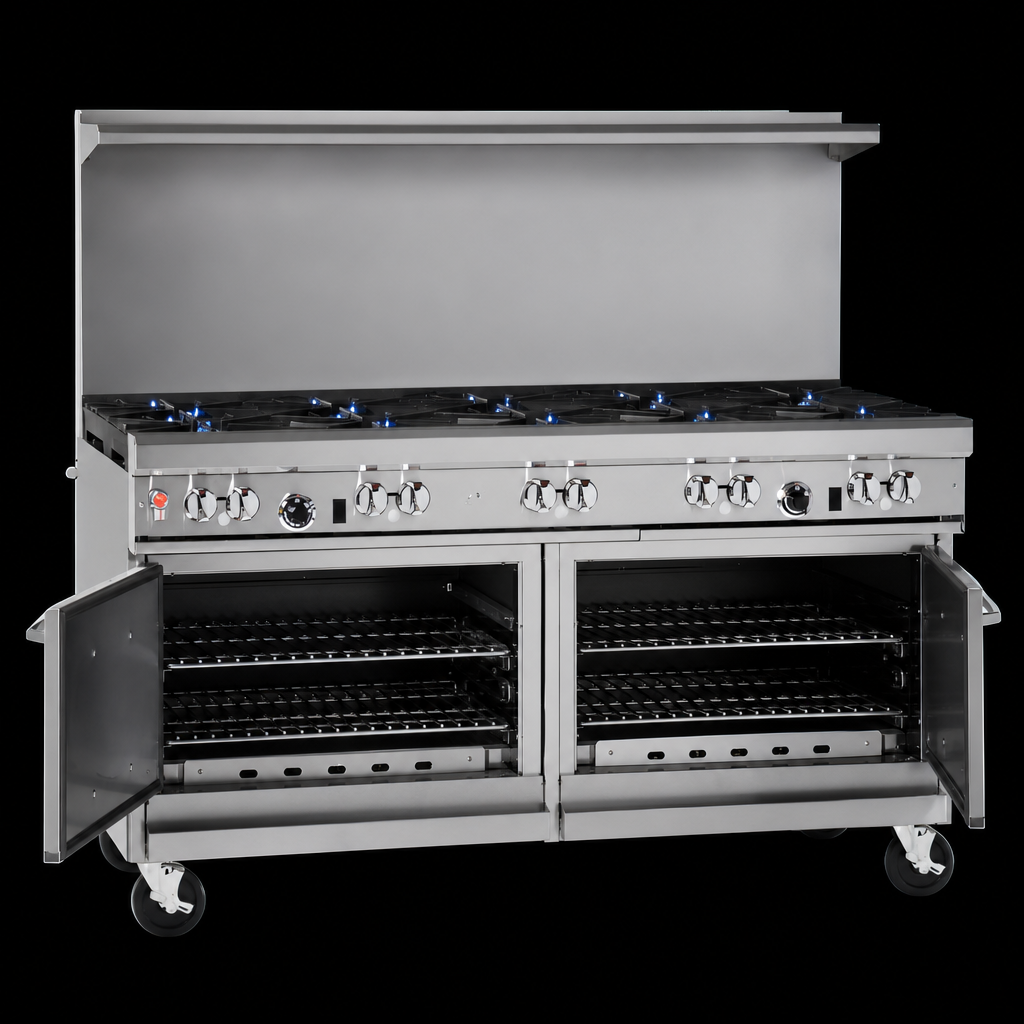

- Standing pilots keep every open burner ready to fire on demand.
- 1-year parts & labor warranty backed by the Southbend nationwide service network.
Technical Specifications
| Overall width | 60 3⁄4" (1543 mm) |
|---|---|
| Depth (front rail to back) | 34" (864 mm) |
| Cooking height | 37" to work surface |
| Overall height (with 22-1/2" riser) |
≈59 1⁄2" |
| Total BTU input | 311,000 BTU/h (Natural or LP – specify) |
| Gas connection | 3⁄4" NPT (factory regulator included) |
| Burner configuration |
3 × 33,000 BTU Star/Sauté (front left) 2 × 40,000 BTU Pyromax (rear left) 4 × 33,000 BTU Non-Clog (right bank) |
| Base | Two stainless storage cabinets (doors optional) |
| Construction | Stainless front, sides & 4" rail; four cast-iron grate sections; 6" adjustable legs |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see details) |
Performance You Can Taste
- Star/Sauté burners deliver even flame distribution for perfect pan work.
- Pyromax burners concentrate 40 K BTU under stockpots or woks for rapid boil & big-pan searing.
- Patented Non-Clog design keeps ports clear of food debris—no downtime for cleaning.
- Extra-wide rear grates accept up to 14" stock pots so you can stage sauces while the line stays hot.
Commercial use only | Southbend reserves the right to change specifications without notice.
