Southbend (Middleby) 4601CC-5R Ultimate Gas Ranges
Description
Southbend Ultimate 60" Restaurant Range – 311,000 BTU
Split-Top Gas Range | 7 × 33 k BTU Non-Clog + 2 × 40 k BTU Pyromax Burners | Dual Cabinet BaseBuilt for kitchens that never slow down, the Southbend Ultimate 60" Range delivers uncompromising power, durability, and flexibility in a single 60-inch footprint. A smart split-top layout pairs rapid-boil Pyromax burners with precision non-clog burners, while two full-width storage cabinets keep sheet pans and supplies right where you need them.
Performance & Convenience Highlights
- Massive 311,000 BTU/hr total output for high-volume cooking

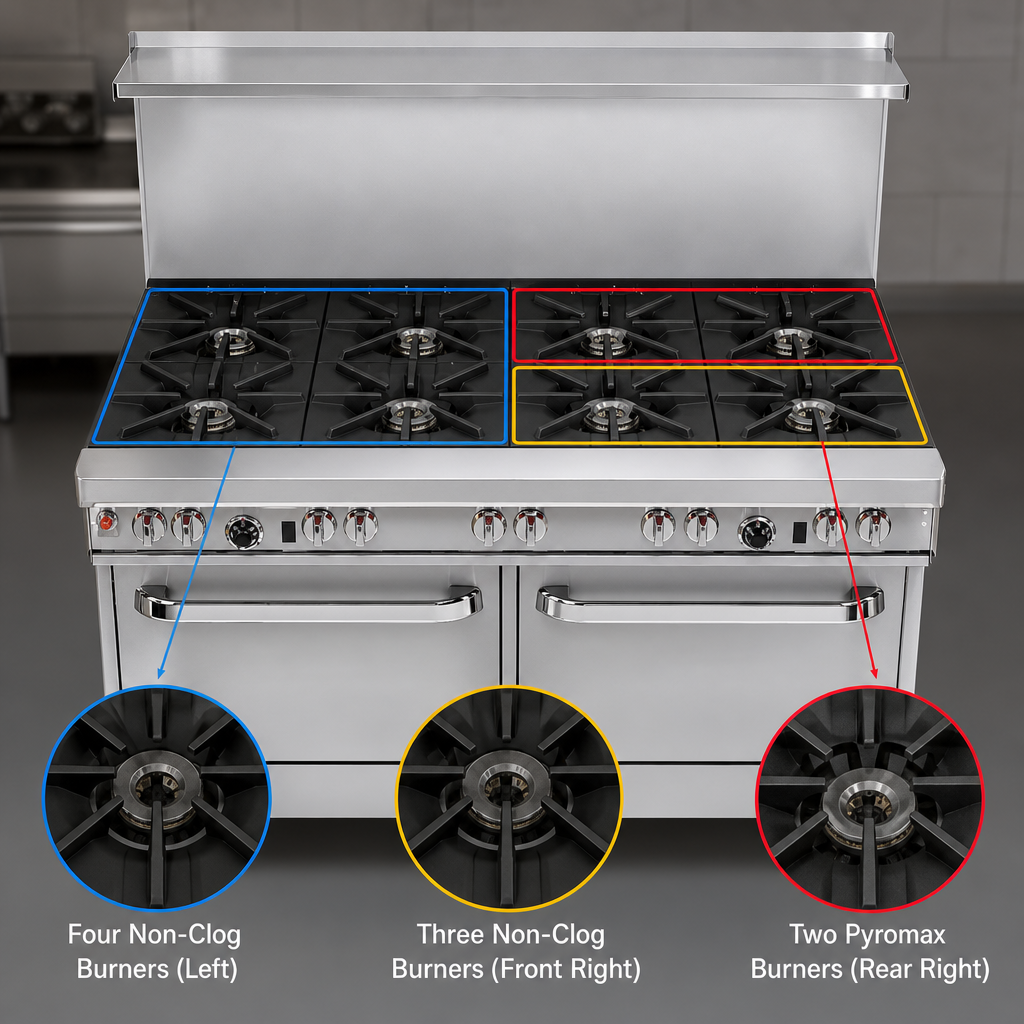

- Burner configuration: 3 non-clog burners (front right) • 2 Pyromax high-output burners (rear right) • 4 non-clog burners (left bank)
- Lifetime, one-piece cast-iron non-clog burners—33,000 BTU each
- Patented Pyromax burners—40,000 BTU each with built-in drip ring
- Heavy-duty cast-iron grates (rear accepts up to a 14" stock pot)
- Front-mounted manual gas shut-off for the entire range
- 22½" stainless flue riser with integrated overshelf for plating & smallwares
- Two stainless steel cabinets (doors included) provide dry storage below the cooktop
- Stainless steel front, sides, rail & shelf plus 6" adjustable stainless legs

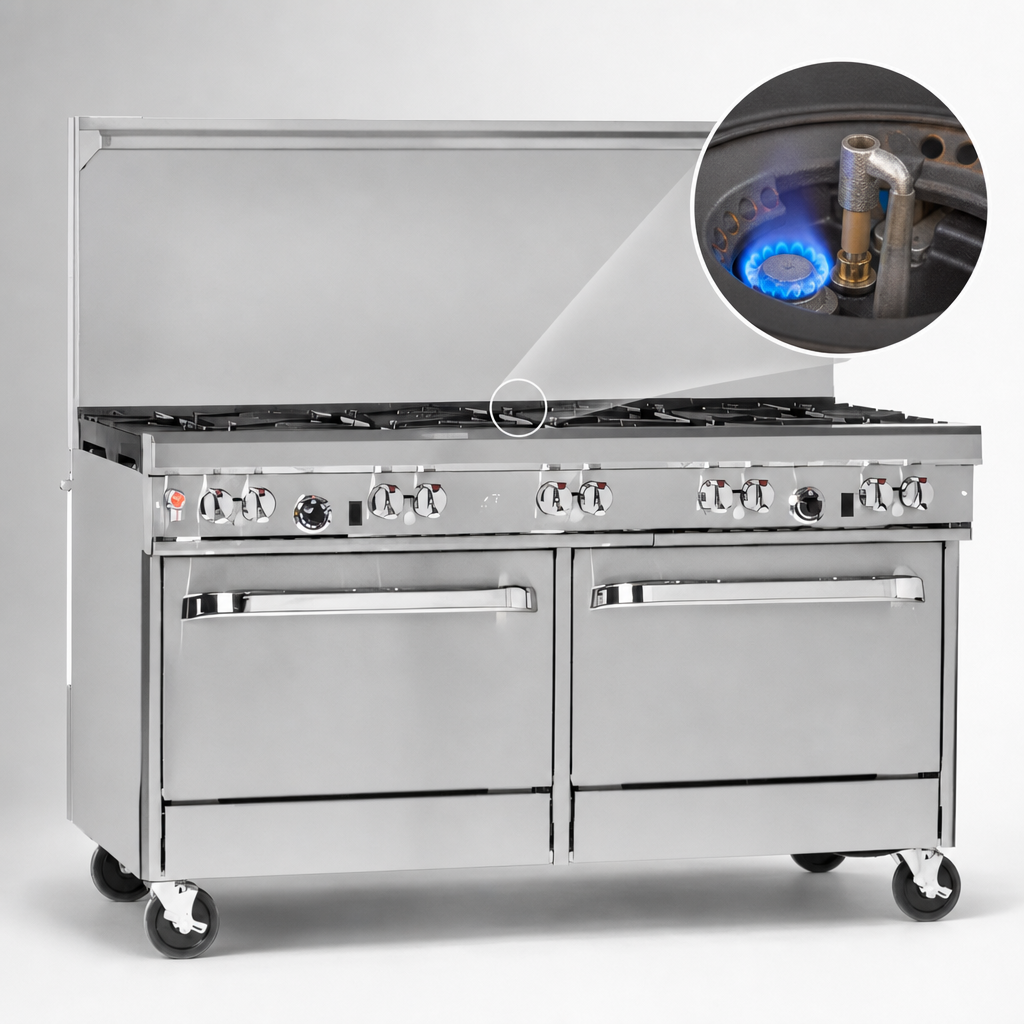

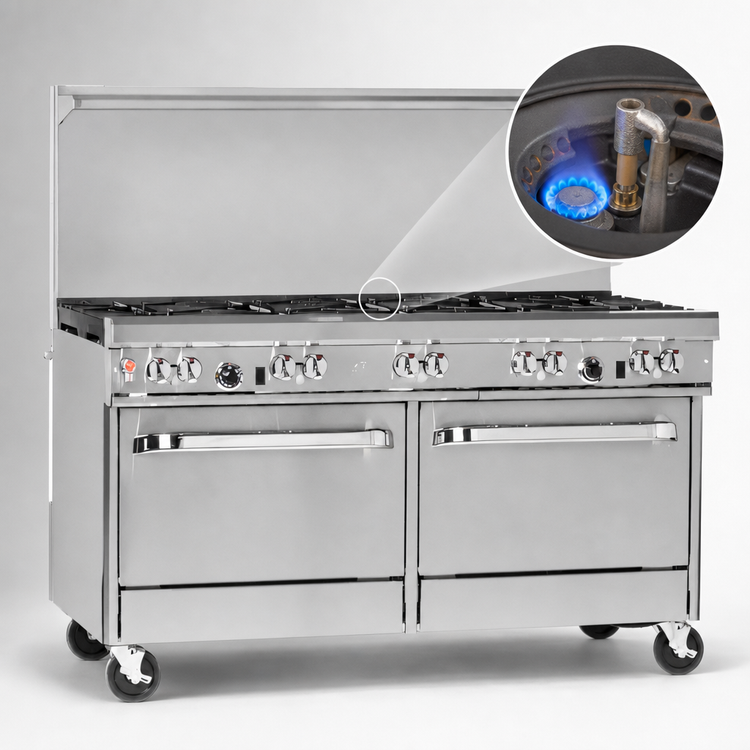

- Factory-installed ¾" pressure regulator, standing pilots for open burners
- CSA & NSF listed for commercial kitchens
Why the Pyromax / Non-Clog Combo Rocks Your Line
- Pyromax burners blast 40 k BTU for lightning-fast boils, stir-fries, or stock reduction on the back line
- Non-clog burners up front offer smooth, even flames for sauté, sauce work, and low-simmer tasks
- Mix-and-match heat zones cut ticket times and boost throughput without extra equipment
Specifications
| Overall width | 60 ¾" / 1543 mm |
|---|---|
| Overall depth | 34" / 864 mm |
| Cook-top height | 37" / 940 mm (on 6" legs) |
| Flue riser | 22 ½" stainless riser with shelf |
| Total BTU | 311,000 BTU/hr (Natural Gas) |
| Burners | 7 × 33 k BTU non-clog | 2 × 40 k BTU Pyromax |
| Base style | Dual stainless storage cabinets |
| Gas connection | ¾" NPT female • Min. inlet 7" W.C. (Natural) |
| Construction | Stainless front, sides, rail & shelf • Cast-iron grates & burners |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (factory authorized service) |
What’s in the Box
- Southbend Ultimate 60" Range with dual cabinet base
- Factory pressure regulator (installed)
- Removable extra-deep drip trays
- Cabinet doors & mounting hardware
- Owner’s manual & warranty registration card
- Install under a properly sized, code-compliant vent hood.
- If a flex-hose is used, it must be ≥¾" I.D. and fitted with a restraining device.
- Limit cookware larger than 12" Ø to rear burners to prevent overheating the front rail.
For commercial use only • Financing available through Middleby Culinary Finance • Consult local codes for gas & ventilation requirements.
