Southbend (Middleby) 4601CC-5L Ultimate Gas Ranges
Description
Ultimate 60" Gas Restaurant Range
Southbend | 9-Burner Cabinet Base | 311,000 BTUEngineered for high-volume kitchens, the Southbend Ultimate Series delivers rugged construction, powerful heat, and smart storage in one 60-inch footprint—freeing your line to cook more, faster.
Key Performance Features- Heavy-duty 60-3/4" wide cooktop with a 37" working height.

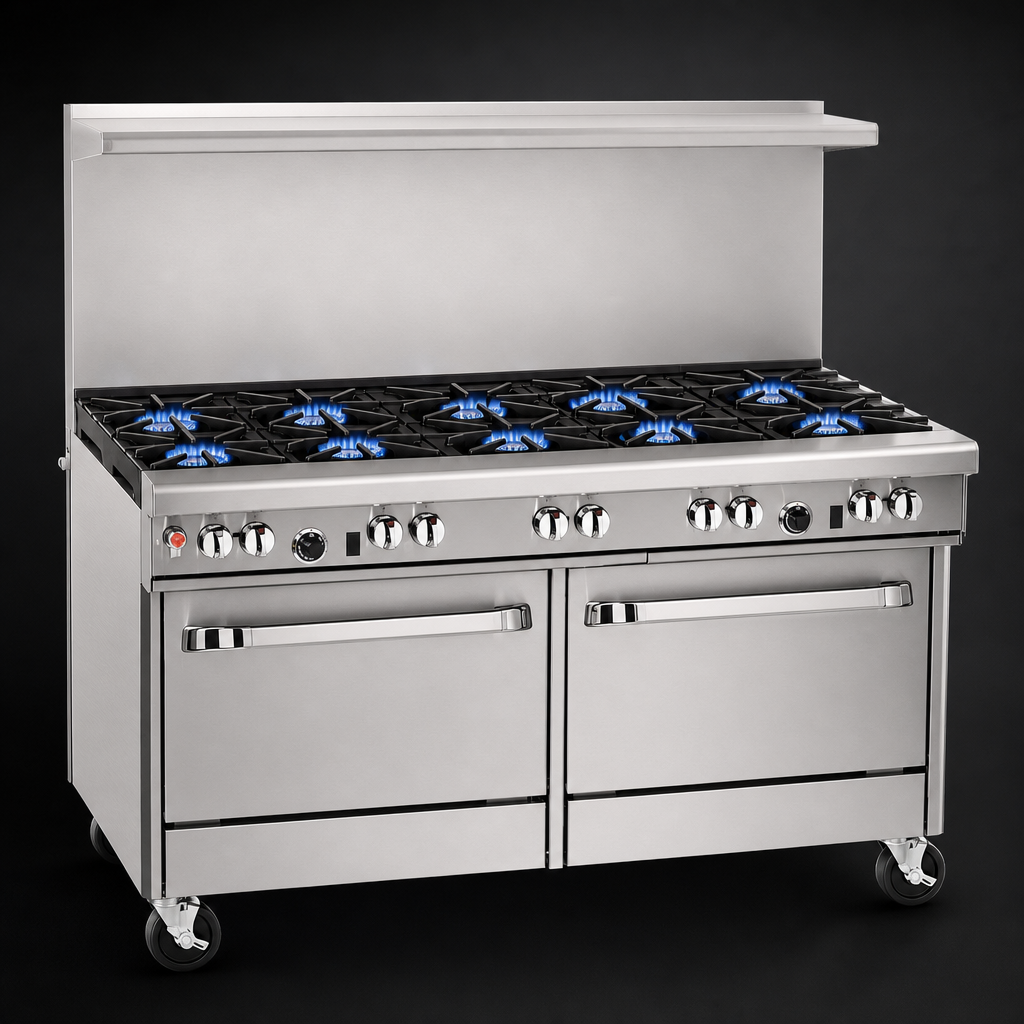

- High-output burner mix for unmatched versatility:
- (3) 33,000 BTU Non-Clog cast-iron burners – front left
- (2) 40,000 BTU Pyromax burners – rear left for rapid boiling & searing
- (4) 33,000 BTU Non-Clog cast-iron burners – full right side
- Total input: 311,000 BTU/hr (Natural Gas).

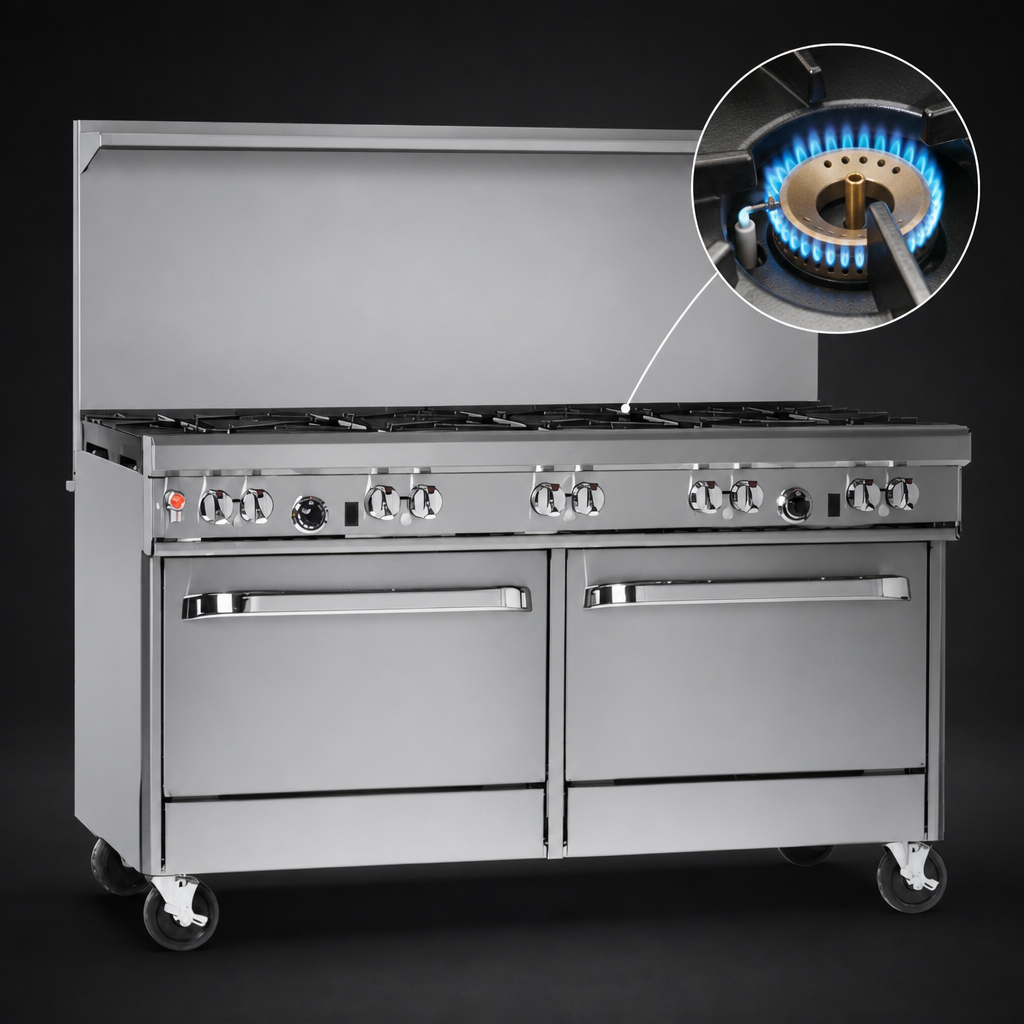

- Standing pilots for instant lighting on every open burner.
- Standard removable cast-iron grates—rear sections handle 14" stock pots with ease.
- 22-1/2" stainless flue riser with solid shelf for plating, pans, or seasonings.
- Two full-size stainless cabinet bases (each with adjustable shelf) keep cookware at arm’s reach.
- Front-mounted manual gas shut-off & factory-installed 3/4" regulator for quick service access.
- All-stainless front, sides, 4" front rail & high-shelf plus 6" adjustable stainless legs.
- CSA gas & NSF sanitation certified—built and approved for demanding commercial use.
- Backed by Southbend’s 1-year parts & labor warranty.
| Overall Width | 60-3/4" (1543 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Flue Riser Height | 22-1/2" (572 mm) |
| Total BTU Input | 311,000 BTU/hr |
| Burner Details | 7 × 33,000 BTU Non-Clog | 2 × 40,000 BTU Pyromax |
| Gas Connection | 3/4" NPT (rear) |
| Minimum Inlet Pressure | Natural Gas 7" W.C. |
| Base Configuration | Dual stainless cabinets with shelves |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend terms) |
Installation on non-quarry tile floors or use of cookware >12" diameter on front burners may require special considerations. Consult the factory or an authorized installer for guidance.
