Southbend (Middleby) 4601CC-3TR Ultimate Gas Ranges
Description

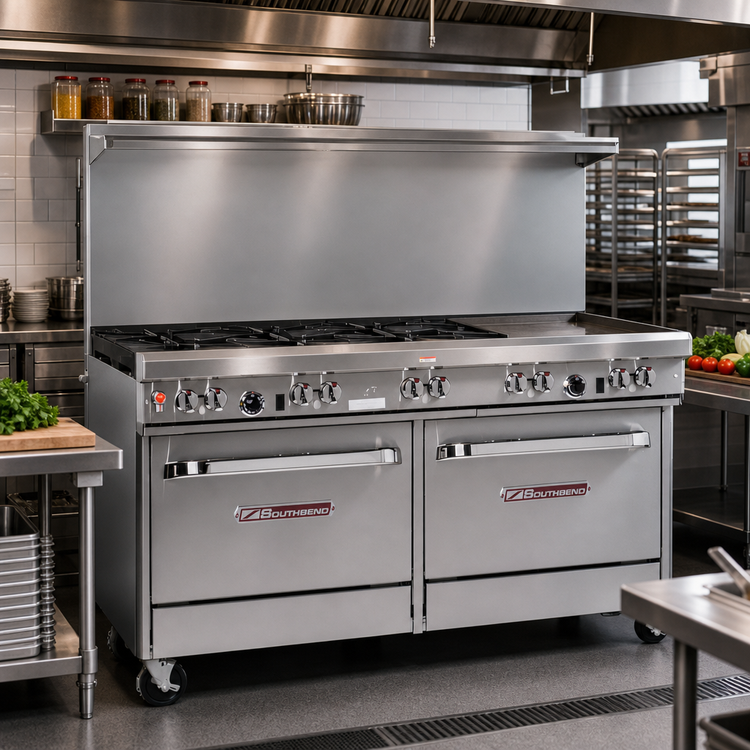

Southbend “Ultimate” 60" Gas Restaurant Range
4-Burner / 36" Thermostatic Griddle – Cabinet BaseBuilt for the busiest commercial kitchens, the Southbend Ultimate 60" Restaurant Range combines heavy-duty open-top performance with the versatility of a full-width griddle and the convenience of two stainless steel storage cabinets. At 196,000 BTU, this single platform lets you sauté, sear, pan-fry, grill, hold and finish—without sacrificing valuable line space.
Why You’ll Love It
- Four 33,000 BTU non-clog burners – patented, one-piece cast-iron design resists grease build-up and delivers a true, even flame.
- 36" right-side griddle (64,000 BTU) – ½" polished steel plate with thermostatic controls (175 °F-550 °F) for precise, repeatable results.
- Instant access storage – twin cabinet bases keep sheet pans, utensils or smallwares right where you need them.
- 22½" flue riser with integrated shelf – perfect for spices, utensils or plated product staging.
- All-stainless exterior – fronts, sides, shelf and 4" front rail are easy to wipe down and built to last.
- Factory-installed ¾" regulator & front gas shut-off for quick, code-compliant installation and safe daily operation.
- Standing pilots (open tops) & battery spark ignition (bases) keep you cooking even during power interruptions.
- Certified cCSAus, CSA Flame, CSA Star and NSF for use across North America.
- Backed by a 1-year parts & labor warranty with nationwide Southbend Authorized Service support.
Specifications
| Model / Series | Ultimate 60" Restaurant Range (Gas) |
|---|---|
| Cooking Surface | 27" deep, 4 cast-iron grate sections + 36" griddle (right) |
| Open Burners | 4 × 33,000 BTU non-clog cast-iron (132,000 BTU) |
| Griddle | 36" W × 24" D, ½" smooth steel plate, thermostatic, 64,000 BTU |
| Total Input | 196,000 BTU/hr (Natural or LP – field convertible) |
| Controls | Individual burner valves & snap-action thermostats (175-550 °F) |
| Base | (2) Stainless steel storage cabinets with adjustable shelves |
| Gas Connection | ¾" NPT (rear left standard; moves opposite griddle if required) |
| Overall Dimensions | 60.75" W × 34" D × 59.5" H (to shelf) Cooking height: 37" |
| Clearances | Combustible: 10" sides & rear Non-combustible: 0" sides, rear |
| Legs | 6" adjustable stainless steel (casters optional) |
| Certifications | cCSAus, CSA Star, CSA Flame, NSF |
| Warranty | 1-year limited parts & labor |
Popular Options (sold separately)
- Swivel casters with front locks
- Cabinet doors (no-charge option)
- 5" or 10" low-profile flue risers
- Rear step-up burners or Pyromax™ high-output burners
- Quick-disconnect hose & restraining kit (3 ft, 4 ft, 5 ft)
- Limit oversized cookware (12" Ø+) to the rear grates to avoid heat damage to the front rail.
- Install on quarry tile, cement, or natural stone flooring—or contact Southbend for alternate floor-mounting recommendations.
- Always operate beneath a properly sized, vented hood in accordance with local codes.
Upgrade your cookline with the power, flexibility and legendary durability of a Southbend Ultimate Range—order yours today and keep every ticket on time.
