Southbend (Middleby) 4601CC-3GR Ultimate Gas Ranges
Description

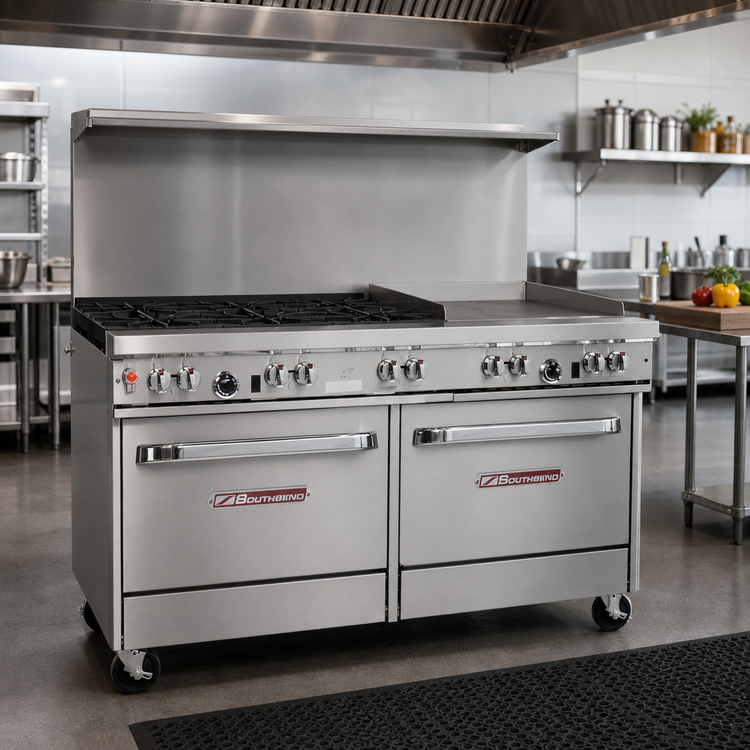

Southbend Ultimate 60" Restaurant Range – 4 Burners & 36" Right-Side Griddle
Model family: 460 Series | Gas | 196,000 BTU totalBuilt for busy commercial kitchens that refuse to compromise on performance, the Southbend Ultimate 60" Restaurant Range combines high-output non-clog burners with a generous 36" griddle and rugged stainless-steel construction. From sauté pans to breakfast classics, this single piece of equipment delivers the versatility, durability and power you need every shift.
Highlights at a Glance

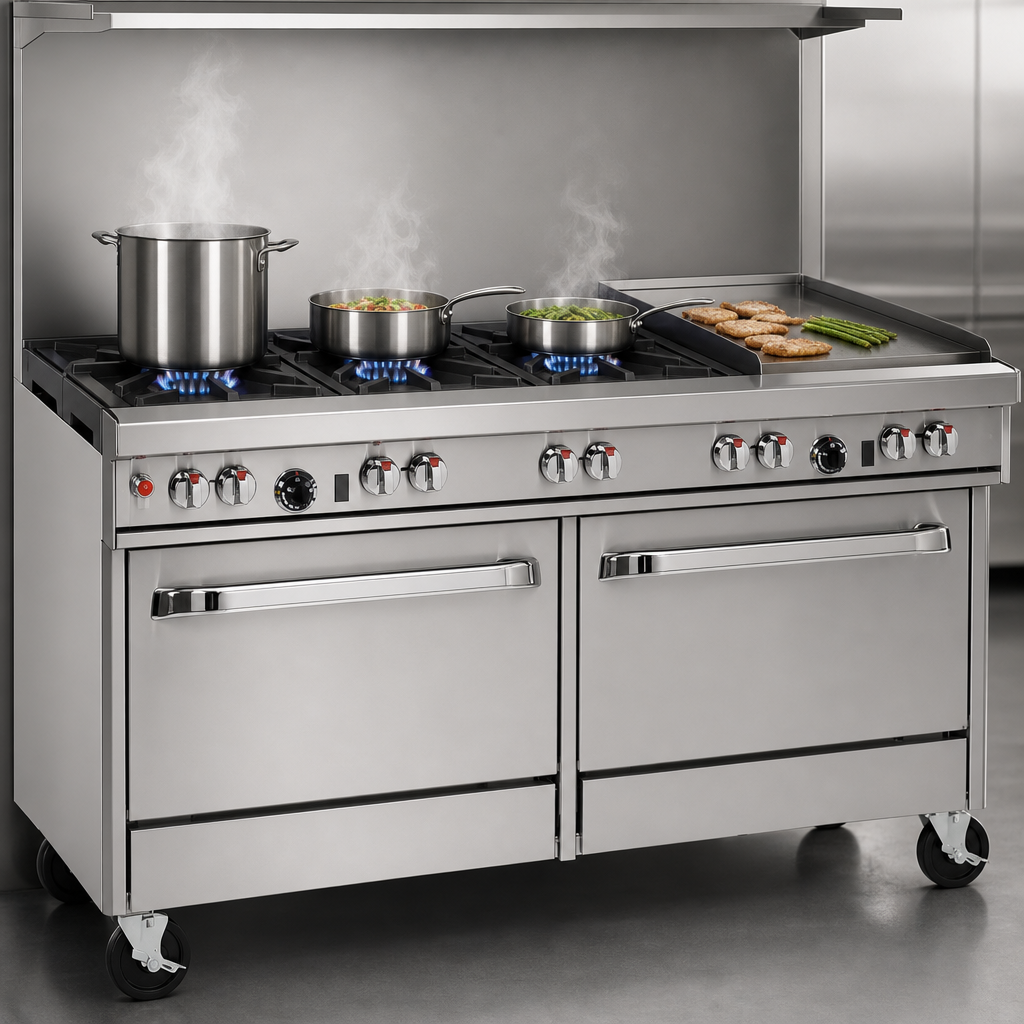

- 4 non-clog cast-iron burners – 33,000 BTU each; removable grate tops handle stock pots up to 14".
- 36" right-side griddle – ½" polished steel cooking surface (manual control) delivers 64,000 BTU for burgers, pancakes and more.
- Total output 196,000 BTU (natural gas) to keep up with peak-time demand.
- Two open cabinet bases – keep sheet pans, stock or smallwares close at hand; optional doors available at no charge.
- 22½" flue riser with heavy-duty shelf – perfect for plating or storing cookware without sacrificing workspace.
- Stainless steel front, sides, rail & shelf – easy to clean and built to withstand daily punishment.
- Front-mounted gas shut-off & factory regulator for fast, safe maintenance.
- 6" adjustable stainless legs – meet local code for cleaning under the unit (casters optional).
- cCSAus, CSA Flame, CSA Star & NSF certified for commercial safety and sanitation.
- Backed by 1-year parts & labor warranty from Southbend.
Technical Specifications
| Cooktop width × depth | 60.75" × 27" |
|---|---|
| Overall depth | 34" |
| Cooktop height | 37" |
| Height w/ flue riser | 59.5" |
| Open burners | 4 × 33,000 BTU non-clog cast-iron (132,000 BTU) |
| Griddle section | 36" manual, ½" steel plate, 64,000 BTU |
| Total BTU input | 196,000 BTU (natural gas) |
| Gas connection | ¾" NPT (female), rear – min. 7" W.C. NAT / 11" W.C. LP |
| Base configuration | Dual stainless open cabinets (optional doors available) |
| Construction | Stainless steel front, sides, 4" front rail, riser shelf & adjustable legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year limited parts & labor (commercial use) |
Popular Factory Options & Accessories
- Stainless cabinet doors (no-charge).
- 5" or 10" low-profile flue risers (no shelf).
- All-swivel locking casters.
- ¾" quick-disconnect hose (3-, 4- or 5-ft) & restraining device.
- Cheesemelter or salamander mounts.
Options must be ordered with the range; contact us for details and lead time.
